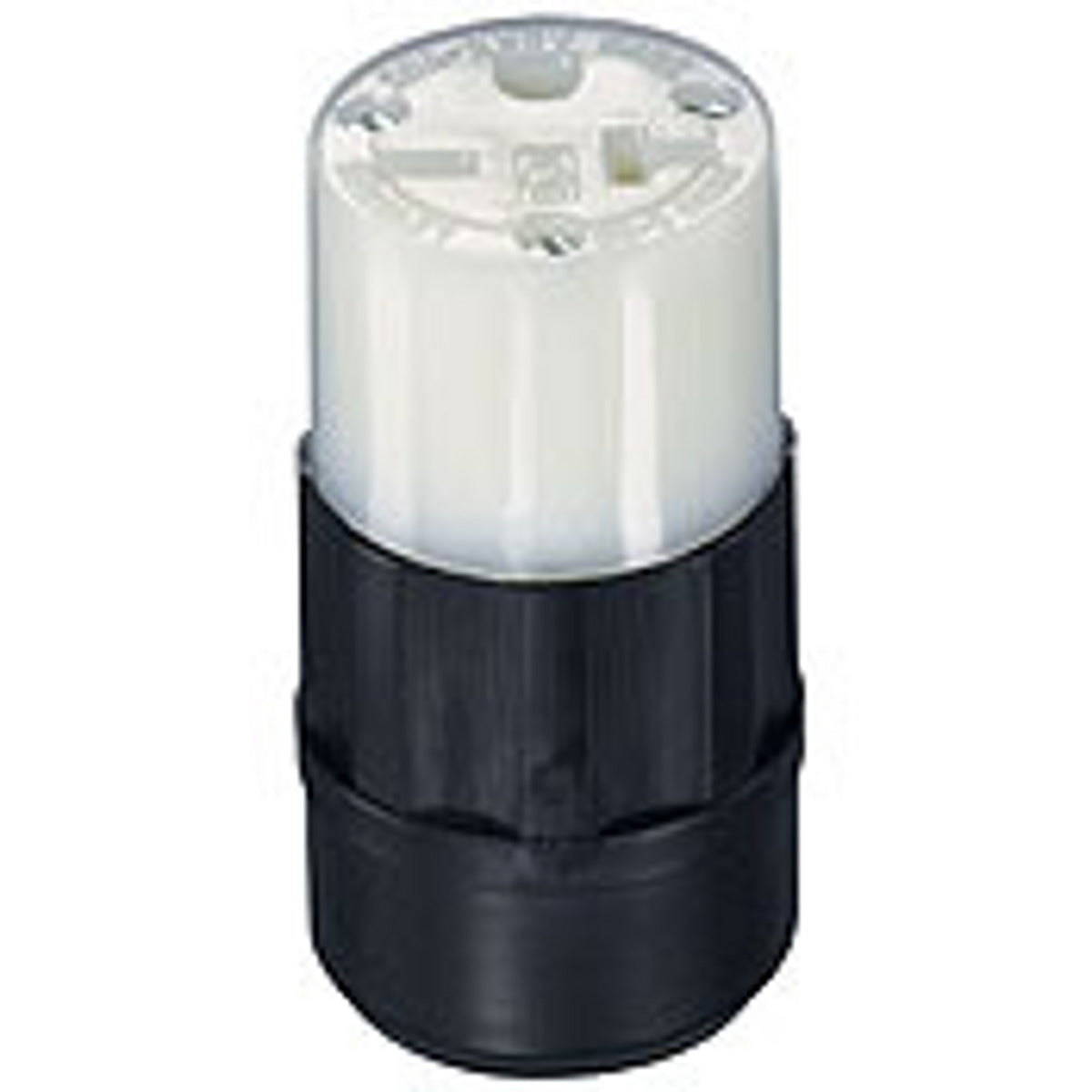

Leviton 5469-C connector straight blade 20 amp 250 volt

Brand: LEVITON
SKU: 5469-C
Availability: Out Of Stock
$62.55
$62.55
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Leviton 5469-C is a 20 Amp, 250 Volt connector with a straight blade, designed for industrial use. Constructed from rugged nylon, it resists impact, sunlight, chemicals, and rough handling. This grounding connector features solid one-piece brass contacts for enhanced conductivity. Ideal for industrial applications.

  • Impact, chemical, and corrosion resistant
  • Solid one-piece brass contacts for better conductivity
  • Ergonomic, fluted-body design with radial gripping edge

Product Highlights

Industrial grade straight blade connector with robust construction and reliable performance.

Product Information

Standard Information

  • Brand: LEVITON
  • Manufacturer Part Number: 5469-C
  • Country of Origin: Mexico
Technical Specifications
Voltage
250 Volts
Amperage Capacity
20 Amps
Material
Nylon
Power Source
Wired Electric
Included Components
5469-C
Type
Polarized
Constructional Feature
Impact/Chemical/Corrosion Resistant
Configuration
6-20R
Voltage Rating
250V
Current Rating
20 Ampere
Number of Poles
2
Number of Wires
3
Ground Type
Grounding
Cord Size
0.245 to 0.7 Inch
Grade
Industrial
Blade/Contact Material
Brass
Assembly Screw Material
Zinc Plated Steel
Temperature Rating
-40 to 60 Deg C
Amperage Rating
20 A
NEMA Rating
6-20R
Terminal Type
Screw
Cord Diameter
0.25 to 0.685 in
Operating Temperature
-40°C to 60°C
Dielectric Voltage
Withstands 2000V per UL498
Terminal Accom.
18-10 AWG
Flammability
Rated HB or better UL94
Mounting
Cable
Wire Size
18-10;.250-.685
Number Of Poles
2 Pole
Number Of Wires
3 Wire
Environmental Conditions
Flammability (Rated V-2 per UL94);Operating Temperature Range (-40 to +60 DEG C)
Environment
Dry
Blade Type
Solid Brass
Contact Material
Solid Brass,Solid Brass
Conductor Size
18-10 AWG
