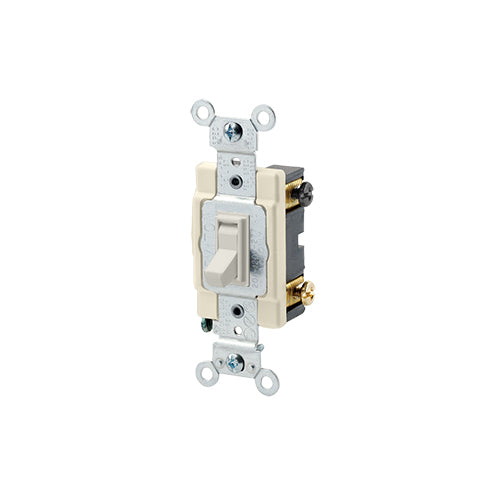

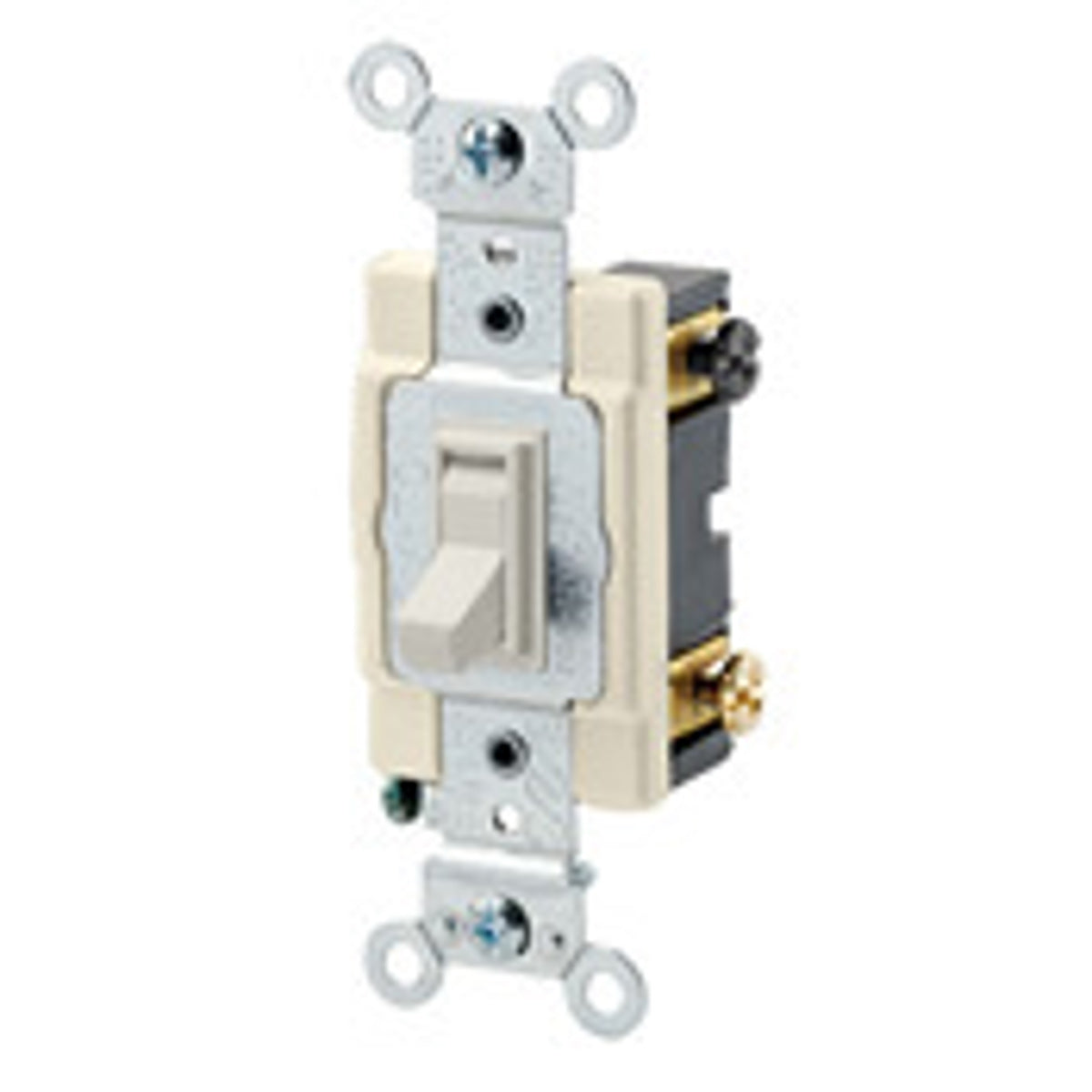

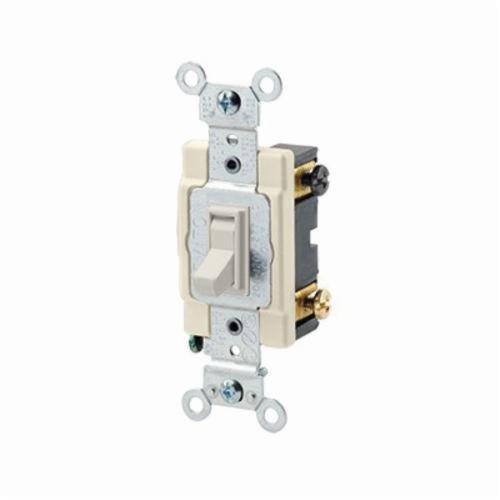

Leviton 54504-2T 4-Way Framed AC Quiet Toggle Switch, 120/277 VAC, 15 Amp

Product Description

The LEVITON 54504-2T is a grounding AC quiet toggle switch, 4-way framed, 120/277 VAC, 15 A, with 1/2, 2 hp power. Designed for outstanding reliability and top performance in commercial settings. Ideal for municipal facilities, government buildings, hospitals, schools, and universities.

• Large head triple drive combination screws for fast wiring installation
• Heavy gauge, rust resistant steel mounting strap
• Accepts no 14 to 12 AWG copper or copper clad wire

Product Highlights

This Leviton commercial specification grade switch offers a large selection of wiring options and other features.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: 54504-2T
• Country of Origin: MX

Technical Specifications

• Type: 4-Way Framed
• Voltage Rating: 120/277 VAC
• Amperage Rating: 15 A
• Power Rating: 1/2, 2 hp
• Actuator: Toggle
• Material: Thermoplastic Housing, Polycarbonate Toggle
• Mounting: Surface
• Enclosure: NEMA WD-1/WD-6
• Manufacturer: LEVITON
• Terminal Type: Side Wire
• Contact Rating: 1/2 hp at 120 VAC, 2 hp at 240 to 277 VAC
• Environmental Conditions: V2 Flammability Rated Per UL94
• Wiring: Side
• Wall Plate Included: No
• Application: Commercial, Specification Grade
• Approval: UL 20, CSA C22.2, NOM 057
• Grounding Type: Grounding
• Strap Material: Steel
• Contact Material: Silver-Cadmium
• Wire Size: 14 to 12 AWG (Side)
• Voltage: 120/277 VAC
• Termination: Side Wire
• Screw Terminal Torque: 14-18 in-lbs
• Number of Poles: 4
• Operating Temperature: -40 to +120 DEG C
• Connection: Side Wired
• Standard: NEMA (WD-1 and WD-6);ANSI (C-73);NOM (057);CSA C22.2 No. 111 (File 152105);UL Fed Spec WS896E (File E7458);UL Standard (UL 20)
• Grounding: Grounding
• Terminal Accommodations: 14-12 AWG
• Temperature Rating: -40 to 65 deg C
• Standards: UL 20 Listed, CSA C22.2 No.111, 152105 Certified, Federal Specification: WS896E, NOM 057 Certified, ANSI C-73, NEMA WD-1, WD-6
• Maximum Load Capacity: 1/2 hp at 120 Volt, 2 hp at 240 Volt
• Terminal Connection: Side Wired
• Current Rating: 15 Amps
• Maximum Current: 15 Amps
• Dielectric Strength: 1500 Volt
• Insulation Resistance: 20
• Operating Voltage: 120 Volts (AC)
• Operation Mode: ON-OFF
• Smart Home Compatibility: Not Smart Home Compatible
• Compatible Devices: Standard electrical devices and systems using 120/277V AC power
• Control Type: Power
• Number of Positions: 4
• Controller Type: Almond
• Switch Type: Toggle
• Circuit Type: 4-way
• Contact Type: Normally Open
• Connector Type: Clamp
• Specification Met: Ul
• Product Name: 15 Amp-120/277 Volt AC, Side wired AC quiet switch
• Product Type: Switch
• Application/Usage: Colleges, Cultural Institutions, Department stores, Government buildings, Hospital and Health Care Facilities, Houses of Worship, Malls, Municipal facilities, Office Buildings, Schools, Universities
• Input Voltage: 120V AC, 277V AC
