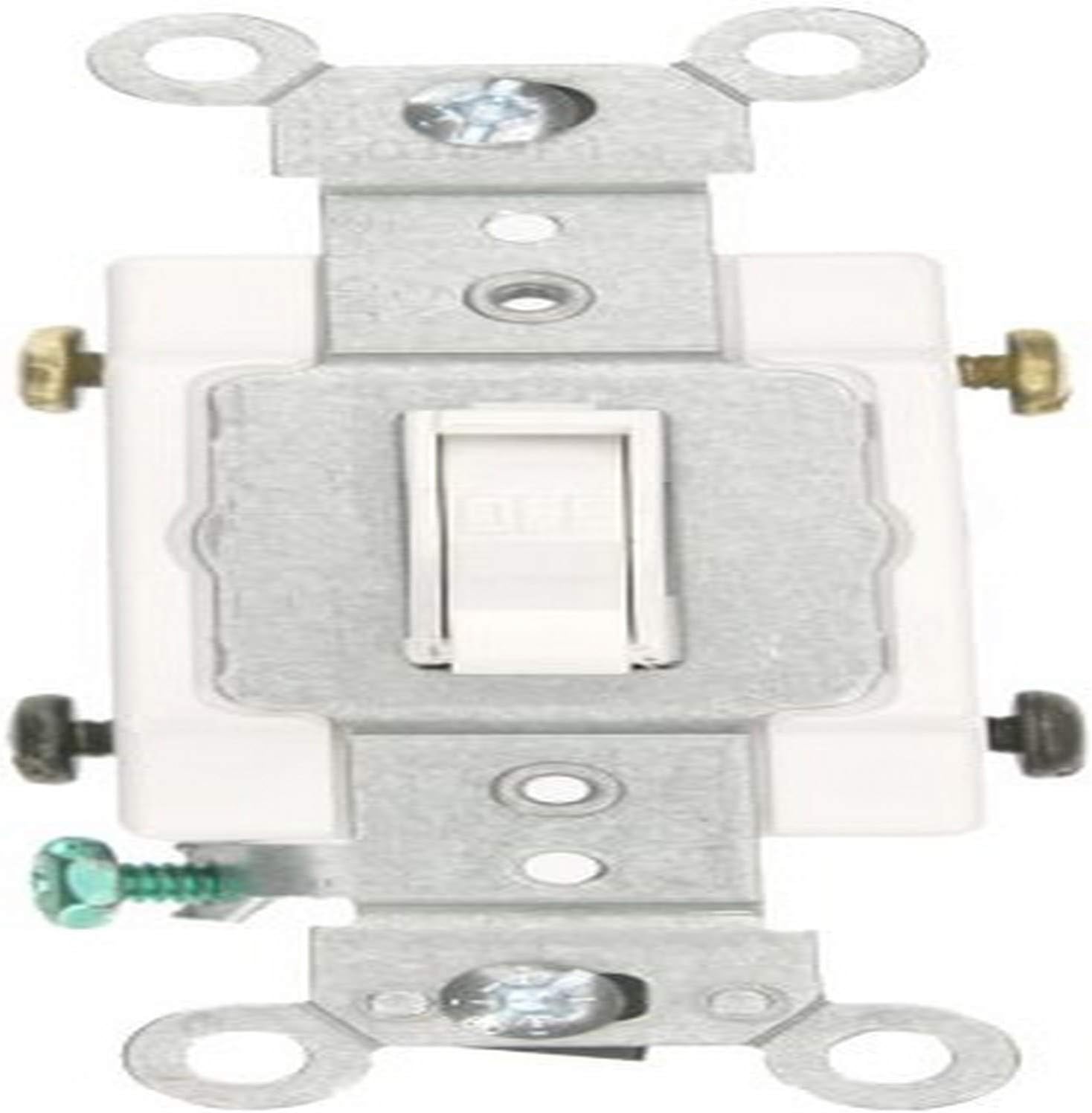

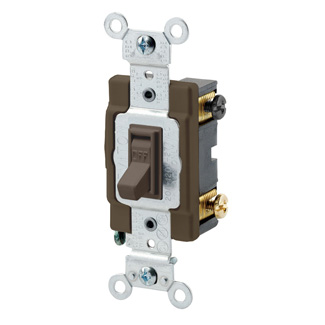

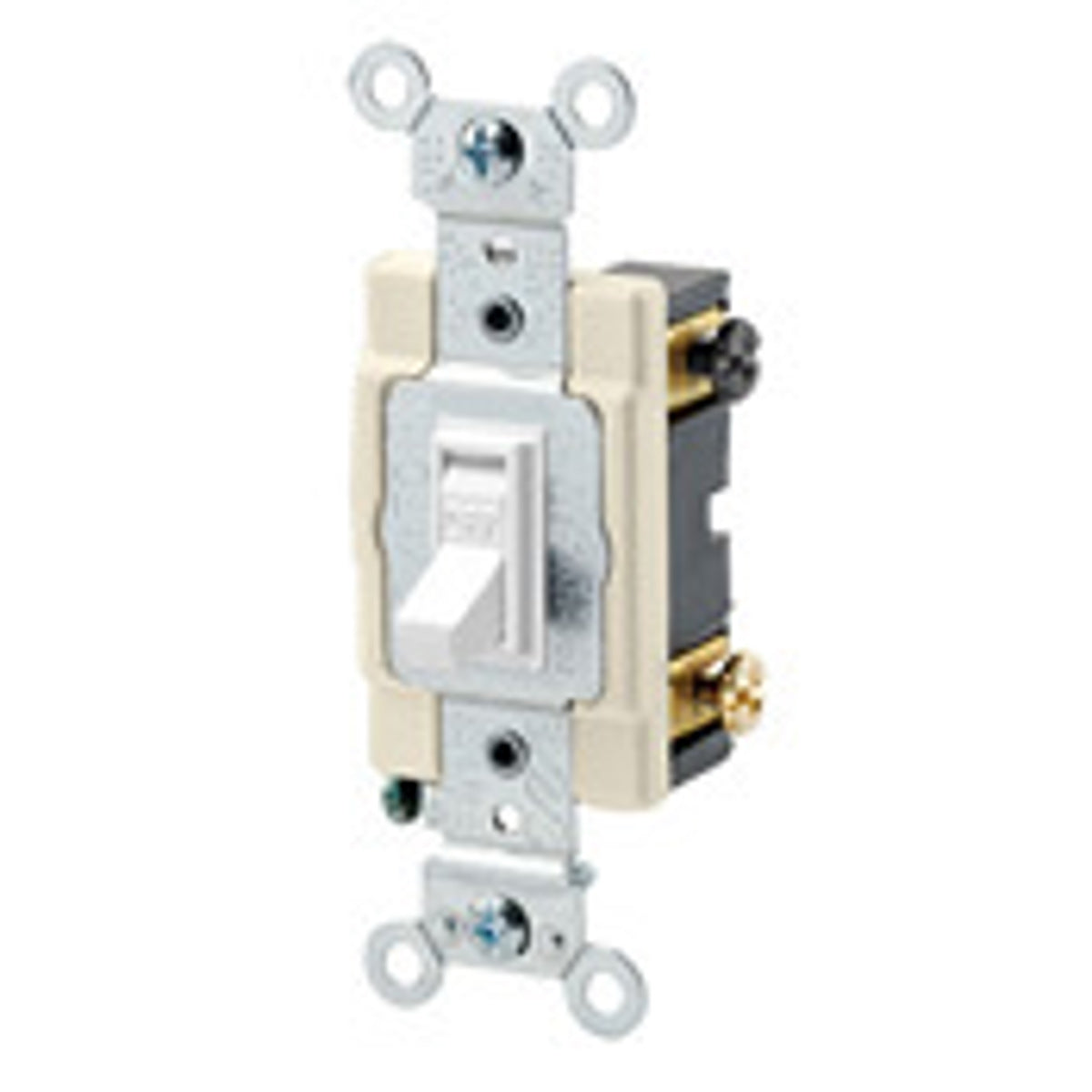

Leviton 54502-2W Toggle framed double-pole AC quiet switch 15 Amp (1 Each)

Product Description

Leviton 54502-2W is a commercial-grade framed toggle double-pole AC quiet switch rated 15 Amp for 120/277 Volt circuits. The switch provides on-off operation with quick-connect terminals, brass contacts, and plastic construction; it is designed for box mounting in commercial applications and meets multiple industry standards. Operating temperature ranges from -40 to +120 �C and dielectric withstand is specified for high-voltage isolation.

• 15 Amp, 120/277 Volt double-pole toggle switch with on-off operation
• Quick-connect terminals, brass contacts, plastic (thermoplastic class) construction
• Commercial specification grade with certifications including CSA, NEMA, ANSI, and UL

Product Highlights

Commercial-grade double-pole framed toggle switch, 15 A at 120/277 V, quick-connect terminals, -40 to +120 �C operating range

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: 54502-2W
• Country of Origin: Mexico

Technical Specifications

• Brand: Leviton
• Manufacturer: Leviton
• Manufacturer Part Number: 54502-2W
• Voltage Rating: 120/277 Volt
• Current Rating: 15 Amp
• Number of Poles: 2
• Switch Type: Double-pole
• Switch Style: Toggle (framed)
• Operation: On-Off
• Connector Type: Quick connect
• Contact Material: Brass
• Material: Plastic (thermoplastic)
• Mounting Type: Box mounting
• Application: Commercial
• Operating Temperature: -40 to +120 �C
• Dimensions: 3.2 x 1.6 x 0.5 inches
• Weight: 0.1 lb (1.6 ounces)
• Horsepower Rating: 1/2 HP at 120 VAC; 2 HP at 240/277 VAC
• Dielectric Withstand Voltage: 1500 V for 1 minute
• Temperature Rise: Maximum 30 �C rise
• Terminal Accommodation: 14-12 AWG
• Flammability Rating: V-2 per UL 94
• Grade: Commercial (Specification Grade)
• Grounding: Self grounding
• Certifications: CSA C22.2 No.111; NEMA WD-1/WD-6; ANSI C-73; NOM 057; UL standards (including UL 20 and UL Fed Spec WS-896E)
