Leviton 5369-CA Black Angle Nema 5-20R Connector

Product Description

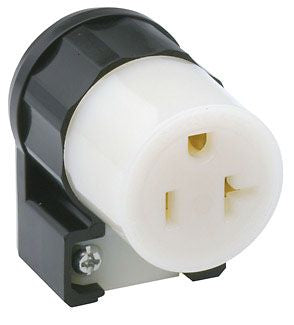

The LEVITON 5369-CA is a black angle connector wired outlet rated for NEMA 5-20R service. It accepts a 20-amp, 125-volt straight-blade plug and routes the cord at a right angle to the device face, reducing strain in tight or shallow spaces. The angle body makes it well suited for installations where a standard in-line connector would create a sharp bend or clearance problem. Licensed electricians and experienced maintenance techs typically install this type of connector on power distribution cords, portable equipment drops, and extension assemblies used in commercial and light industrial environments.

The 5369-CA is used where a female cord connector is needed on the load end of a flexible power cord rated for NEMA 5-20R applications. Typical scenarios include replacement connector ends on shop equipment drop cords, stage and event power runs, and equipment power pigtails in facilities maintenance. The right-angle profile keeps cord routing flat against walls or enclosures, which is useful in rack, panel, or bench installations where space is limited.

Key Features

• NEMA 5-20R configuration accepts standard 20-amp, 125-volt straight-blade plugs
• Right-angle body reduces cord bend radius in confined or shallow mounting areas
• Black housing for easy identification in multi-connector runs
• Cord connector style mounts directly to the flexible supply cord, no box required

Compatibility

Designed as an OEM-style replacement or new-install cord connector for NEMA 5-20R applications on 20-amp, 125-volt flexible power cord assemblies.

Installation Notes

Installation should be performed by a qualified electrician in accordance with NEC Article 400 governing flexible cords and cables. De-energize and lock out the circuit before disassembling any existing connector. The cord clamp or strain relief must be properly tightened to prevent conductor pull-out at the terminal screws. Do not use this connector on circuits exceeding its rated voltage or amperage.

Technical Specifications

• NEMA Configuration: 5-20R
• Body Orientation: Right angle
• Color: Black
• Package Dimensions (L x W x H): 14.8 inches x 5.0 inches x 12.3 inches
• Weight: 9.1 pounds
• UPC: 07847780761

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: 5369-CA
