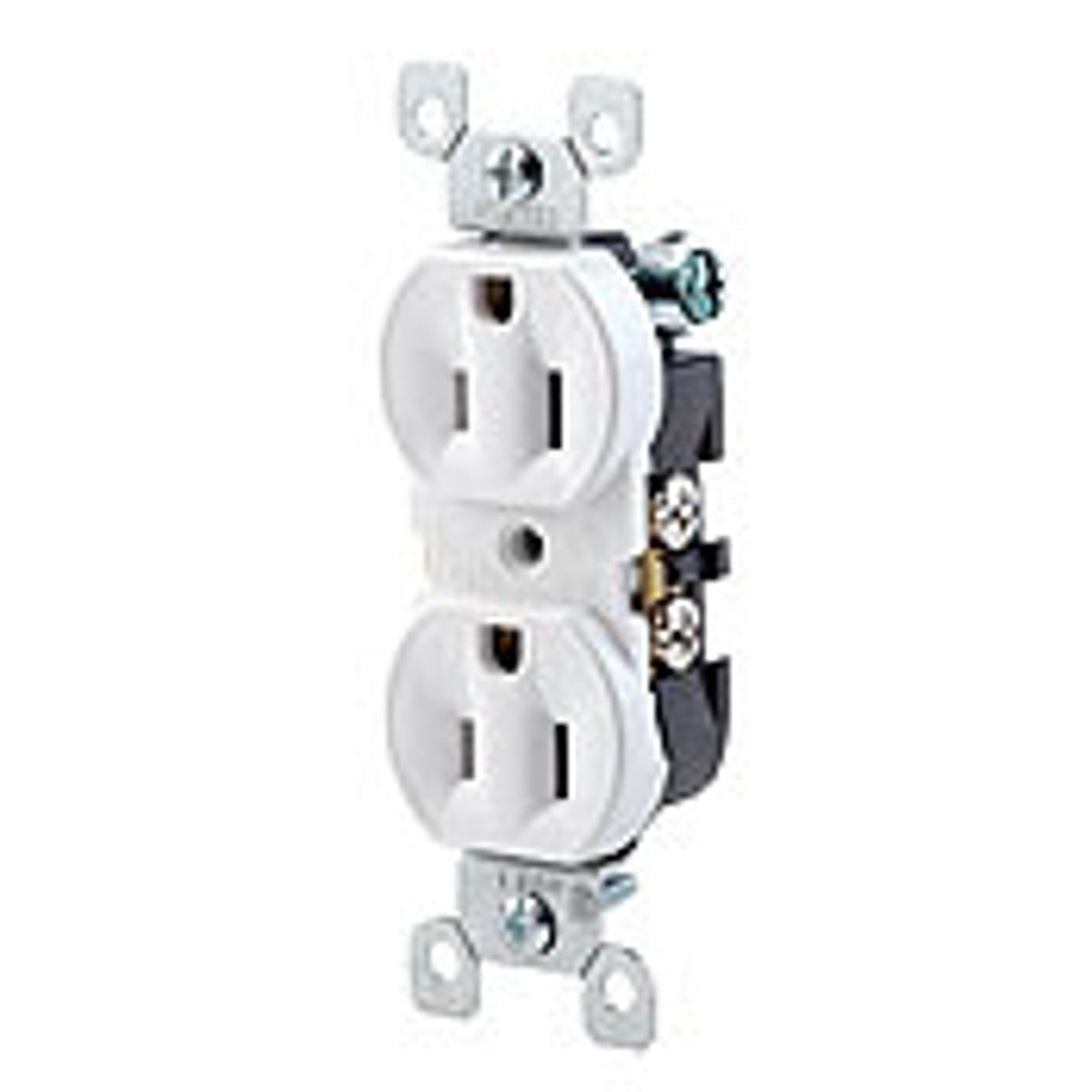

Leviton 5320-TCP 15 Amp, 125 Volt, Duplex Receptacle

Product Description

The Leviton 5320-TCP is a 15 Amp, 125 Volt duplex receptacle, residential grade, grounding, with all screws backed out. This straight blade receptacle is designed for residential applications. It features a thermoplastic construction and a shallow build for maximum wiring room. It is also equipped with break-off plaster ears and tabs for easy alignment and two circuit conversion.

• 15 Amp
• 125 Volt
• Duplex Receptacle

Product Highlights

The Leviton 5320-TCP is ideal for residential applications. It offers easy installation and reliable performance.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: 5320-TCP
• Country of Origin: US

Technical Specifications

• Voltage: 125 Volts
• Material: Copper,Steel
• Compatible Devices: All
• Batteries Included?: No
• Batteries Required?: No
• Item Model Number: 5320-TCP
• Part Number: 216-05320-TCP
• Size: Leviton
• Amperage: 15 A
• NEMA Rating: 5-15R
• Grade: Commercial Grade
• Temperature: -40 to 60 deg C
• Terminal Type: Quick-Wire Push-In/Side Wire Terminal
• Thermoplastic: Thermoplastic
• Poles: 2
• Wires: 3
• Receptacle Type: Duplex Grounding Straight Blade
• Voltage Rating: 125 VAC
• Number of Poles: 2 Pole
• Number of Wires: 3 Wire
• Wire Size: 14 AWG
• Mounting: Wallplate
• Standard: NOM Certified (057);CSA Certified (File LR-406);UL Listed 498;UL Listed 1561
• Environmental Conditions: Flammability (Rated V-2 per UL94)
• Connection: Quickwire Push-In and Side Wired
• UPC: 078477274927
• GTIN: 00078477274927
• Country Of Origin: US
• Manufacturer Item Status: Active
• Manufacturer Name: Leviton
• Brand Name: Leviton
• Alternative Part Number: 9276592
• Amperage Rating UOM: A
• Temperature Rating UOM: deg C
• Voltage Rating UOM: VAC
• Feature: All Screws Backed Out Contractor Pack
• Termination: Quickwire Push-In & Side
• Face Material: Thermoplastic
• Body Material: Thermoplastic
• Sub Brand: RESIDENTIAL RECEPTACLES
• Applications: Commercial
• TC Connection: Quickwire Push-In and Side Wired
• Certifications: UL
• Conductor Size: 14 AWG
• Number of Outlets: 2
• Special Features: Grounding, 2-Year Limited Warranty, Made in USA
• Item Type: Straight Blade;Duplex Outlet
• Wattage: Light Almond
• Cross Reference Products: 270LA
• UNSPSC: 39121406
• Energy Star Flag: No
• RoHS Flag: Contact manufacturer
• Terminal Connection: Quickwire Push-In and Side Wired
• Strap Material: Steel
• Style: Duplex
• Type: Impact-Resistant
• Standards: UL Listed
• Approval: UL, CSA
• Configuration: 5-15R
• Constructional Feature: Impact Resistant
• Ground Type: Grounding
• Wiring: Push-In, Side
• Torque Range: 14 – 18 in.-lbs
• CSA C22.2 No. 42: File 152105; Class 6233-01
• NOM: NOM Certified
• UL 498: File E13399
• Power Plug Type: Type A - 2 pin (North American)
• Connector Type: Plug-In
• Smart Home Compatibility: Not Smart Home Compatible
• Total Power Outlets: 1
• ECCN: EAR99
• Ground: Grounded
• No. of Wires: 3
• Rated Voltage: 125V AC
• Color Family: Tan
