Product Description

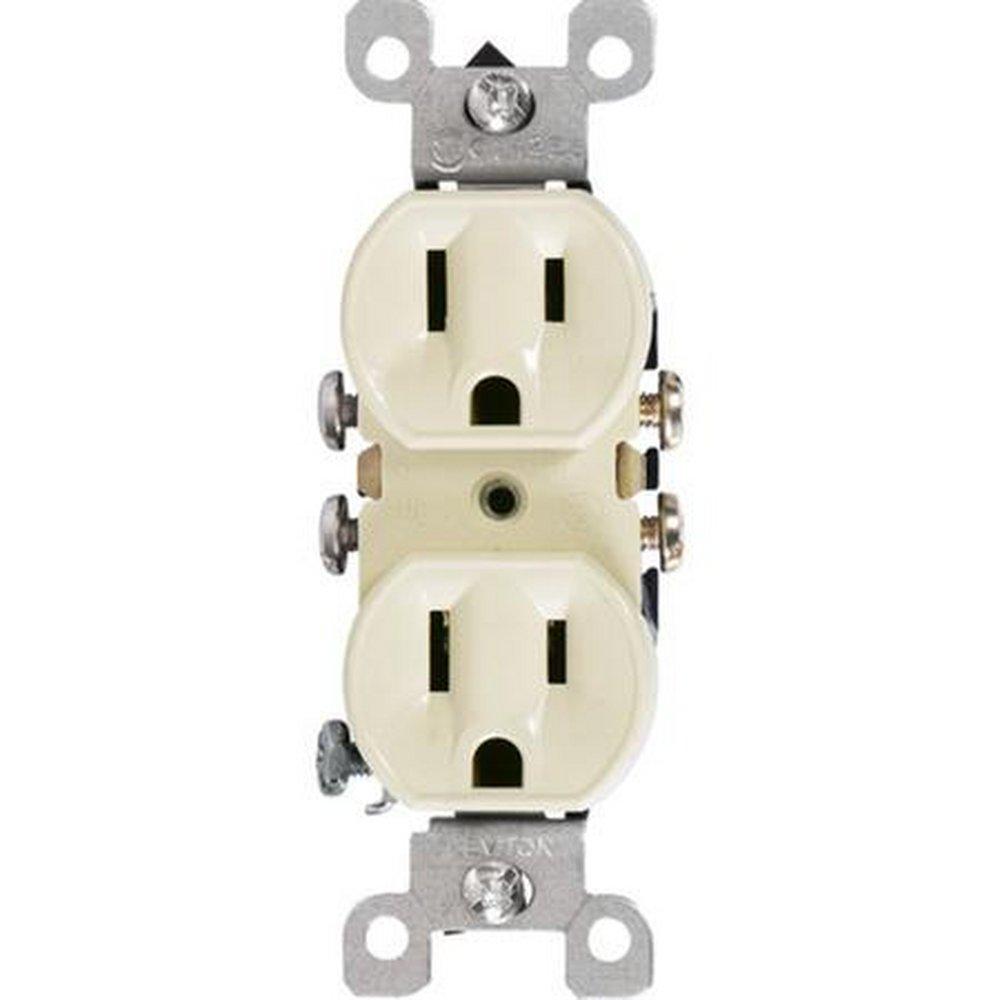

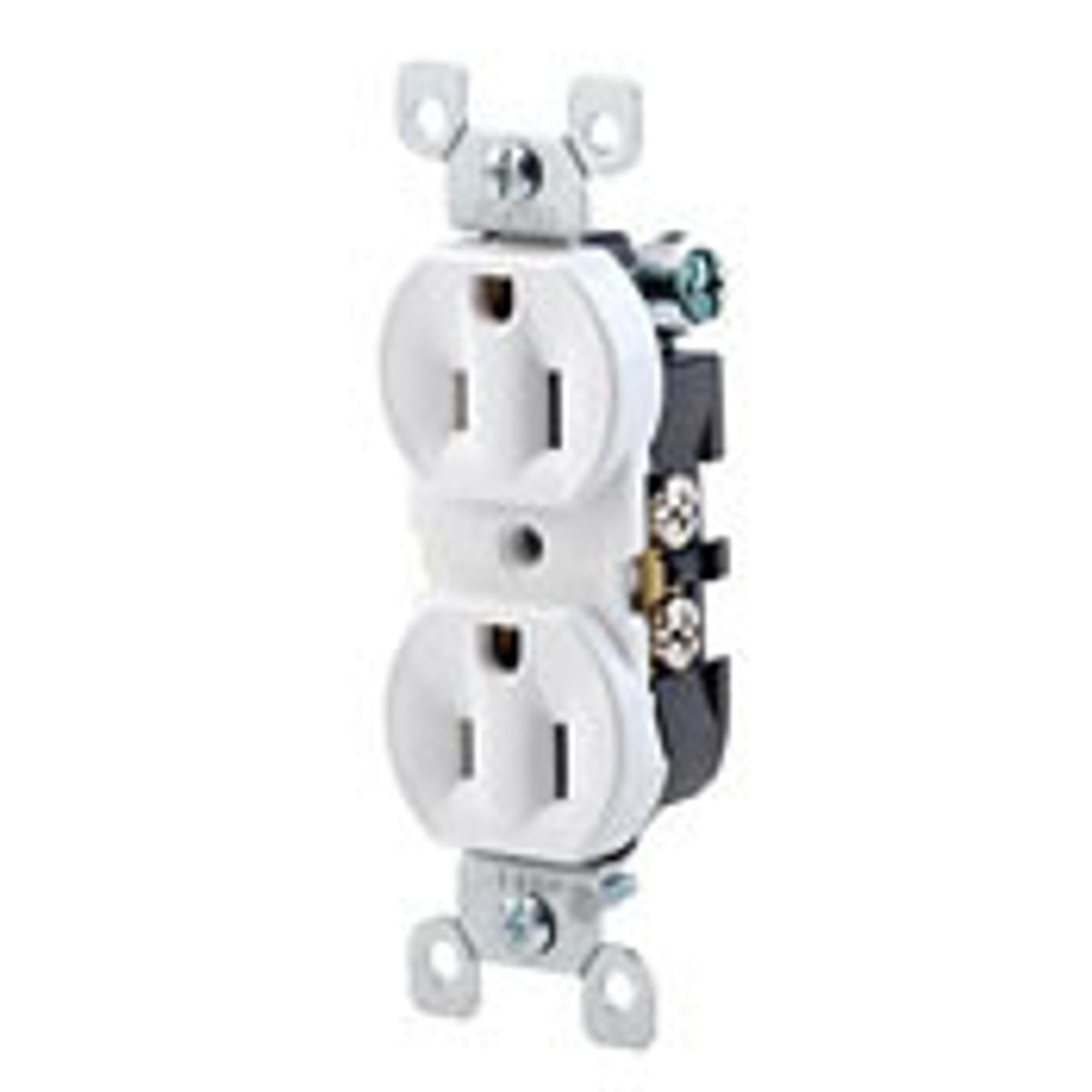

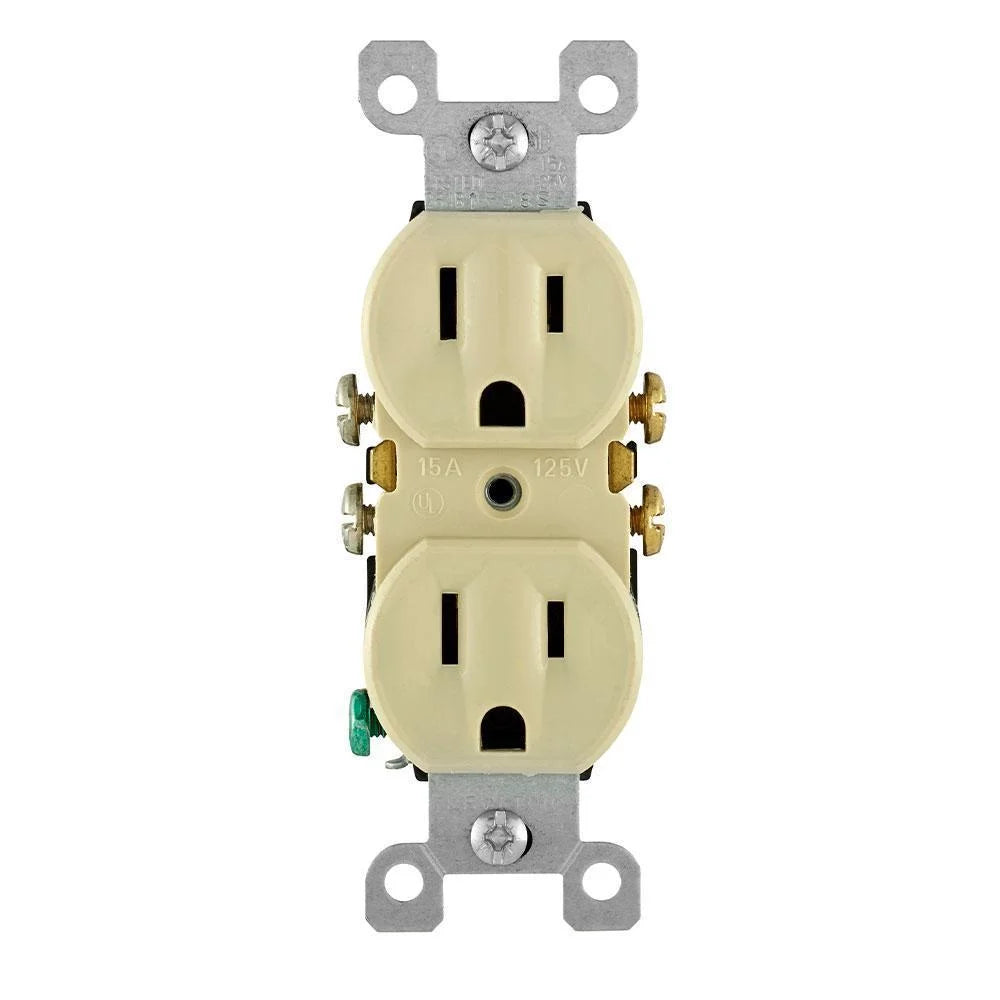

The LEVITON 5320-ICP is a straight blade duplex receptacle. This 15A, 125V receptacle is designed for residential applications. It features thermoplastic construction and a shallow build for maximum wiring room. The duplex is equipped with break-off plaster ears and tabs for easy alignment and circuit conversion.
- Duplex Receptacle
- Residential Grade
- Grounding
Product Highlights
The Leviton 5320-ICP is ideal for residential applications. It offers easy installation and reliable performance.
Product Information
Standard Information
-
Brand: LEVITON
-
Manufacturer Part Number: 5320-ICP
-
Country of Origin: US
Technical Specifications
-
Amperage Rating: 15 A
-
Voltage Rating: 125 VAC
-
Receptacle Type: Duplex
-
Grade: Residential Grade
-
Grounding: Grounding
-
Type: Duplex Receptacles
-
Material: Thermoplastic
-
Mounting: Screw
-
Connection: Quickwire Push-In and Side Wired
-
Number Of Poles: 2-Pole
-
Number Of Wires: 3-Wire
-
Environmental Conditions: Flammability (Rated V-2 per UL94)
-
Depth: 0.94 Inches
-
Width: 1.33 Inches
-
Height: 4.2 Inches
-
Poles: 2
-
Wires: 3
-
Application: Commercial Applications
-
NEMA Rating: NEMA 5-15R
-
Temperature Rating: -40 to 60 deg C
-
Terminal Type: Quick-Wire
Push-In/Side Wire
-
Standard: NOM Certified (057);CSA Certified (File LR-406);UL Listed 498;UL Listed 1561
-
Wire Size: 14 AWG
-
Mounting Style: Screw
-
Plate Design: Duplex Outlet
-
Orientation: Vertical
-
Suitable For: Wall, Interior
-
Current Type: AC
-
Outlet Style: Double
-
Outlet Configuration: Duplex
-
Amperage: 15 Amp
-
Voltage: 125 Volt
-
Terminal Accom.: Side wiring accepts #10, #12 and #14 AWG copper (CU) or #10 and #12 copper clad (CC) wire, Quickwire push-in terminals accept #14 AWG solid copper (CU) wire only
-
Termination: Quickwire Push-In & Side
-
Torque Range: 14 18 in.-lbs
-
CSA C22.2 No. 42: File 152105; Class 6233-01
-
NOM: NOM Certified
-
UL 498: File E13399
-
Strap Material: Steel
-
Mfg Standards/Approvals: CSA Certified (File LR-406), NOM Certified (057), ROHS Compliant, UL Listed 498, UL Listed 1561
-
RoHS Compliant: True
