Product Description

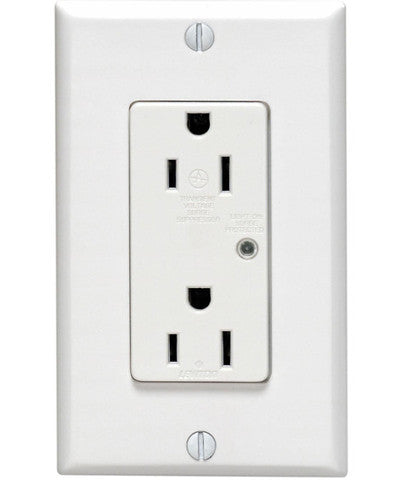

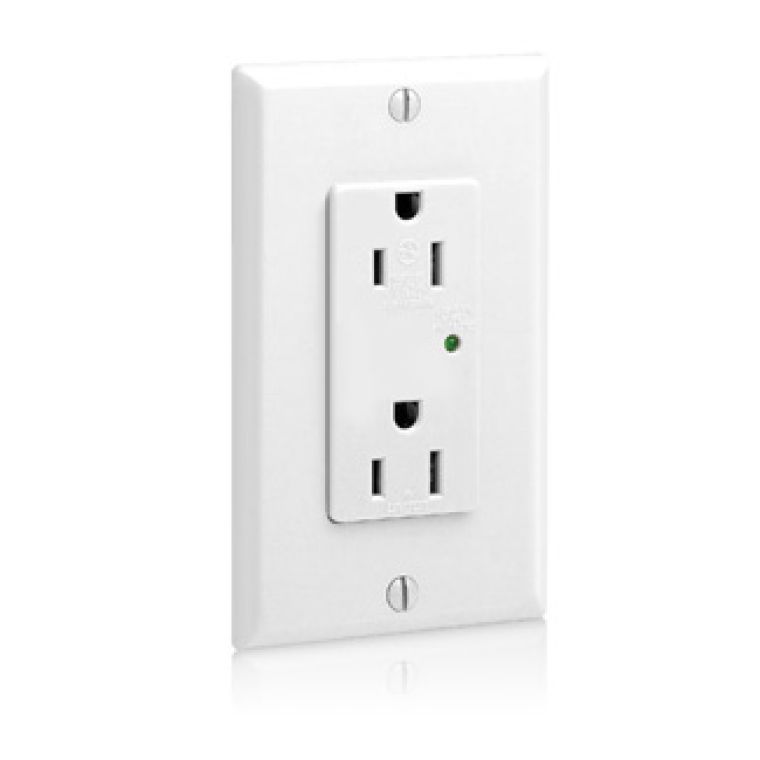

The Leviton 5280-W Decora Plus Surge Protection Devices can be used individually or as part of a coordinated application strategy to protect sensitive electronic equipment from voltage transients. These surge protection devices are compliant with UL 1449 Standards. They divert damaging voltage transients away from electronic equipment, protecting against catastrophic failure, downtime, and data disruptions.
- Ideal for point-of-use surge protection in industrial, commercial and residential applications
- Normal and common mode surge protection (line to neutral, neutral to ground, and line to ground)
- LED monitor/indicator light shows protection status at a glance
Product Highlights
Protects electronic devices from damage caused by power surges. Features an indicator light that assures equipment is protected and can be placed anywhere you have a standard electrical outlet.
Product Information
Standard Information
-
Brand: LEVITON
-
Manufacturer Part Number: 5280-W
-
Country of Origin: Mexico
Technical Specifications
-
Nema: 5-15R
-
Amperage: 15 A
-
Voltage: 125 VAC
-
Pole: 2
-
Wire: 3
-
Operating Temperature: -40 C to 60 C
-
Body Material: Thermoplastic Nylon
-
Clamp Nuts: Zinc-Plated Steel
-
Face Material: Thermoplastic Nylon
-
Grounding Screw: Brass-Plated Steel
-
Line Contacts: Brass Triple-Wipe
-
Shutter Mechanism: Delrin Acetal
-
Terminal Screws: Brass-Plated Steel
-
Yoke: Zinc-Plated Steel
-
Product ID: Ratings are permanently marked on device
-
Terminal Accom.: 14-10 AWG
-
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
-
Termination: Back or Side Wire
-
Torque Range: 14-16 inch pounds
-
Diagnostics: Indicator Light
-
Joules Rating: 720
-
MCOV: 150V rms
-
Maximum Surge Current, Per Mode (Per Phase): 27kA (L-N:18kA, L-G:9kA)
-
Noise Rejection: -30dB at 500kHz-30MHz
-
Nominal Discharge Current Rating: 3kA
-
Short Circuit Current Rating: 5kA
-
VPR: L-N: 600V, L-G: 700V, N-G: 600V
-
Brand: Decora Plus
-
Device Type: Duplex Receptacle Outlet
-
Function: Surge Protective
-
Grade: Commercial Specification Grade
-
ANSI: C-73
-
Agency Certifications: UL 498, UL 1449 3rd Edition Listed and CSA C22.2 Certified Type 3
-
NOM: 057
-
Current Limiting: Full Rated Current
-
Dielectric Voltage: Withstands 2000V per UL498
-
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
-
Screw Terminal Torque: 14-18 in-lbs
-
Material: Polycarbonate (PC)
-
Specification Met: UL
-
Model: T5280-W
-
Manufacturer: Leviton
-
Part Number: T5280-W
-
Included Components: Leviton T5280-W 15A TR SURGE RECPT
-
Unit Count: 1.0 Count
-
Total Power Outlets: 2
