Leviton 5249-TFB Single Tamper Resistant 15A 125VAC Floor Box Receptacle Assembly

Product Description

Leviton 5249-TFB is a single tamper-resistant floor box receptacle assembly designed for commercial and residential applications. This unit operates at 125 volts and can handle up to 15 amps with a 1/2 horsepower rating. It features a NEMA 5-15R rating, making it suitable for a wide range of devices.

• Suitable for in-floor receptacle installations.

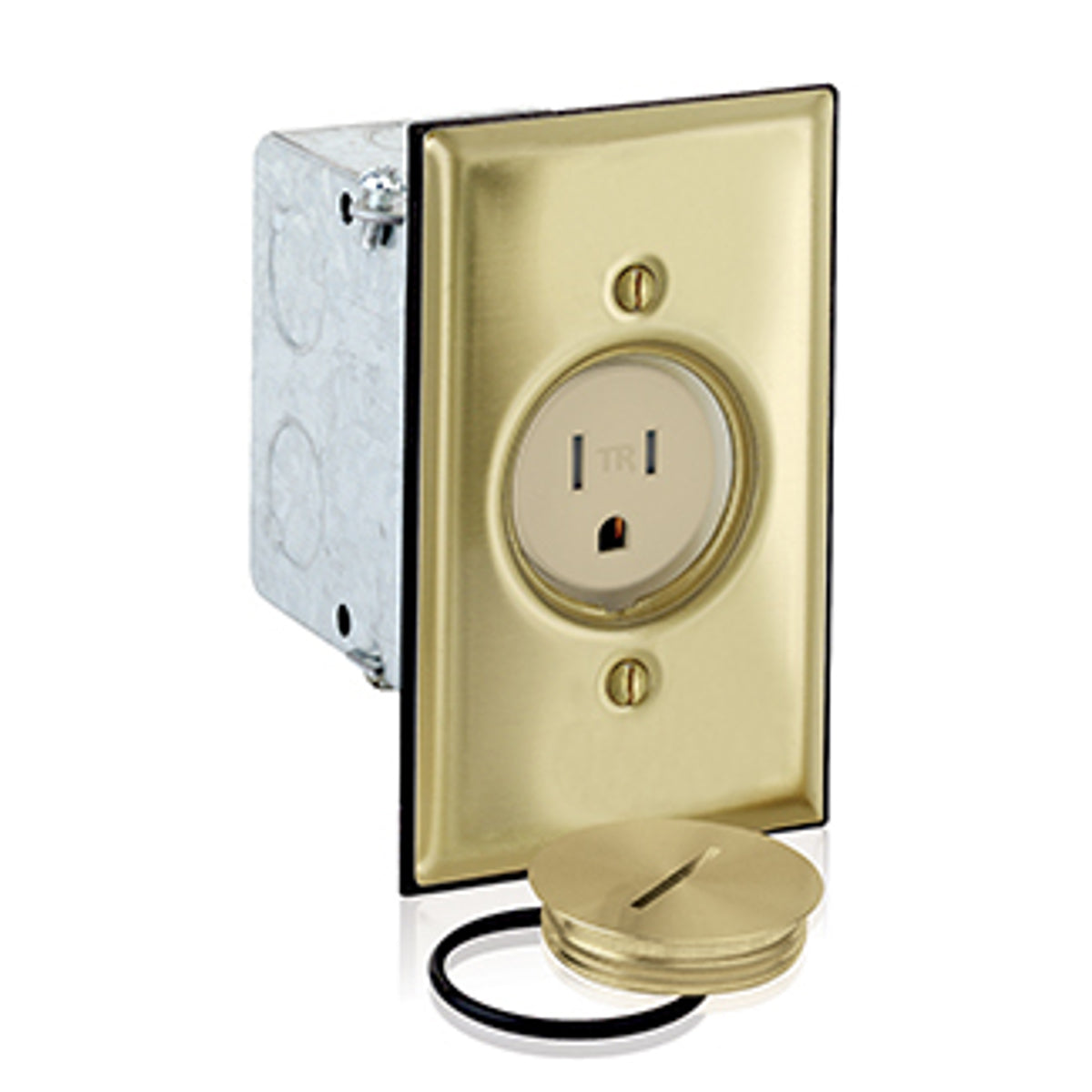

• Contains a brass floorplate and screw cap to prevent foreign contaminants.
• Designed for back and side wire terminals.

Product Highlights

This receptacle assembly is ideal for low-profile installations in homes and commercial spaces. It supports wood frame construction with carpet and finished flooring, making it a versatile solution for various settings from home offices to performance venues.

Product Information

Standard Information

• Manufacturer: Leviton
• Catalog Number: 5249-TFB

Technical Specifications

• Amperage Rating: 15 A
• Voltage Rating: 125 VAC
• Horsepower: 1/2 hp
• NEMA Rating: 5-15R
• Temperature Rating: -40 to 75 degrees C
• Number of Poles: 2
• Number of Wires: 3
• Dimensions: 4.5 inches H x 2.75 inches W x 4.42 inches D
