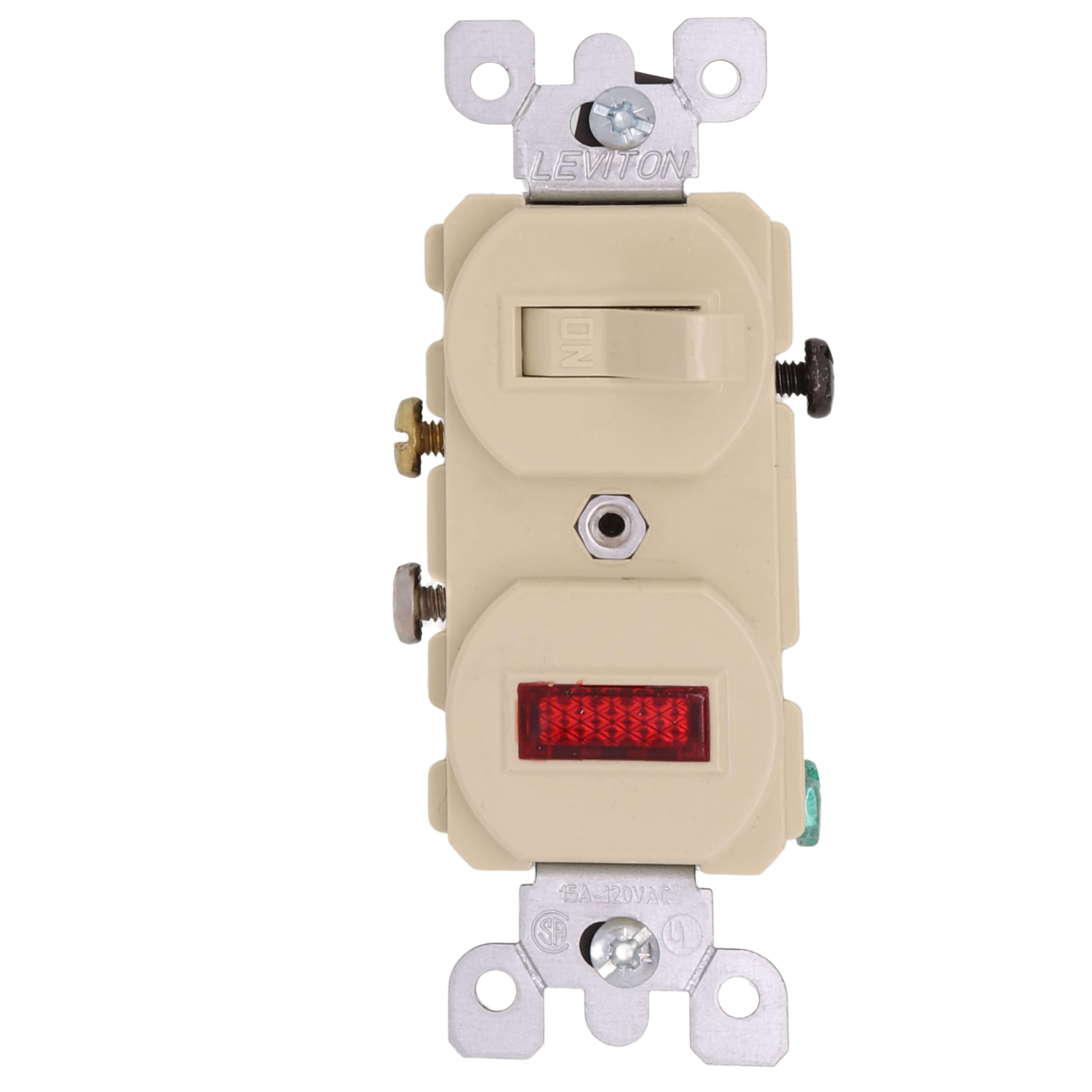

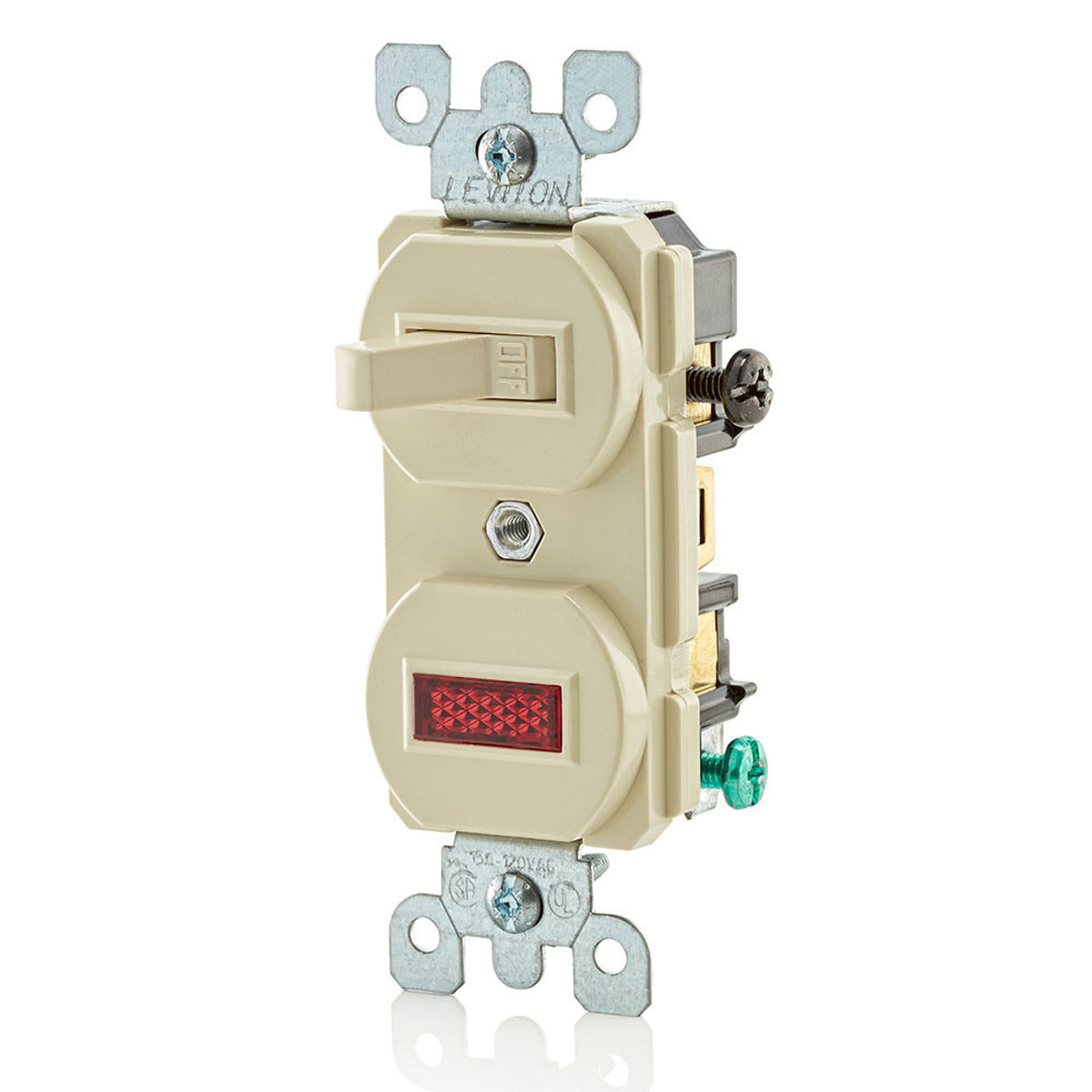

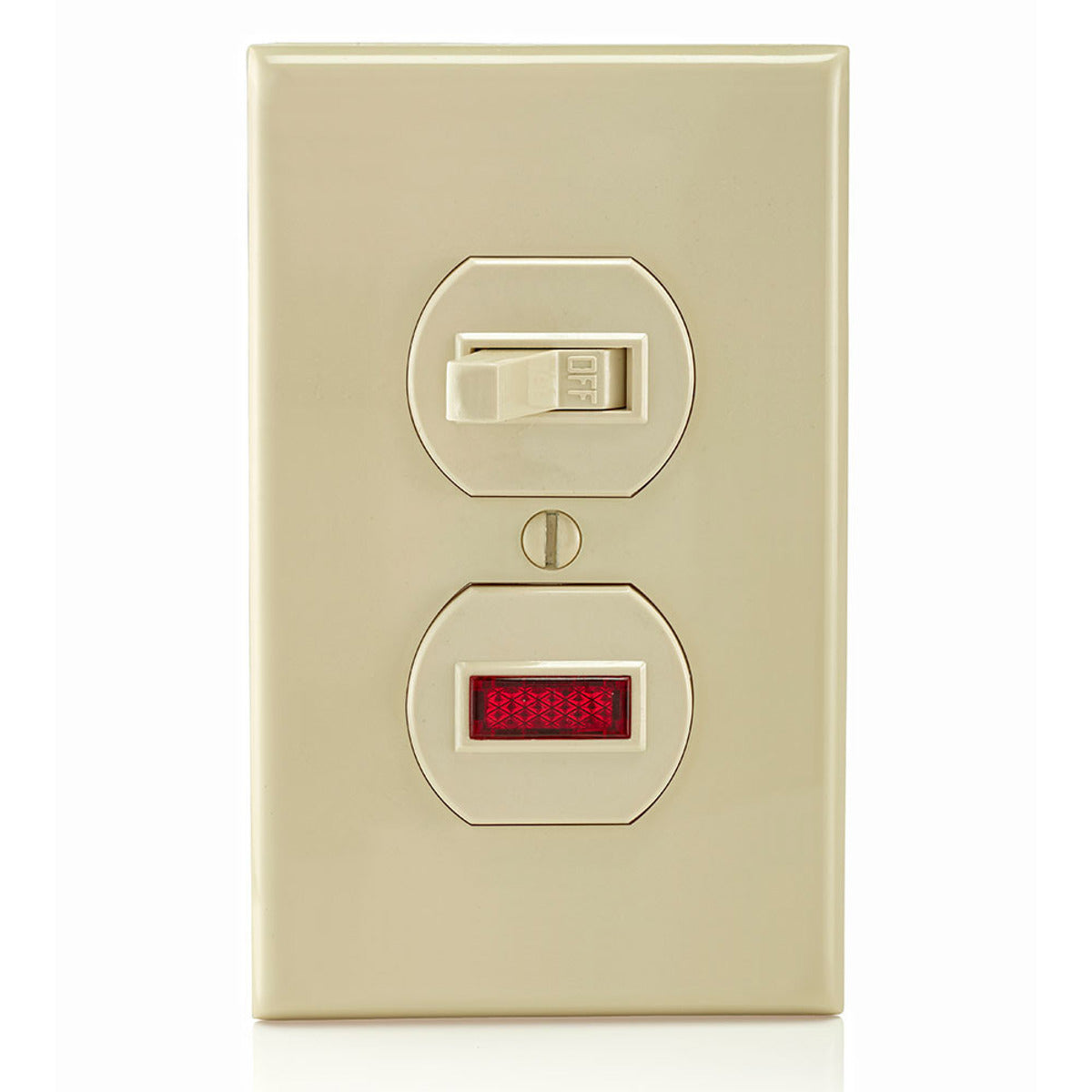

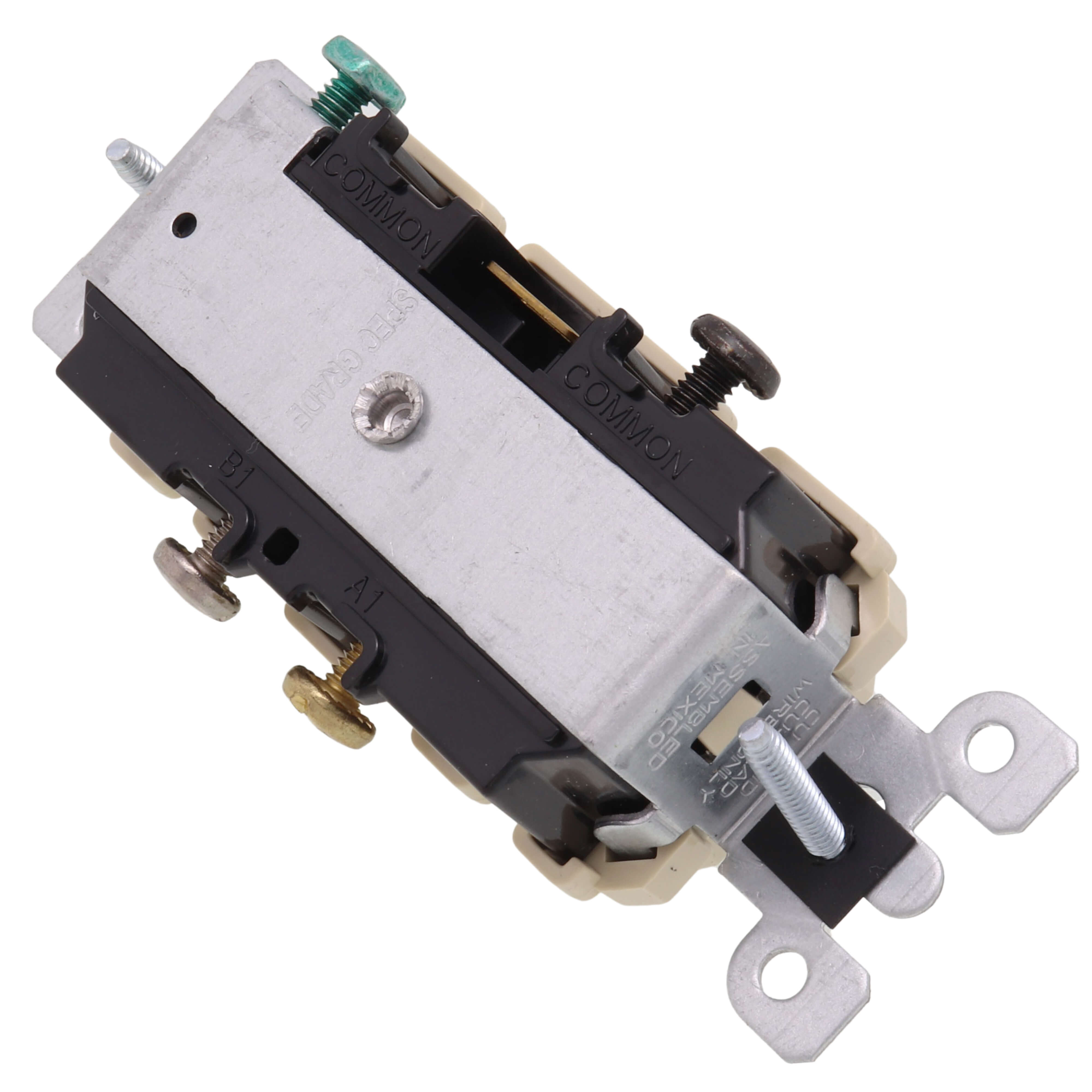

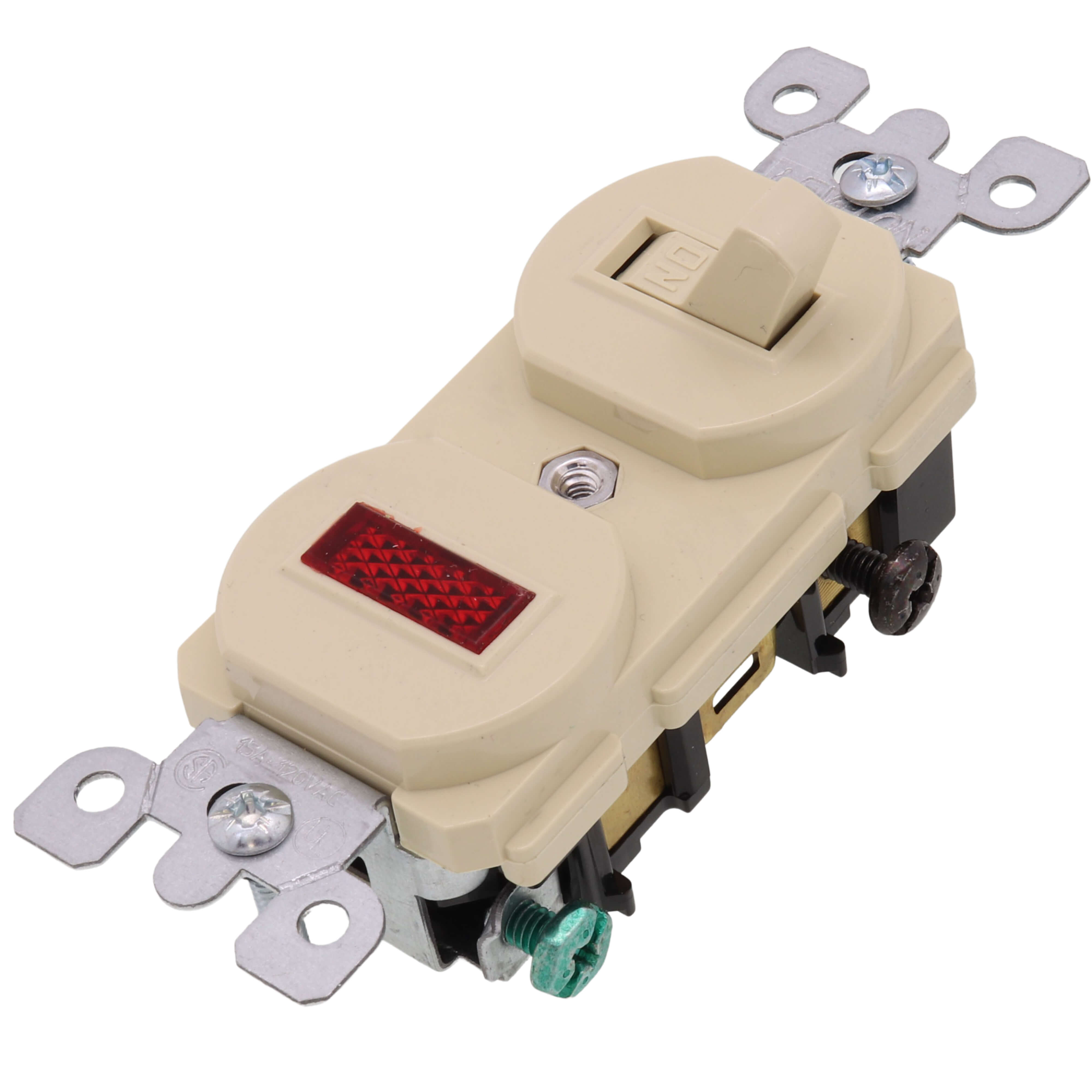

Leviton 5226-I Light Switch, 15A Pilot Light Combo

Brand: LEVITON
SKU: 5226-I
Availability: In Stock

Ships same day if ordered by 12 pm
$35.44
$35.44
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Leviton 5226-I is a light switch, 15A pilot light combo. This AC combination switch features duplex grounding and a neon pilot lamp. It is suitable for commercial applications. The switch has silver cadmium oxide contacts and receptacles have double wire contacts for maximum conductivity.

  • AC quiet switches have silver cadmium oxide contacts and receptacles have double wire contacts for maximum conductivity
  • Terminal screws accept up to #12 AWG copper or copper clad wire
  • Fits standard wallboxes

Product Highlights

The Leviton 5226-I is ideal for various applications. It offers reliable performance and durability.

Product Information

Standard Information

  • Brand: LEVITON
  • Manufacturer Part Number: 5226-I
  • Country of Origin: Mexico
Technical Specifications
Color
Ivory
Unit Count
1.0 Count
Mounting Type
Wall Mount
Current Rating
15 Amps
Batteries Included?
No
Type
Duplex Grounding
Action
Toggle
Material
Thermoplastic
Mounting
Surface
Lamp Type
Neon Pilot
Terminal Type
Side Wire
Voltage Rating
120/125 VAC
Amperage Rating
15 A
Number of Poles
1
Temperature Rating
-40 to 120 deg C
Amperage
15 A
Voltage
120v, 277v
Pole
1
Terminal
Side Wire
Temperature
-40 to 120 deg C
Switch Type
120/277 VAC 15 Ampere 1-Pole with Non-Grounding Toggle
Style
Duplex
Grade
Commercial Grade
Features
Neon Pilot Light
Brand
Leviton
Model / MPN
5226-I
Application
Commercial Applications
Includes
Ground Screw
Standards/Approvals
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|ANSI C73|UL 20 File No. E7458|CSA C22.2 No.111/152105/LR3413|NOM 057|NEMA WD1/WD6|UL94 V-2 Flammability Rating
Actuator
Toggle Switch
Standard
UL Listed (E-7458);CSA Certified (LR-3413);NOM Certified (057);NEMA (WD-1, WD-6);ANSI (C-73);UL 20;CSA Certified (C222.2 No.111 152105)
Connection
Side Wired
Contact Rating
120 VAC (Switch);125 V (Receptacle);15 AMP
Operating Temperature
-40 to +120 DEG C
Environmental Conditions
Flammability (Rated UL 94 V-2)
Catalog Description (MFR)
15 Amp, 120 Volt, Duplex Style Single-Pole, Neon Pilot AC Combination Switch, Commercial Grade, Ivory
Invoice Description (MFR)
15A 120V SP SW NEON PL COMBO BROWN
Safety Data Sheet (SDS) Flag
Y
Buy American Act (BAA) Compliant
C
Concatenated Invoice Description
15A 120V SP SW NEON PL COMBO BROWN
American Recovery and Reinvestment Act (ARRA) Compliant
C
Manufacturer Item Status
Active
Manufacturer Name
Leviton
UPC
078477226902
GTIN
00078477226902
Alternative Part Number
7365346
Country
USA
Country Of Origin
MX
IDEA Index ID
7365346
IGCC
5288
Vendor
78477
Family group
WIRING DEVICES
Special Features
Ac Quiet Switches have Silver-Cadmium Oxide Contacts and Receptacles have Double -wire Contacts for Maximum Conductivity, Terminal Screw Accept Up to No 12 AWG Copper or Copper-Clad Wire, Fits Standard Wallboxes, Break-Off Tabs on Devices with Switches Permit Conversion to Separate Feeds, Limited Two-Year Warranty, Grounding, Pilot Light, Made in Mexico
WES Product code
2734275260
Replacement Parts Material
Steel (Strap);Thermoplastic (Actuator)
HP Rating
1/2HP-120V
Max. Amperage
12 Amp
Grounding
Grounding
Switch Amperage
15 Amp
Switch Voltage
120/277V AC
Neon Pilot Light Voltage
120V AC
Dielectric Voltage
Withstands 1500V for 1 minute
Overload UL20 Test
100 cycles of OL at 4.8 times rated current
Temperature Rise
Maximum 30 degrees C rise
Flammability
Rated V-2 per UL94
Actuator Material
Thermoplastic
Body Material
Thermoplastic
Strap Material
Steel
Termination
Side
Terminal ID
Brass-Hot Black-Hot White-Neutral Green-Gnd
Terminal Accom.
14-12 AWG
Product ID
Stamped on Strap
Torque Range
12-14 inch pounds
NEMA
WD-1 & WD-6
ANSI
C-73
UL Standard
UL 20
CSA C22.2 No. 111
File #152105
NOM
057
Type / Style
Duplex Grounding
Horse Power
1/2
Terminations
Side
AC Horsepower Ratings
HP Rating : 1/2HP-120V
Feature
Single-Pole / Neon Pilot
Product Type
Switch/Pilot Combo
Operation Mode
manual
Operating Voltage
120 Volts
Contact Type
Normally Open
Connector Type
Screw
Circuit Type
1-way
Actuator Type
Hinge Lever
Number of Positions
2
Control Method
Touch
Wattage
1800 watts
Control Type
Manual
Compatible Devices
Standard electrical wiring and systems in residential and commercial buildings
Smart Home Compatibility
Not Smart Home Compatible
Category
Home & Garden
Pilot Light Type
125 VAC 1/25 W Neon
Product UPC
07847722690
Wall Plate Included
No
Wiring
Side
HP [Specifications]
1/2
ANSI [Specifications]
C-73
Amps [Specifications]
15
Item [Specifications]
Combination Device
NEMA [Specifications]
WD-1 & WD-6
Pole [Specifications]
1
Type [Specifications]
Toggle
Color [Specifications]
Ivory
Feature [Specifications]
Single-Pole / Neon Pilot
Voltage [Specifications]
120VAC
Amperage [Specifications]
15 A
Grounding [Specifications]
Grounding
HP Rating [Specifications]
1/2HP-120V
Terminal ID [Specifications]
Brass-Hot Black-Hot White-Neutral Green-Gnd
Termination [Specifications]
Side
UL Standard [Specifications]
UL 20
Flammability [Specifications]
Rated V-2 per UL 94
Product Type [Specifications]
Switch/Pilot Combo
Torque Range [Specifications]
14- 18 in.-lbs
Body Material [Specifications]
Thermoplastic
Max. Amperage [Specifications]
12 Amp
Strap Material [Specifications]
Steel
Switch Voltage [Specifications]
120/277V AC
Switch Amperage [Specifications]
15 Amp
Terminal Accom. [Specifications]
14-12 AWG
Temperature Rise [Specifications]
Maximum 30 degrees C rise
Actuator Material [Specifications]
Thermoplastic
Dielectric Voltage [Specifications]
Withstands 1500V for 1 minute
NEMA Configuration [Specifications]
5-15R
Overload UL20 Test [Specifications]
100 cycles of OL at 4.8 times rated current
Wiring Combination [Specifications]
Switch/Pilot Light
Operating Temperature [Specifications]
-40 0C to 65 0C
Neon Pilot Light Voltage [Specifications]
120V AC
Description/Special Features [Specifications]
Switch/Pilot Light
Country of Origin (subject to change) [Specifications]
Mexico
Enclosure Type
NEMA 5-15R
Package Type
EACH
Series
Duplex Grounding
