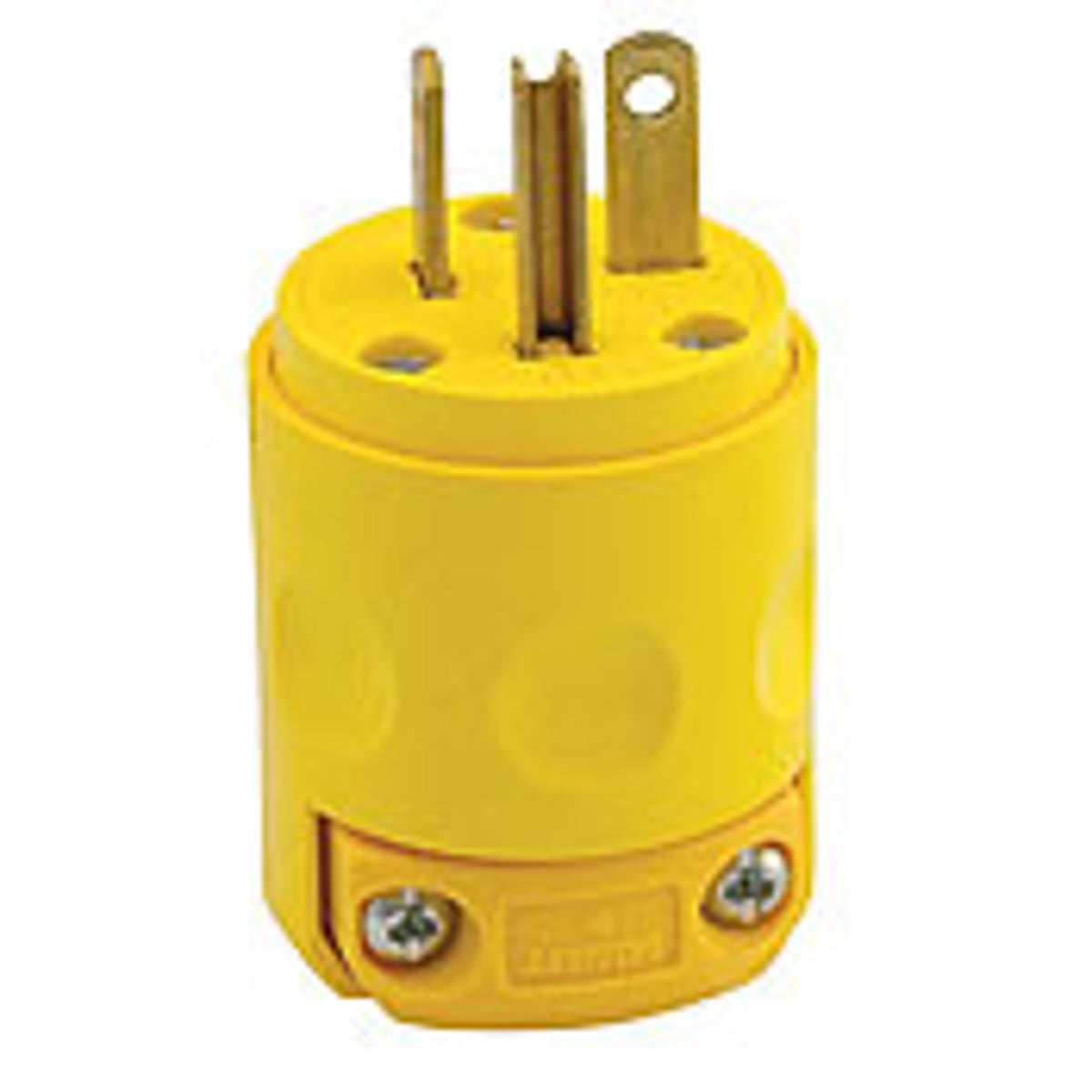

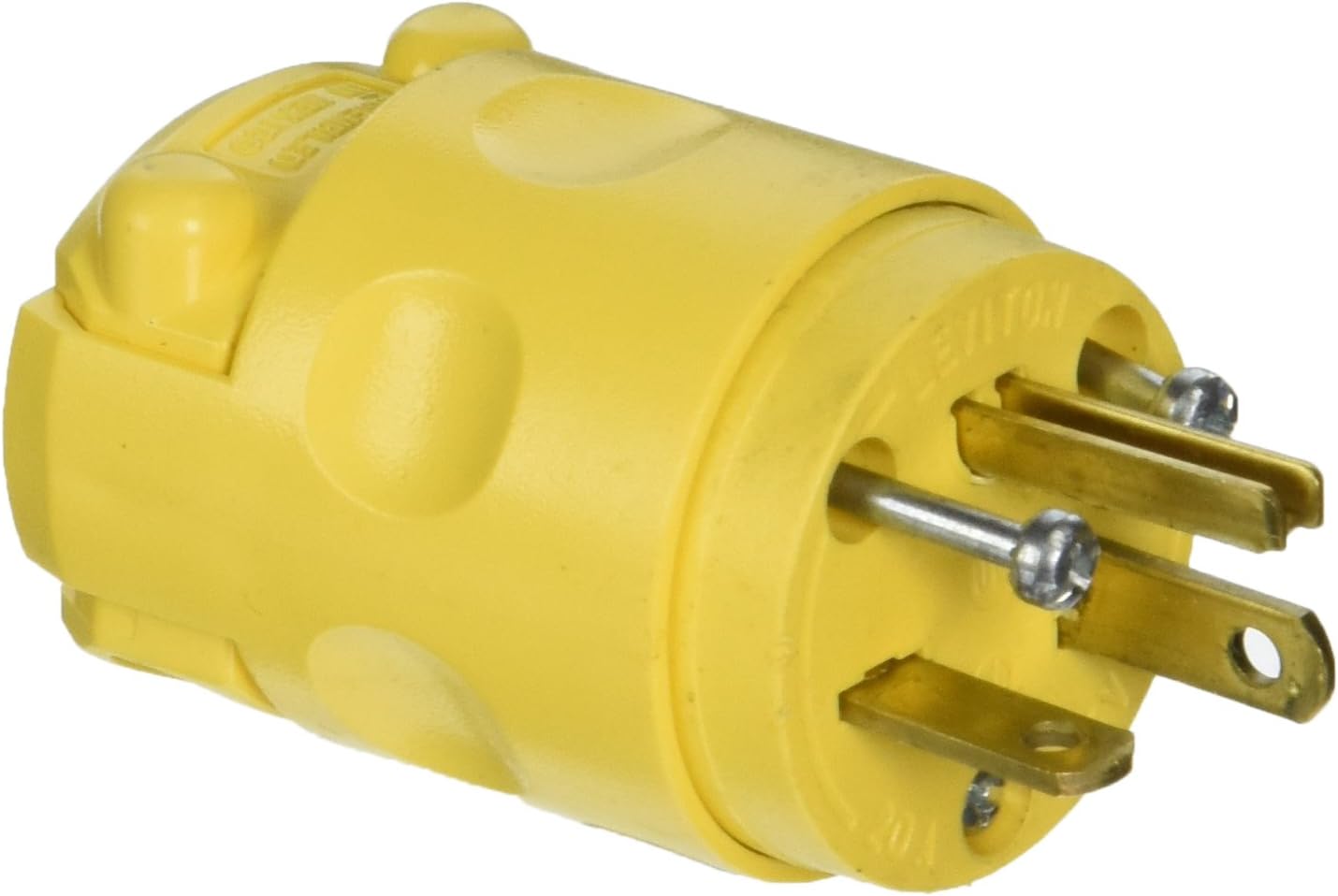

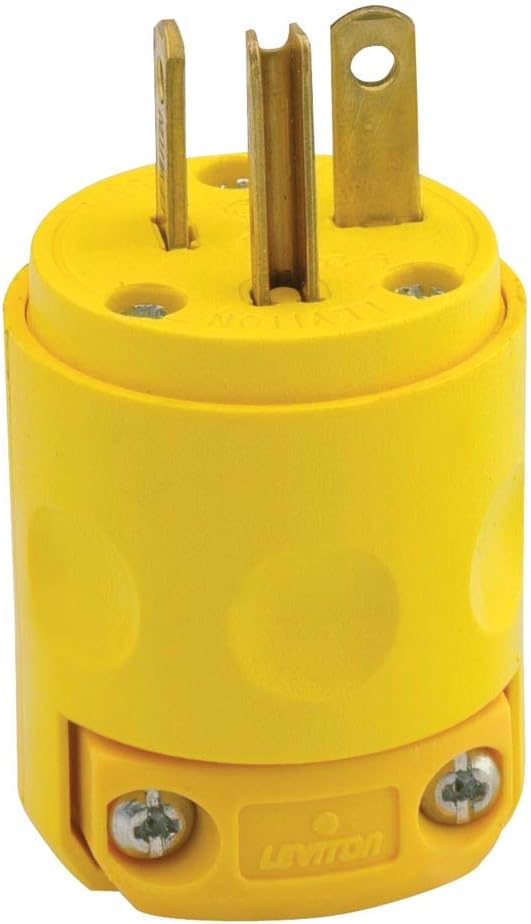

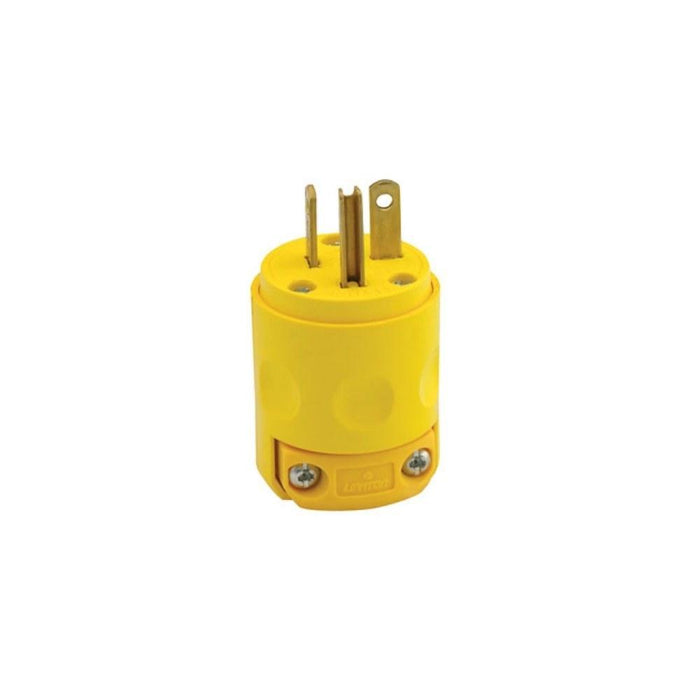

Leviton 520PV Plug 20 Amp, 125 Volt, Grounding

Product Description

The Leviton 520PV is a 20 Amp, 125 Volt grounding plug. This commercial-grade straight blade plug is moisture, chemical, and abuse-resistant, making it ideal for indoor and outdoor use. The unique dimpled body design provides a secure grip, and speed-thread assembly screws tighten with just a few quick turns.

• 20 Amp, 125 Volt
• Grounding
• Rugged PVC body resists moisture and chemicals

Product Highlights

This Leviton grounding plug is ideal for replacing plugs on tools, appliances, and cords. It is designed to withstand impact, corrosion, and chemicals.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: 520PV
• Country of Origin: Mexico

Technical Specifications

• Amperage Rating: 20 Amp
• Voltage Rating: 125 Volt
• NEMA Configuration: NEMA 5-20P
• Number of Poles: 2
• Number of Wires: 3
• Grounding: Grounding
• Blade Material: Brass
• Body Material: PVC
• Cord Size: 0.245 to 0.7 in
• Wire Size: 18-12 AWG
• Temperature Rating: -40 to 60 deg C
• Dielectric Strength: 2000 Volt
• Mounting Type: Cable
• Standard: ANSI C-73
• Approvals: UL 498, CSA C22.2, NOM 057
• Flammability: Rated V-2 per UL 94
• Country of Origin: Mexico
• Connector Type: Plug in
• Type: Straight Blade
• Environmental Conditions: UL 94 Requirements, V2 Rated Flammability
• Terminal Connection: Screw
• Contact Material: Brass
• Dielectric Voltage: Withstands 2000V per UL498
• Temperature Rise: Max 30C after 50 cycles OL at 150 percent rated current
• Terminal Accom.: 18-12 AWG
• Assembly Screws: Steel, Zinc Plated
• Cord Diameter: 0.245 to 0.7 in
