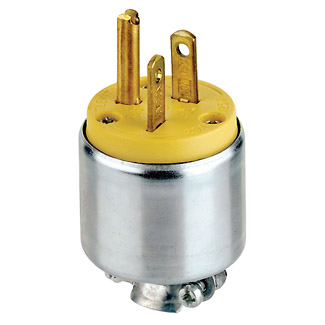

Leviton 520PA Armored Cable Mount Grounding Plug 125 Volt 20 Amp 2 Pole 3 Wire Replacement

Product Description

The Leviton 520PA is a straight blade plug designed for rugged use. It operates at 125 volts and carries a current of 20 amps. This plug has a NEMA 5-20P configuration, making it suitable for various applications. It features a two-pole and three-wire setup, ensuring secure connections.

• Voltage: 125 volts, Amperage: 20 amps
• Material: PVC and zinc-plated steel
• Ideal for commercial applications

Product Highlights

This product is designed for easy installation and durability, making it effective for both indoor and outdoor use, even in harsh conditions.

Product Information

Standard Information

• Brand: Leviton
• Manufacturer Part Number: 520PA

Technical Specifications

• Catalog Number: 520PA
• NEMA Rating: 5-20P
• Number of Wires: 3
• Number of Poles: 2
• Wire Size: 18-12 AWG
• Environmental Conditions: -40 to 60 degrees Celsius
• Size: 1.55 inches in diameter x 1.89 inches in height
• Dielectric Strength: 2000 volts
