Leviton 5206-S10 Straight Blade Receptacle 50 Amp, 125/250 Volt

Product Description

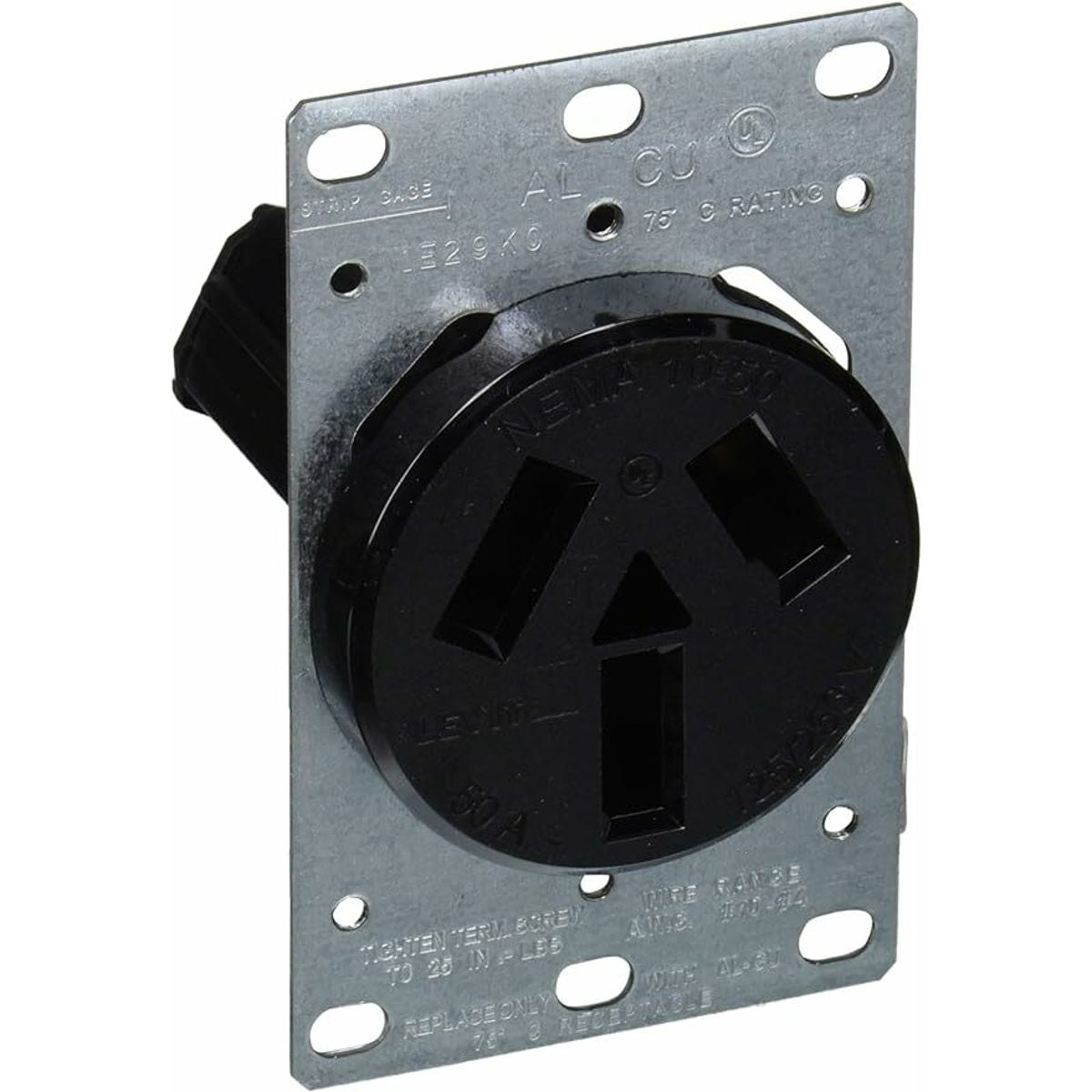

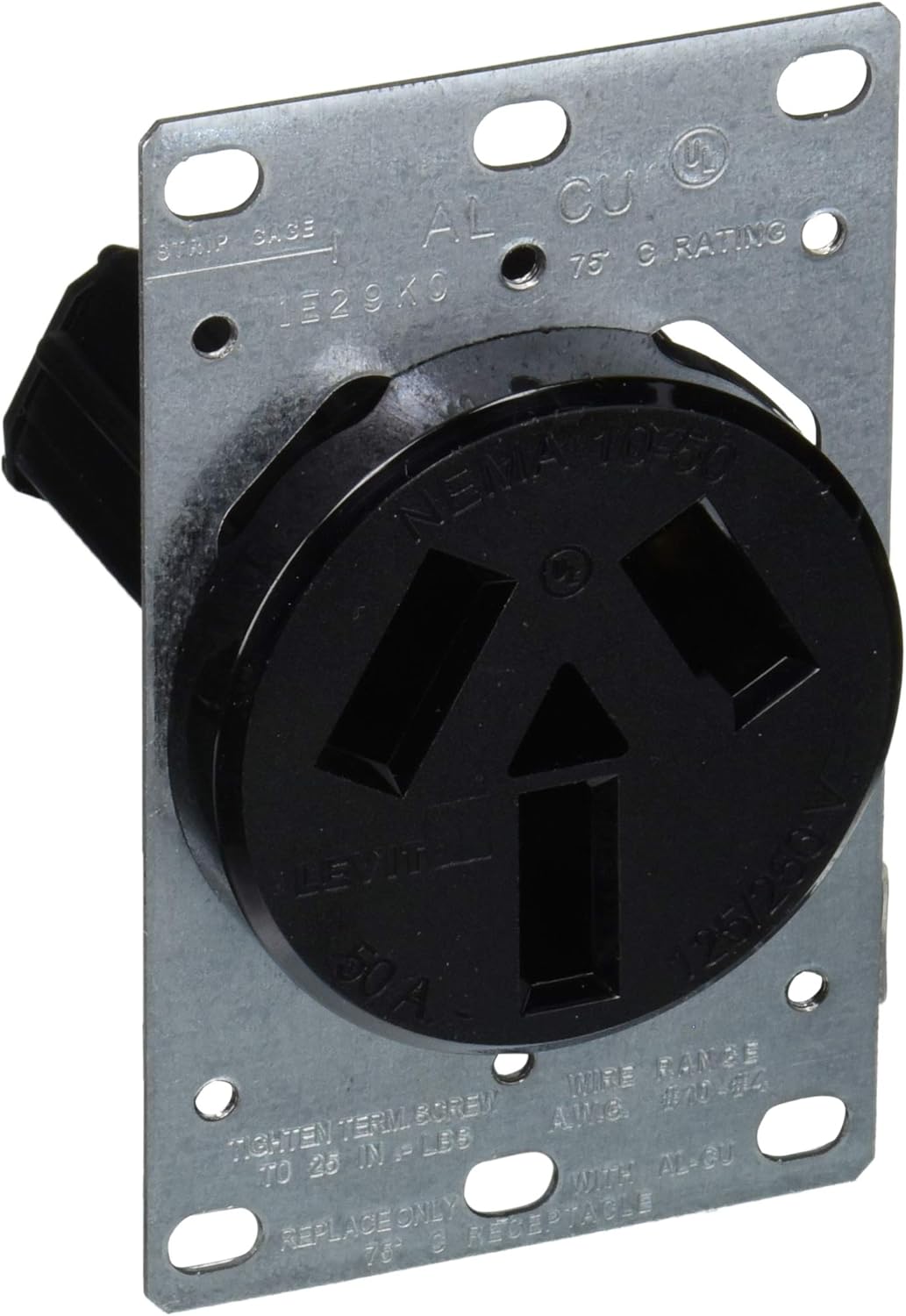

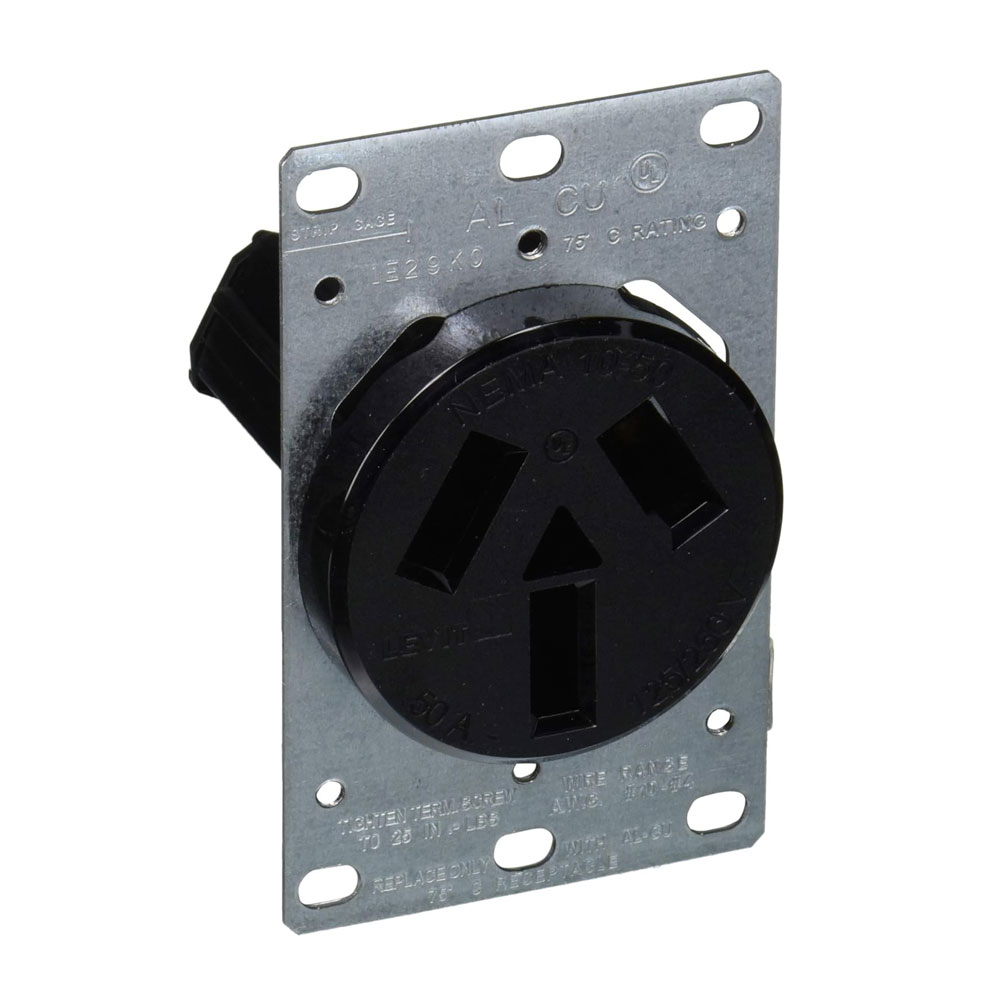

The Leviton 5206-S10 is a 50 Amp, 125/250 Volt, NEMA 10-50R, straight blade receptacle. This industrial grade, non-grounding receptacle features side wiring and a steel strap. It is designed for flush mounting and is suitable for ovens and other industrial applications.

• 50 Amp, 125/250 Volt
• NEMA 10-50R
• Industrial Grade, Non-Grounding

Product Highlights

This receptacle is ideal for industrial applications requiring a robust and reliable power connection.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: 5206-S10
• Country of Origin: Mexico

Technical Specifications

• Color: Black
• Voltage: 125/250 VAC
• Material: Nylon
• Certification: NEMA
• Mounting Type: Flush
• Compatible Devices: Oven
• Amperage: 50 A
• Poles: 3
• Wiring: 3 Wire
• NEMA: 10-50R
• Grade: Industrial
• Amperage Rating: 50 A
• Application: Industrial Applications
• Horsepower: 3 hp
• Number of Poles: 3
• Number of Wires: 3
• Standards/Approvals: ANSI C73|CSA C22.2 No. 42 File No. 152105|NOM 057|NEMA WD6|UL 498 File No. E13399
• Temperature Rating: -40 to 60 deg C
• Terminal Type: Side Wire
• Voltage Rating: 125/250 VAC
• Device Type: Single Receptacle
• Grounding: Non-Grounding
• Conductor Size: 4 AWG
• Environmental Conditions: UL 94 Requirements, V2 Rated Flammability
• Dielectric Strength: 2000 Volt
• Maximum Load Capacity: 3 hp
• Terminal Accom.: #4 - #8AWG
• Torque Range.: 25 in-lbs.
• Termination.: Side Wire
• CSA: Yes
• UL: UL 498
• RoHS Compliant: Yes
• Wire Size: 14-6
• Strap Material: Steel
