Leviton 515CR Power Socket 15 Amp, 125 Volt

Product Description

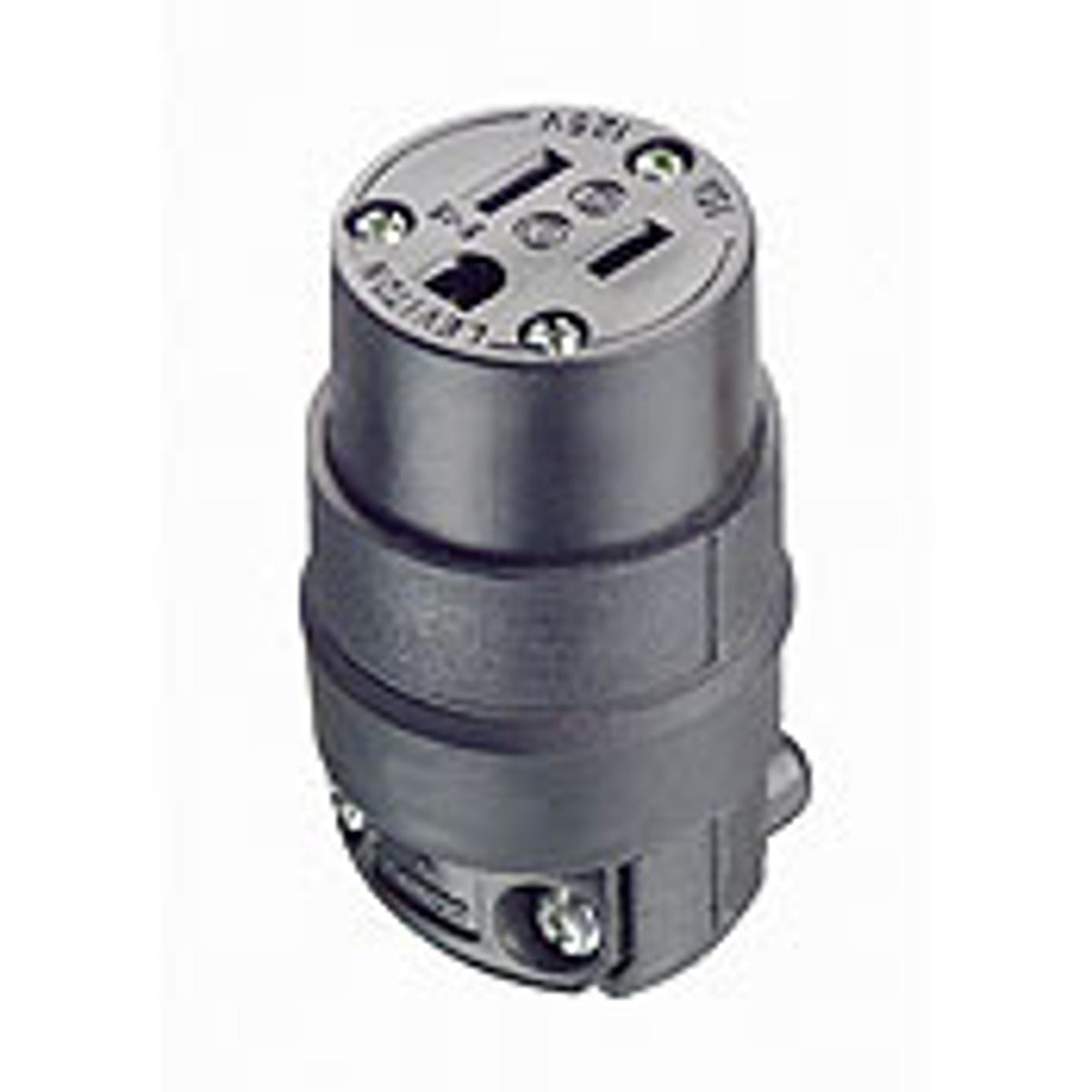

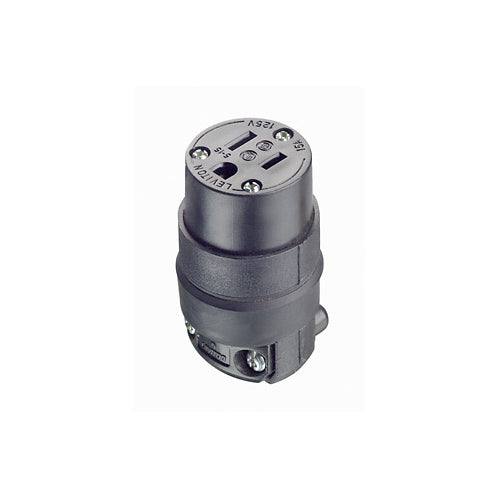

The Leviton 515CR power socket is a 15 Amp, 125 Volt, NEMA 5-15R, 2-pole, 3-wire connector with a straight blade design. These rugged performers are moisture, chemical, and abuse-resistant, making them ideal for indoor and outdoor use. The deep-slotted, backed-out terminal screws draw backwire clamps securely over stripped leads for maximum conductivity.

• Rated V-2 per UL 94 for flammability.
• EPTR rubber construction protects against dirt and moisture.
• Ideal for indoor and outdoor use.

Product Highlights

The Leviton 515CR power socket is a durable and versatile connector suitable for a variety of applications.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: 515CR
• Country of Origin: Mexico

Technical Specifications

• Brand Name: Leviton
• Product Name: Power Socket
• Product Type: Power Socket
• Current Rating: 15A
• Voltage Rating: 125V AC
• ADI Part Number: LV-515CR
• Receptacle Type: NEMA 5-15R
• Packaged Quantity: 1
• Manufacturer Part Number: 515CR
• Certifications & Standards: Flammability: Rated V-2 per UL 94 ANSI: CSA C22.2 No. 42: NEMA: WD-6 NOM: 057 UL498: File E13393
• Material: Brass,rubber,Steel
• Voltage: 125 Volts
• Grade: Residential
• Type: Polarized
• Configuration: 5-15R
• Number of Poles: 2
• Number of Wires: 3
• Ground Type: Grounding
• Cord Size: 0.245 to 0.655 Inch
• Approval: UL 498, CSA C22.2, NOM 057
• Blade/Contact Material: Brass
• Wire Gauge: 18 to 12 AWG
• Temperature Rating: -40 to 60 Deg C
• Cord Diameter: 0.245 to 0.7 in
• Terminal Type: Screw
• Amperage Rating: 15 A
• NEMA Rating: NEMA 5-15R
• Country Of Origin: MX
• Dielectric Strength: 2000 Volt
• Contact Material: Brass
• Conductor Size: 18-12 AWG
• Environmental Conditions: V2 Flammability Rated Per UL94
• Standards: NEMA WD-6, ANSI C-73, UL 498 Listed, CSA C22.2 No.42, LR406 Certified, NOM 057 Certified
• Maximum Load Capacity: 1/2 hp
• Operating Temperature: -40 C to 60 C
• Body Material: EPTR Rubber
• Assembly Screws: Steel, Zinc Plated
• Current Interrupting: Certified for current interrupting at full rated current
• Temperature Rise: Max 30C after 50 cycles OL at 150 percent rated current
• Flammability: Rated V-2 per UL 94
• Terminal Accom.: 18-12 AWG
• Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
• ANSI: C-73
• CSA C22.2 No. 42: File LR-406
• NOM: 057
• UL498: File E13393
• RoHS Compliant: Yes
• Number Of Poles: 2 Pole
• Number Of Wires: 3 Wire
• Number of Ports: 2
• Number of Conductors: 3
• Application: Cord Connection
• Electrical Product Type: Plug/Connector
• Indoor/Outdoor: Indoor/Outdoor
• Maximum Amperage (A): 15 A
• Plug Configuration: 5-15
• Series: 515PV
• Standards and Certifications: UL/CSA
• UNSPSC: 39121421
• Voltage Rating UOM: VAC
• Amperage Rating UOM: A
• Cord Diameter UOM: in
• Temperature Rating UOM: deg C
• Manufacturer Name: Leviton
• GTIN: 00078477841549
• UPC: 07847784154
• Item Name: Straight Blade Connector
• Terminal Connection: Screw
• Alternative Part Number: 7341880
• IDEA Index ID: 7341880
• Manufacturer Item Status: Active
