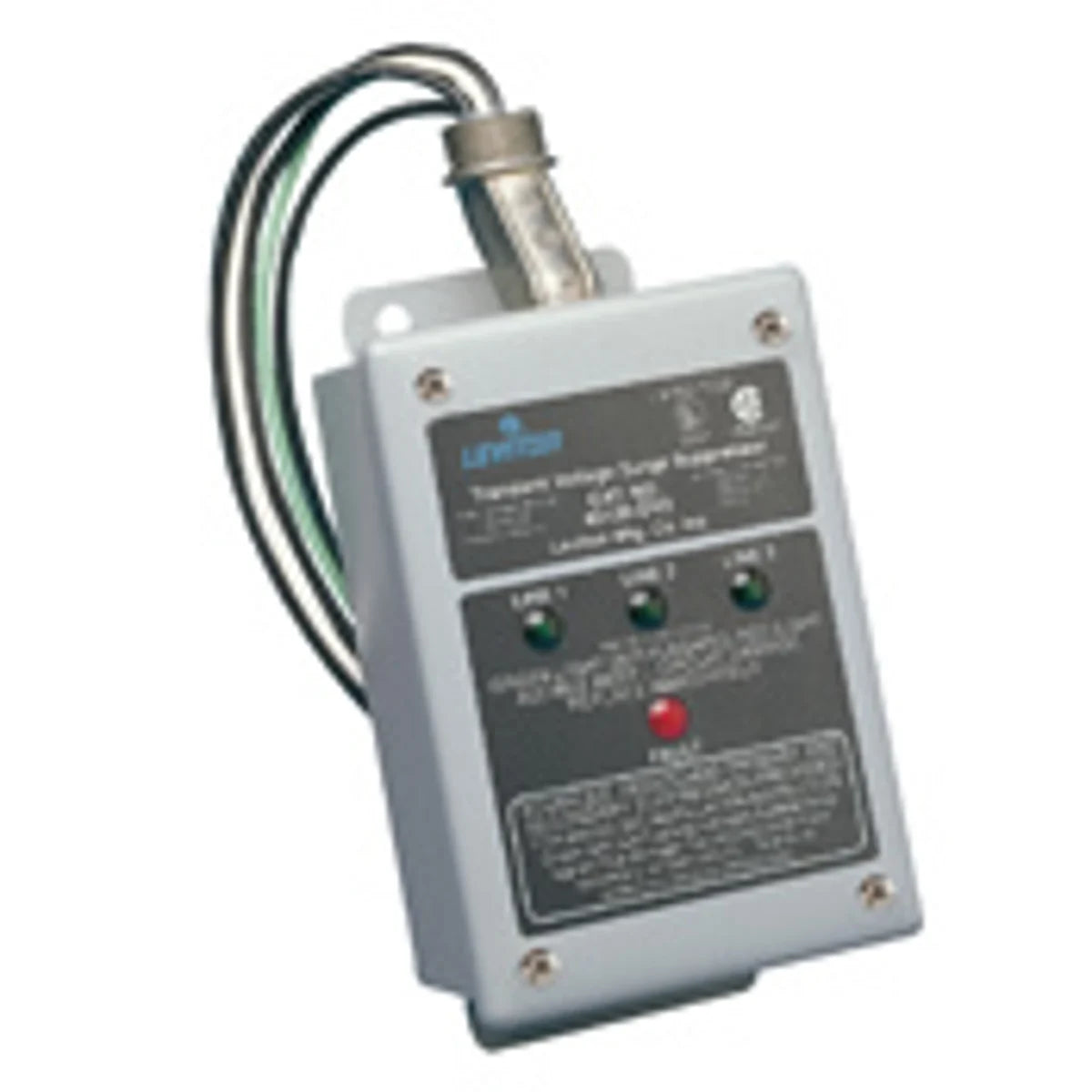

Leviton 32277-DY3 GY MLT-PHASE TVSS DISTR PNL PROTECTOR

Product Description

The Leviton 32277-DY3 is a surge panel designed for 277/480 Volt applications. It provides surge protection for commercial settings, facilitating safe electrical operations with minimal disruption. The device is compatible with both Wye and Delta configurations, making it versatile for various electrical systems.

• 80 kA peak surge current rating
• Operates effectively at 30 A, 277/480 VAC and 50/60 Hz
• Features LED noise filtering indicators for monitoring

Product Highlights

The Leviton surge panel enables reliable surge suppression while maintaining compatibility with home control and communication systems. This product is ideal for environments where voltage spikes are a concern.

Product Information

Standard Information

• Catalog Number: 32277-DY3
• Manufacturer: Leviton

Technical Specifications

• Voltage Ratings: 277/480; 220/380; 240; 480
• Frequency Rating: 50/60 Hz
• Short Circuit Rating: 100 kA
• Material: Powder Coated Steel
• Application: Commercial
• Operating Temperature: -10 to +60 °C
• Environmental Conditions: Storage temperature (-20 to +85 °C); Humidity (5 to 95% Non-Condensing)
• Dimensions: 7.5 inches H x 4.25 inches W x 3.25 inches D
• Mounting Type: Panel
• Enclosure Type: NEMA 3R
