Product Description

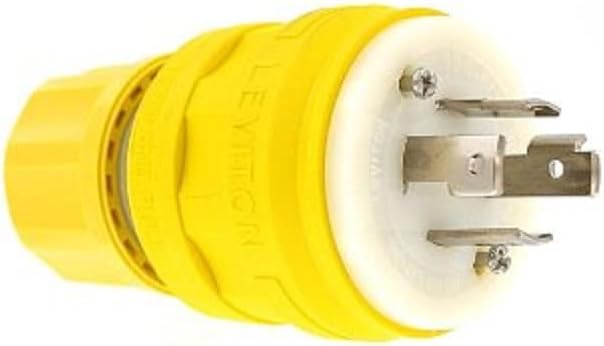

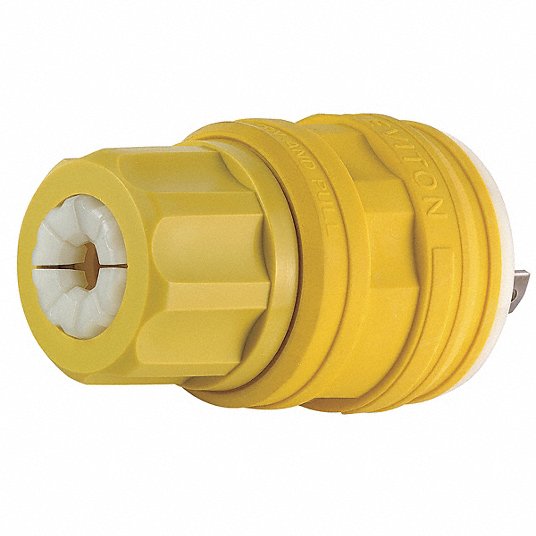

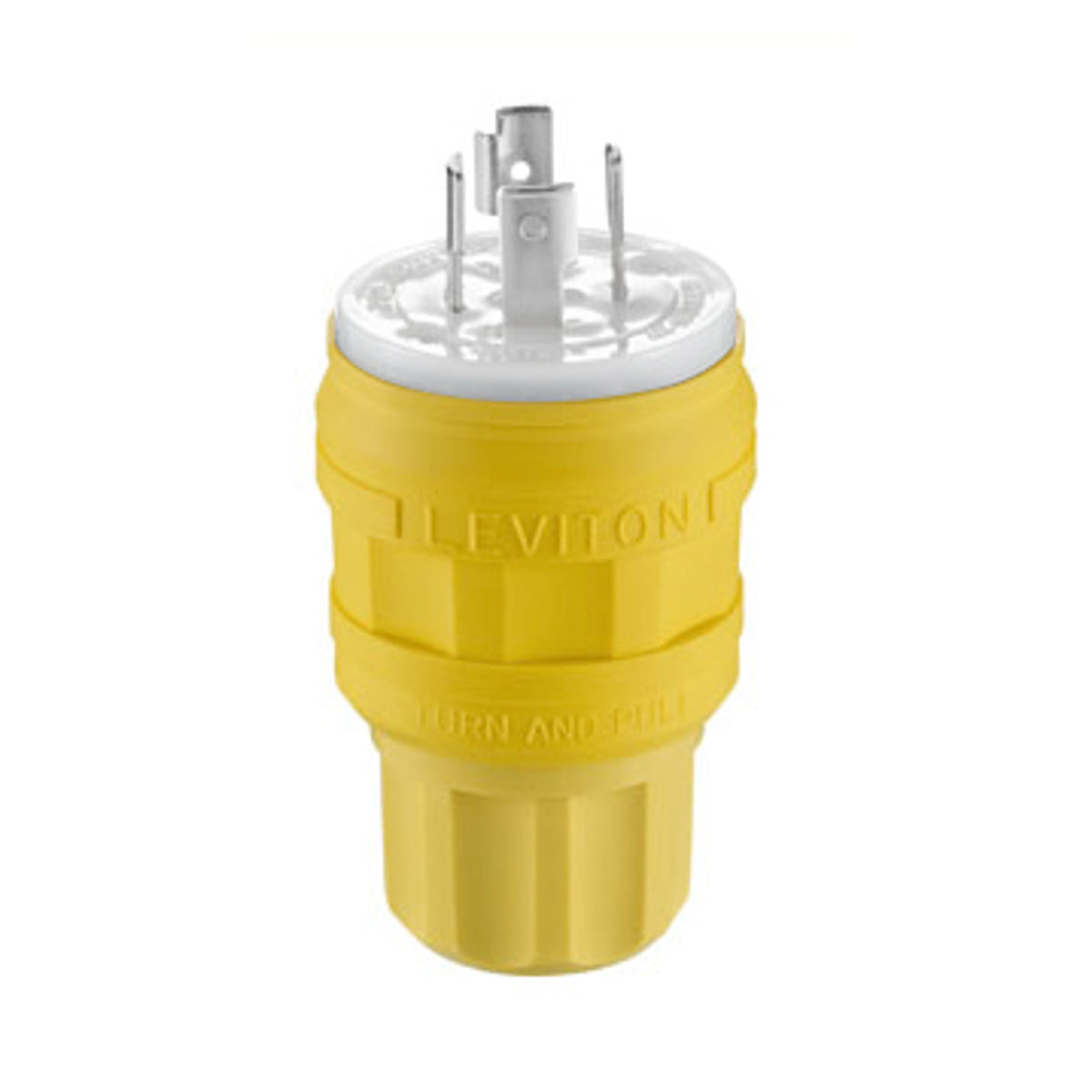

The Leviton 28W77 is a 30 Amp, 600 Volt locking plug designed for industrial use. This industrial grade, grounding, wetguard plug is suitable for cable mounting. It features screw terminal connections and is constructed from Santoprene TPV. Ideal for industrial applications and wet environments.
- Industrial Grade
- Grounding
- Wetguard
- Locking Plug
Product Highlights
The Leviton 28W77 locking plug is a robust solution for industrial applications, offering a watertight connection and reliable performance in demanding environments.
Product Information
Standard Information
-
Brand: Leviton
-
Manufacturer Part Number: 28W77
-
Country of Origin: Mexico
Technical Specifications
-
Color: Yellow
-
Voltage: 600 Volts
-
No. of wires: 3
-
Certification: NEMA
-
Connector Type: Plug in
-
Included Components: Leviton 28W77 WETGUARD PLUG
-
NEMA: WD-1, WD-6
-
Type: Watertight
-
Rating: UL 498
-
Actuator: Non-Magnetic,Stainless Steel
-
Amperage: 30 Amp
-
Material: Santoprene
-
Standard: ANSI C-73
-
Cord Type: SO, ST, STO, SOO
-
Grounding: Yes
-
IP Rating: IP66,IP67,IP69K
-
Sub Brand: Wetguard®
-
Wire Size: 12-8 AWG
-
Dielectric: 2000 V
-
Screw Type: Electroless,Nickel-Coated Brass,Stainless Steel, Non-Magnetic
-
Device Type: Locking Plug
-
Environment: Wet
-
Applications: For Industrial Use
-
Body Material: Santoprene TPV
-
Mounting Type: Cable
-
TC Connection: Screw Terminal
-
Terminal Size: #12-8 AWG
-
Connection Type: Screw Terminal
-
Number of Poles: 3 Pole
-
Number of Wires: 4 Wire
-
Contact Material: Nickel Plated Brass
-
Number of Phases: 3 Phase
-
Operating Temperature: -40 degrees C
-
Environmental Conditions: -40 to 60 C
-
Rated Insulation Voltage: 2000 V
-
Catalog Number: 28W77
-
Manufacturer: Leviton
-
Brand: Leviton
-
Phase: 3
-
UPC: 078477969045
-
GTIN: 00078477969045
-
Item Type: Watertight Plug;Locking
-
Voltage Rating: 600
-
Enclosure: IP67
-
Grade: Industrial
-
Terminal Type: Screw
-
Temperature Rating: -40 to 60 deg C
-
Current Rating: 30 A
-
Housing Material: Santoprene TPV
-
NEMA Plug Configuration: L17-30P
-
Blade Material: Nickel-Plated Brass
-
Connection Orientation: Straight
-
Face Diameter: 2.53 in
-
For Environment: Washdown
-
For Maximum Cable Diameter: 1.125 in
-
For Minimum Cable Diameter: 0.625 in
-
Maximum Wire Size: 8 AWG
-
Minimum Wire Size: 12 AWG
-
UL 94 Flammability Rating: V-2
-
Resistance Property: General Purpose
-
Assembly Screws: Stainless Steel, Non-Magnetic
-
Blades/Contacts: Electroless Nickel-coated Brass
-
Body Interior: Nylon
-
Bushing: Santoprene TPV
-
Compression Nut, Strain Relief: Nylon
-
Terminal Screws: Electroless Nickel-coated Brass
-
Wire Module: Nylon
-
Cord Grip Range (in): .625-1.125
-
Product ID: Ratings and NEMA I.D. permanently marked on device
-
Terminal Accom.: #12 to #8
-
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
-
ANSI: C-73
-
CSA C22.2 No. 42: File LR-406
-
NOM: 057
-
UL: 498
-
Maximum Operating Temperature: 60 Degrees C
-
Minimum Operating Temperature: -40 Degrees C
-
Voltage - Plugs and Receptacles: 600VAC
-
Hazardous Location Specification: Not Applicable
-
Country of Origin (subject to change): United States
-
NEMA Plug Configuration - Plugs and Receptacles: L17-30P
-
Housing Color: Yellow
-
Shrouded: No
-
Resistance Properties: Watertight
-
Market: Industrial
-
Item: Watertight Locking Plug
-
Amps - Plugs and Receptacles: 30A
-
Item - Plugs and Receptacles: Locking Plug
-
Grade - Plugs and Receptacles: Industrial
-
Number of Blades: 4
-
Polarized: Yes
-
Standards: ANSI C73, CSA C22.2 No. 42 File LR-406, NEMA WD-6, NOM 057 Certified, UL 498
-
Flammability: Rated V-2 per UL 94
-
Wiring Style: Standard
-
Pole: 3
-
Cord Diameter: 5/8 to 1-1/8 in
-
Temp. Rise: Max 30C after 250 cycles OL at 200 percent rated current
