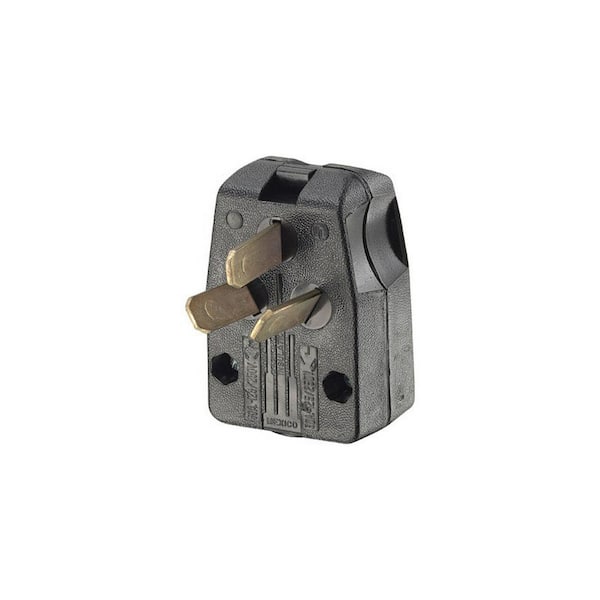

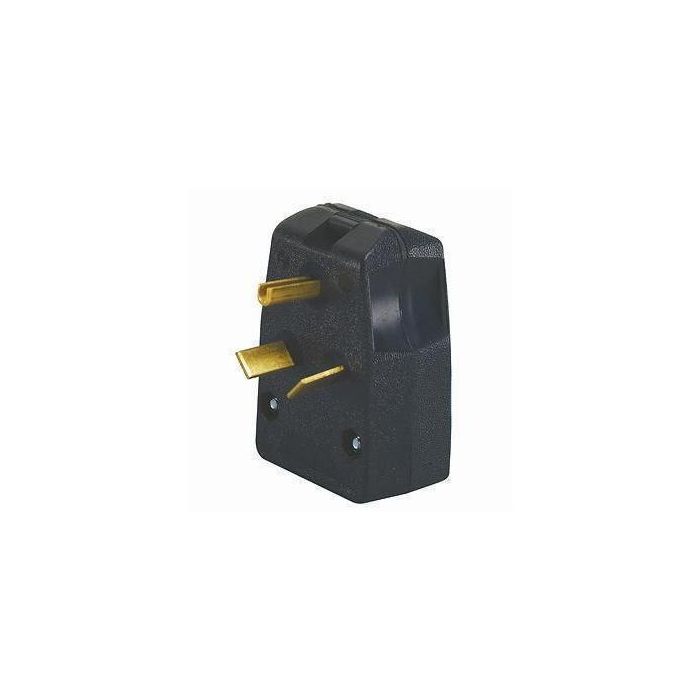

Leviton 287t dual power straight blade angle plug 30/50 a

Product Description

The Leviton 287T dual power straight blade angle plug is a commercial-grade plug available in a wide variety of features. These rugged performers are moisture, chemical, and abuse-resistant, and ideal for indoor and outdoor use. The deep-slotted, backed-out terminal screws draw backwire clamps securely over stripped leads for maximum conductivity.

• Offers optimum conductivity with solid brass blades
• Built-in rejection prevents loose contact of the plug
• Thermoplastic construction resists impact

Product Highlights

This straight blade angle plug features solid brass blades and a thermoplastic construction that resists impact.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: 287T
• Country of Origin: Mexico

Technical Specifications

• Brand: Leviton
• Color: Black
• Voltage: 125/250 Volts
• Material: Thermoplastic
• Connector Type: Plug in
• Number of Poles: 3
• Number Of Wires: 3
• Amperage: 50 Amps
• Specification Met: Ul, Ansi
• NEMA Rating: NEMA 10-30P/10-50P
• Temperature Rating: -40 to 60
• Type: Angled Cable Mount Non-Grounding
• Voltage Rating: 250
• Rating - Amps: 30/50A
• Rating - Volts: 125/250V
• Ground: Non-Grounding
• Cord Diameter: 0.687 - 1.050
• Grade: Commercial
• Amperage Rating: 30 A, 50 A
