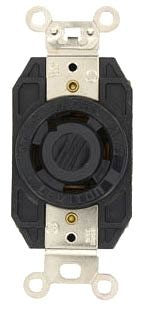

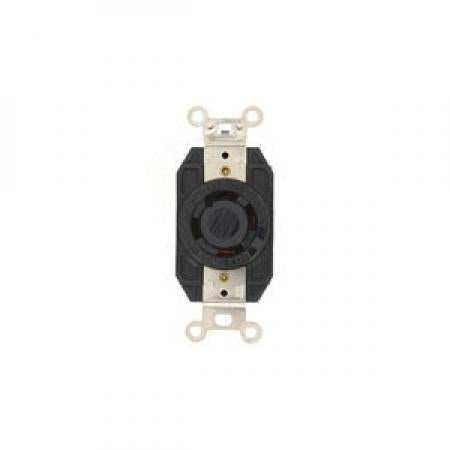

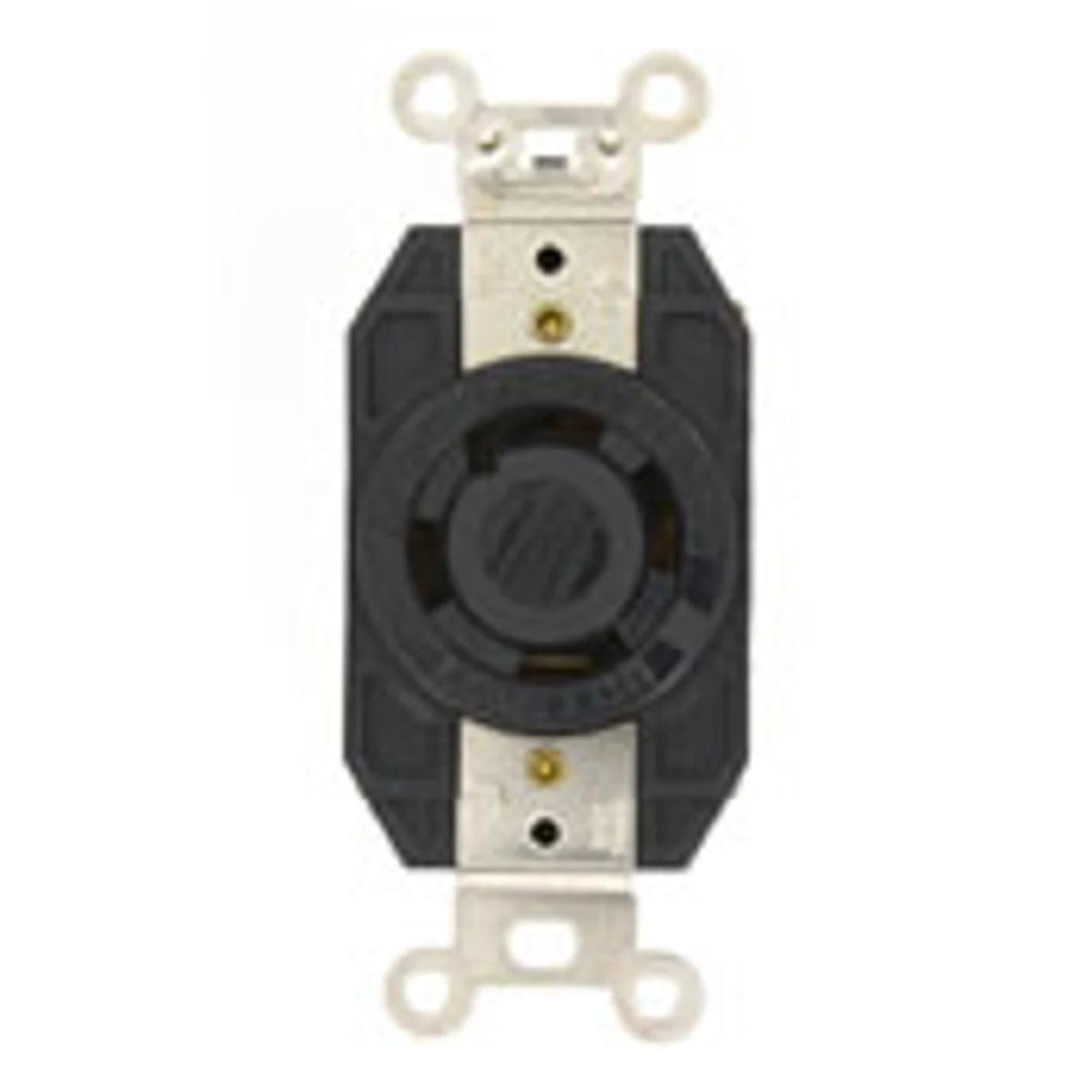

Leviton 2770 Locking Receptacle 30-Amp 347/600-Volt 3PY Replacement MPN

Product Description

The Leviton 2770 is a locking receptacle designed for use in industrial settings. It supports three-phase Y non-grounding applications with a voltage rating of three hundred forty-seven and six hundred volts and handles thirty amperes. This unit features four poles and four wires, making it suitable for various industrial equipment.

• Rated for 30 amperes and designed for industrial applications.
• Dimensions: 3.63 inches high by 1.69 inches wide by 1.31 inches deep.
• Constructed from durable polybutylene terephthalate.

Product Highlights

The 2770 receptacle is designed for reliability in harsh environments, rated for temperatures from negative forty to sixty degrees Celsius. It's equipped with back and side wire terminals for flexible installation options.

Product Information

Standard Information

• Catalog Number: 2770
• Manufacturer: Leviton

Technical Specifications

• NEMA Rating: L20-30R
• Amperage Rating: 30 A
• Voltage Rating: 347;600 VAC
• Application: Industrial
• Temperature Rating: -40 to +60 DEG C
• Material: PBT
• Mounting: Box
• Number of Poles: 4
• Number of Wires: 4
• Wire Size: 14-8 AWG
