Leviton 2743 Locking Connector 600VAC 30A 3 Poles 4 Wires

Product Description

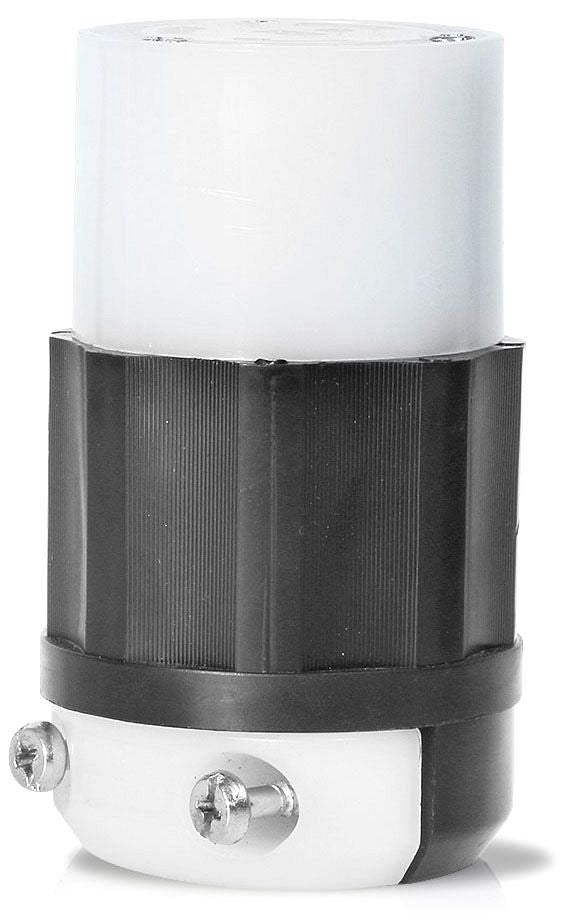

Leviton Locking Connector 2743 is a reliable connector designed for use in industrial applications. It supports three-phase grounding with a voltage rating of six hundred volts and an amperage rating of thirty amps. This connector features a rugged nylon construction and is suitable for cords with a diameter ranging from zero point five nine five inches to one point fifteen inches.

• Voltage Rating: 600 VAC
• Amperage Rating: 30 A
• NEMA Rating: L17-30R

Product Highlights

This connector meets standards set forth by ANSI, CSA, and UL, ensuring dependable performance in a variety of conditions. It is engineered for installation convenience with a screw terminal type connection.

Product Information

Standard Information

• Manufacturer: Leviton
• Type: 3-Phase Grounding Cable Mount

Technical Specifications

• Color: Black/White
• Material: Nylon
• Number of Poles: 3
• Number of Wires: 4
• Temperature Rating: -40 to 60 degrees C
• Dimensions: 2.22 inches Diameter x 3.78 inches Length
• Cord Diameter: 0.595 to 1.15 inches
• Approval Standards: UL 498, CSA C22.2, NOM 057
