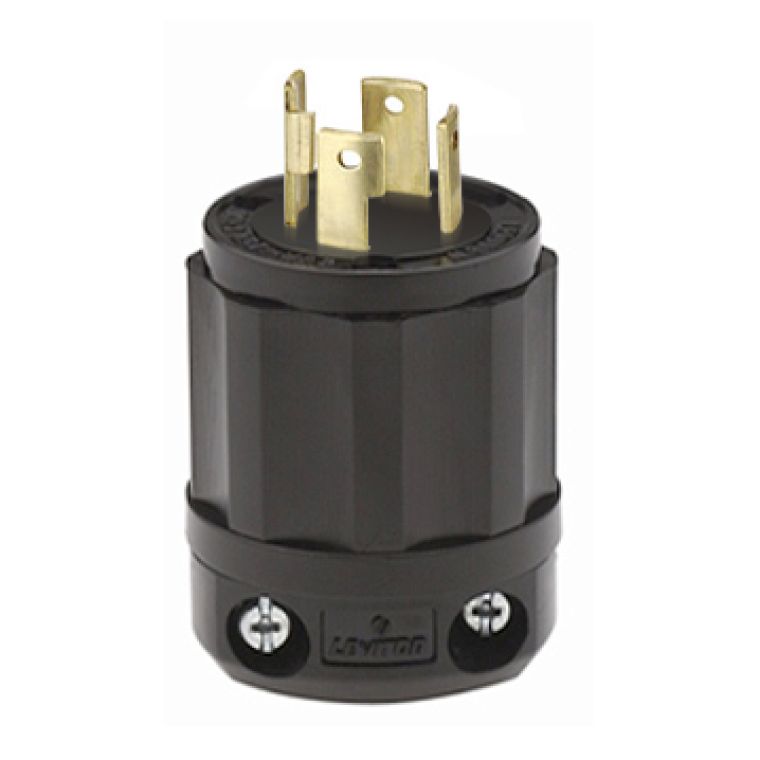

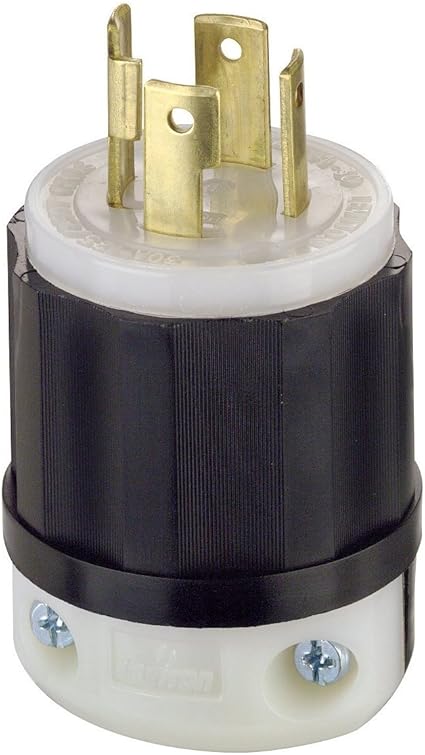

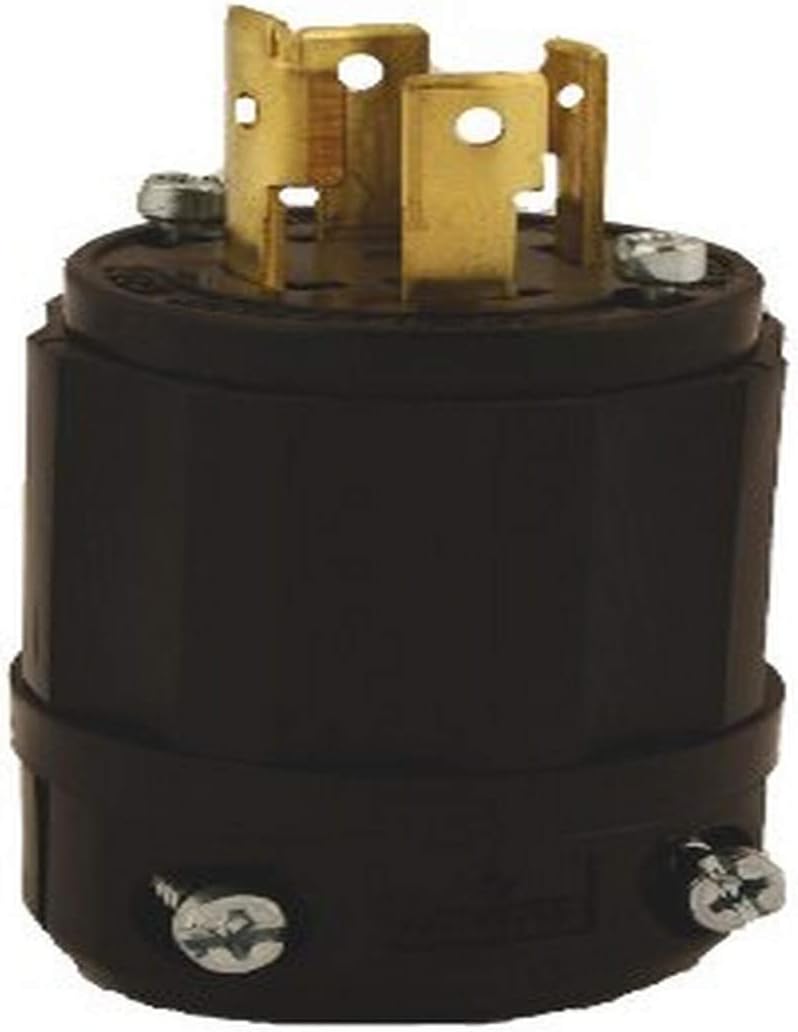

Leviton 2711-B Locking Plug 30 Amp, 125/250 Volt NEMA L14-30P

Product Description

The Leviton 2711-B locking plug is a 30 Amp, 125/250 Volt, NEMA L14-30P, 3P, 4W, industrial grade grounding plug. This plug features one-piece contacts to reduce friction and overheating. Its rugged nylon construction resists impact, sunlight, chemicals, and rough use, ensuring long-lasting performance.

• 30 Amp, 125/250 Volt
• NEMA L14-30P
• Rugged nylon construction resists impact, sunlight, chemicals, and rough use

Product Highlights

Industrial grade locking plug with one-piece contacts and a rugged nylon build.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: 2711-B
• Country of Origin: Mexico

Technical Specifications

• Color: Black
• Voltage: 250 Volts
• Material: Nylon
• Certification: NEMA
• Number Of Poles: 3
• Batteries Included?: No
• UPC: 078477142981
• Nema: L14-30P
• RoHS Compliant: Yes
• AC Horsepower Ratings At Rated Voltage: 2 HP L-L / 2 HP L-N
• Amperage: 30 A
• Current Interrupting: Certified for current interrupting at full rated current
• Dielectric Voltage: Withstands 2000V per UL498
• Grounding: Grounding
• Pole: 3
• Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
• Wire: 4
• Environment: Dry
• Flammability: Rated HB or better UL94
• Operating Temperature: -40 C to 60 C
• Assembly Screws: Steel, Zinc Plated
• Back Cover: Thermoplastic
• Blades/Contacts: Solid Brass
• Body Material: Impact Modified Nylon
• Clamp Insert: Nylon
• Cord-Clamp: Nylon
• Terminal Screws: Brass
• Wire Module: Nylon
• Cord Range: .595 - 1.150
• Product ID: Ratings are permanently marked on device
• Terminal Accom.: 14-8 AWG
• Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
• Brand: Black and White
• Device Type: Locking Plug
• NEMA: WD-6
• ANSI: C-73
• CSA C22.2 No. 42: File LR-406
• NOM: 057
• UL Fed Spec WC-596: File E13393
• UL498: File E13393
• Plug Type: NEMA L14-30P
• Product Grade: Industrial
• Specification Met: NEMA
• Number Of Wires: 3
• Brand Name: Leviton
• Manufacturer Part Number: 2711-B
• Connector Type: Plug in
