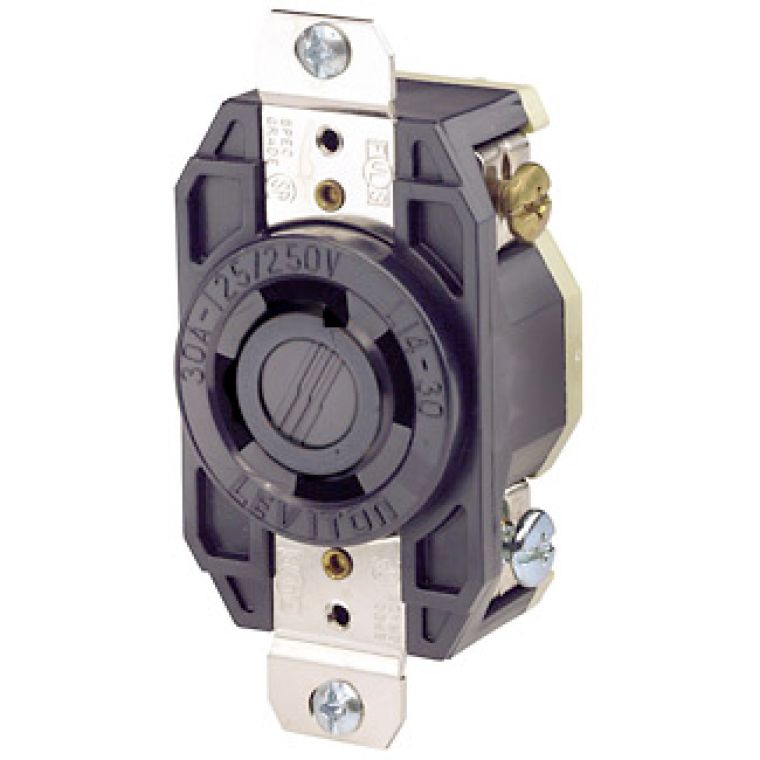

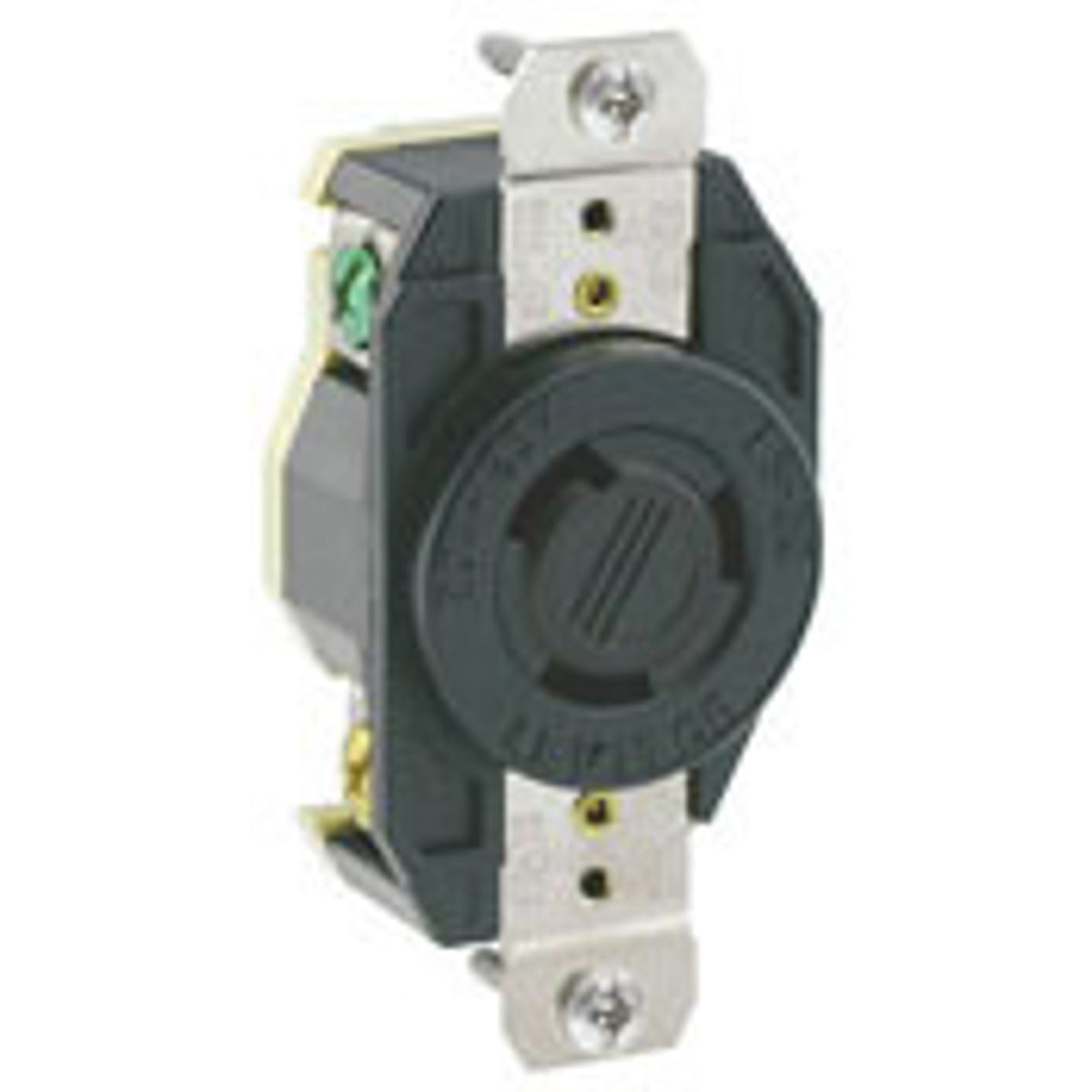

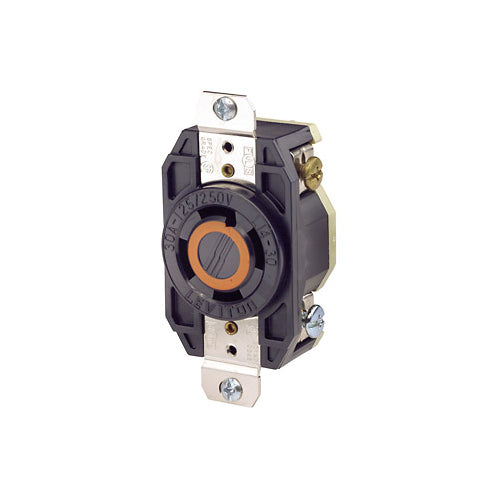

Leviton 2710-B Flush Mounting Locking Receptacle 30-Amp 125/250 Volt

Product Description

The LEVITON 2710-B is a flush mounting locking receptacle designed for industrial use. This industrial grade receptacle provides a safe and secure power connection. It is ideal for commercial applications requiring a reliable and durable locking mechanism. Built for unparalleled quality and superior performance in severe industrial settings.

• Box mounting
• 14 to 8 AWG terminal accommodation
• Flush mount

Product Highlights

Industrial grade locking receptacle for commercial applications. Provides a safe and secure power connection.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: 2710-B
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: 2710-B
• Manufacturer: Leviton
• Brand: Leviton
• Sub Brand: V-0-Max
• Country of Origin: Mexico
• Made in USA: No
• Amperage Rating: 30
• Application: Commercial
• Color: Black
• Connection: Back Wired;Side Wired
• Material: PBT
• Mounting: Box
• NEMA Rating: L14-30R
• Number of Outlets: 1
• Number of Poles: 3
• Number of Wires: 4
• Standard: NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File LR-406);UL Fed Spec WC-596 (File E13399);UL Listed 498 (File E13399)
• UPC: 078477131176
• GTIN: 00078477131176
• Item Type: Flush Mount Locking Receptacle
• Width: 1.69
• Width UOM: Inch
• Height: 3.63
• Height UOM: Inch
• Depth: 1.31
• Depth UOM: Inch
• Size: 3.63 H x 1.69 W x 1.31 D
• Environmental Conditions: Flammability (Rated V-2, Rated V-0 per UL94)
• Temperature Rating: -40 to +60 DEG C
• Voltage Rating: 125;250
• Wire Size: 14-8 AWG
• Manufacturer Item Status: Active
• Manufacturer Name: Leviton
• Alternative Part Number: 7349999
• Amperage Rating UOM: A
• Country: USA|Canada
• Dimensions: 3.63 in H x 1.69 in W x 1.31 in D
• Grade: Industrial
• Horsepower: 2
• Horsepower UOM: hp
• IDEA Index ID: 7349999
• Terminal Type: Back/Side Wire
• Type: Grounding
• Voltage Rating UOM: VAC
• RoHS Compliant: Yes
• AC Horsepower Ratings At Rated Voltage: 2 HP L-L / 2 HP L-N
• Current Limiting: Full Rated Current
• Dielectric Voltage: Withstands 2000V per UL498
• Pole: 3
• Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
• Voltage: 125/250 VAC
• Wire: 4
• Environment: Corrosive
• Flammability: Rated V-0 per UL 94
• Operating Temperature: -40 00b0C to 60 00b0C
• Base Material: Valox
• Face Material: Ultramid
• Grounding Screw: Brass 8-32
• Line Contacts: Brass .040 Thick
• Strap Material: Nickel-Plated Brass
• Terminal Screws: Brass 10-32
• Yoke: Nickel-Plated Brass .050 Thick
• Product ID: Ratings and NEMA I.D. permanently marked on device
• Screw Terminal Torque: 14-18 in-lbs
• Terminal Accom.: 14-8 AWG
• Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
• Termination: Back & Side
• Device Type: Locking Receptacle
• NEMA: WD-6
• ANSI: C-73
• CSA C22.2 No. 42: File LR-406
• NOM: 057
• UL Fed Spec WC-596: File E13399
• UL498: File E13399
