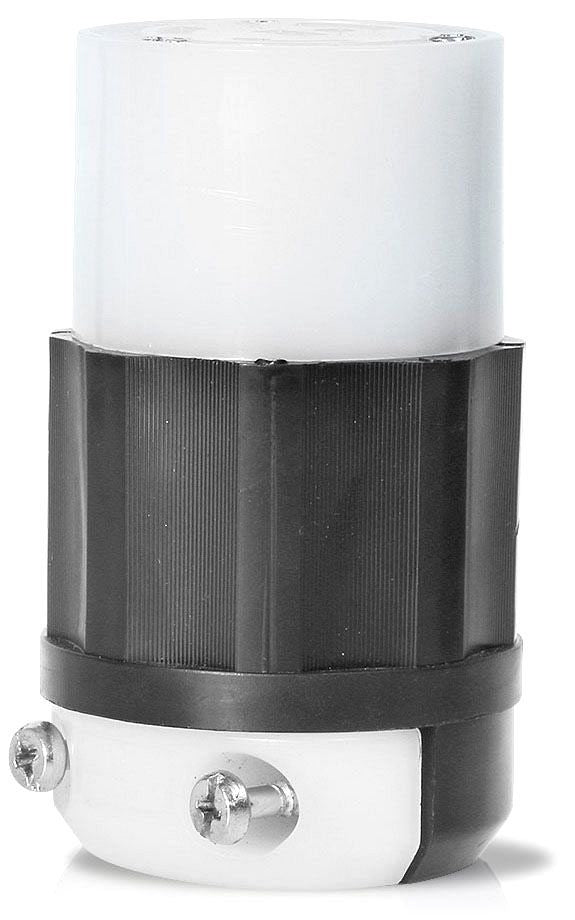

Leviton 2663 Locking Device Connector 30A 125/250V NEMA L10-30R

Product Description

The Leviton locking device connector 2663 is designed for efficient power connections in industrial settings. Compatible with NEMA L10-30R requirements, it operates at 30 Amperes and can handle voltage ratings of 125/250 VAC. The sturdy nylon construction ensures resistance to impacts and chemicals.

• Ergonomic fluted body design for improved grip.
• Integrated green LED for power indication.
• Durable nylon material with screw terminal type.

Product Highlights

This locking connector is ideal for industrial applications requiring reliable power connection. Its robust design withstands harsh environments and provides a secure electrical connection.

Product Information

Standard Information

• Approval: UL 498, CSA C22.2, NOM 057
• Configuration: L10-30R

Technical Specifications

• Amperage Rating: 30 A
• Voltage Rating: 125/250 VAC
• Number Of Poles: 3
• Number Of Wires: 3
• Temperature Rating: -40 to 60 deg C
• Cord Diameter: 0.385 to 0.93 inches
• NEMA Rating: L10-30R
