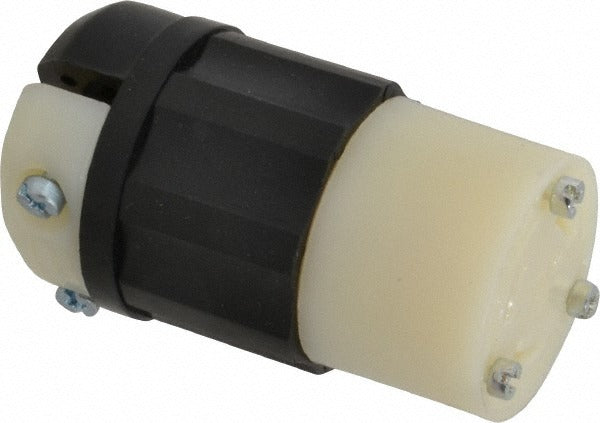

Leviton 2613-PLC Locking Connector L5-30R 125V 20A

Product Description

The LEVITON 2613-PLC is an industrial-grade locking connector rated for 125 volts and 20 amps in an L5-30R NEMA configuration. Built from glass-filled nylon with a self-grounding design, it provides a secure, twist-lock termination point for portable power cords in demanding jobsite and facility environments. The 2-pole, 3-wire construction supports single-phase grounded circuits. Licensed electricians and facilities maintenance technicians install this connector as the cord-end device on portable equipment, temporary power drops, and generator hookup assemblies.

The 2613-PLC is suited for industrial and commercial applications where a NEMA L5-30R locking connector is specified. Typical installations include portable generators, transfer switch cord sets, temporary construction power, and heavy-duty portable equipment operating on 125-volt single-phase circuits. The connector accepts cord diameters from 0.385 inches minimum to 0.860 inches maximum, covering a wide range of SOOW and STW cord sizes commonly used in trade work.

Key Features

• NEMA L5-30R locking configuration ensures a secure twist-lock connection that resists accidental disconnection
• Industrial grade nylon body resists impact, moisture, and jobsite chemicals
• Self-grounding design simplifies termination and maintains ground continuity
• Accepts cord diameters from 0.385 inches to 0.860 inches for broad cord compatibility
• Meets ANSI C-73, UL 498, CSA C22.2 No. 42, NEMA WD-6, and NOM 057 standards
• Single-phase 2-pole 3-wire wiring configuration for standard grounded 125-volt circuits

Compatibility

Designed for use with NEMA L5-30R locking wiring systems on 125-volt single-phase grounded circuits. Compatible with cord assemblies requiring a 30-amp twist-lock connector termination.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and lock out the circuit before disassembling any cord-end connector. Strip and terminate conductors per the connector manufacturer instructions, observing proper conductor length and insulation clearance. Do not exceed the rated 20-amp continuous load capacity of the connector.
