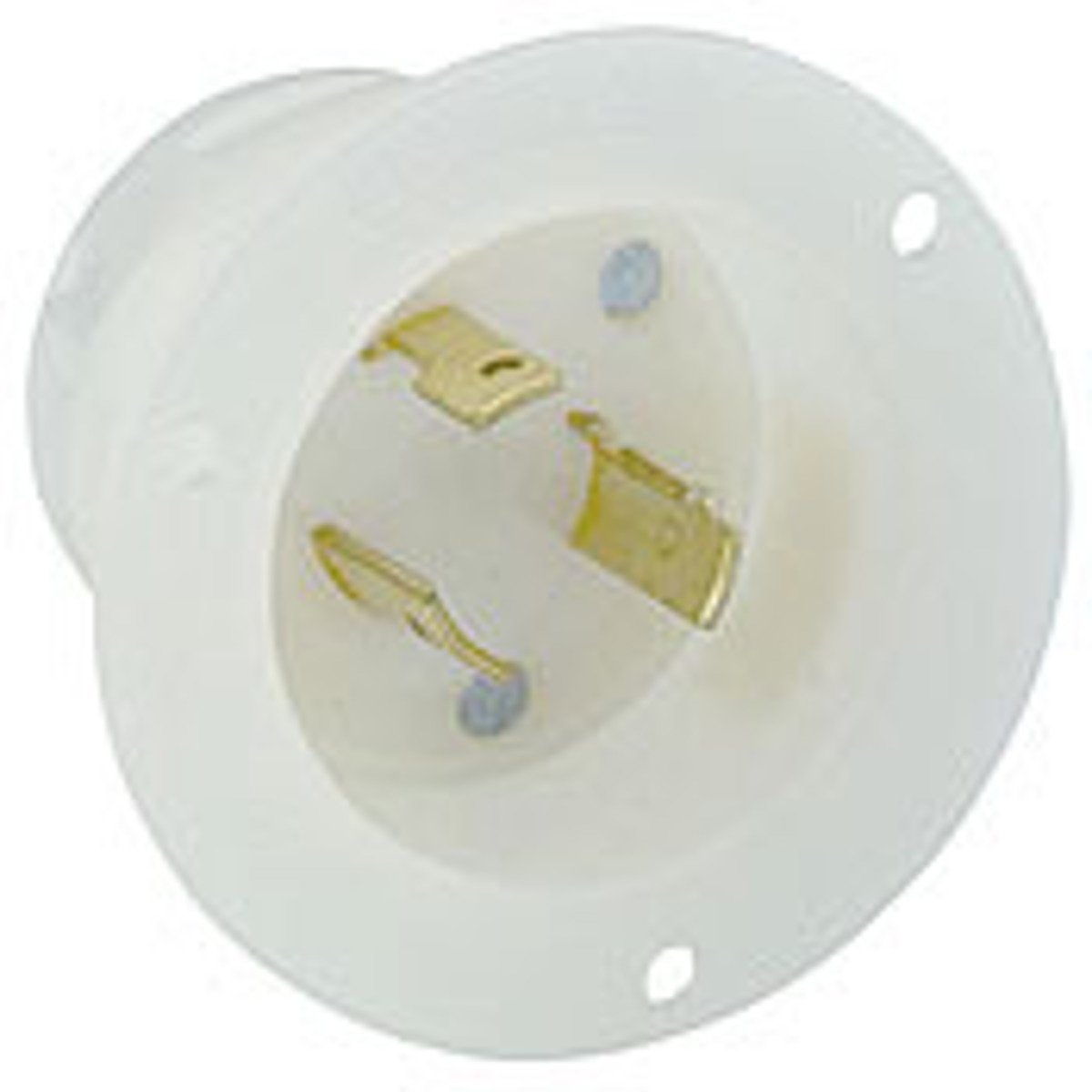

Leviton 2315 Inlet Flanged 2Po 3Wi L

Product Description

The Leviton 2315 is an industrial grade locking flanged inlet. This grounding receptacle supports 125V AC and 20A. Constructed from nylon, it features back wire connection and is suitable for commercial applications. It is designed for superior performance and long lasting reliability.

• Industrial Grade
• NEMA L5-20P configuration
• Back wired connection

Product Highlights

The Leviton 2315 flanged inlet is ideal for industrial and commercial applications requiring a reliable and durable locking connection.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: 2315
• Country of Origin: Mexico

Technical Specifications

• NEMA: L5-20P
• Type: Grounding Receptacle
• Brand: Leviton
• Color: White
• Voltage: 125 VAC
• Amperage: 20 Amp
• Material: Nylon
• Standard: ANSI C-73
• Grounding: Grounding
• Wire Size: 18-10 AWG
• Horsepower: 1 hp
• Applications: For Commercial
• Body Material: Nylon
• Face Material: Nylon
• Mounting Type: Flange
• Connection Type: Back Wired
• Number of Poles: 2 Pole
• Number of Wires: 3 Wire
• Contact Material: Solid Brass
• Termination Type: Back Wire
• Temperature Rating: -40 degrees C to 60 degrees C
• Application: Commercial Applications
• Grade: Industrial
• Terminal Type: Back Wire
• Voltage Rating: 125 VAC
• HP: 1 HP
• Amps: 20 A
• Standards: File E13393
• Flammability: Rated V-2 per UL 94
• Operating Temp.: -40A Deg C to 60A Deg C
• NEMA Configuration: L5-20P
• RoHS Compliant: Yes
• Horsepower Rating: 1 HP
• Current Limiting: Full Rated Current
• Dielectric Voltage: Withstands 2000V per UL498
• Pole: 2
• ANSI: C-73
• AWG Range: 16 - 8 AWG
• No. of Wires: 3
• Rated Voltage: 125V
• Color Family: White
• No. of Poles: 2
• Volts AC: 120
