Product Description

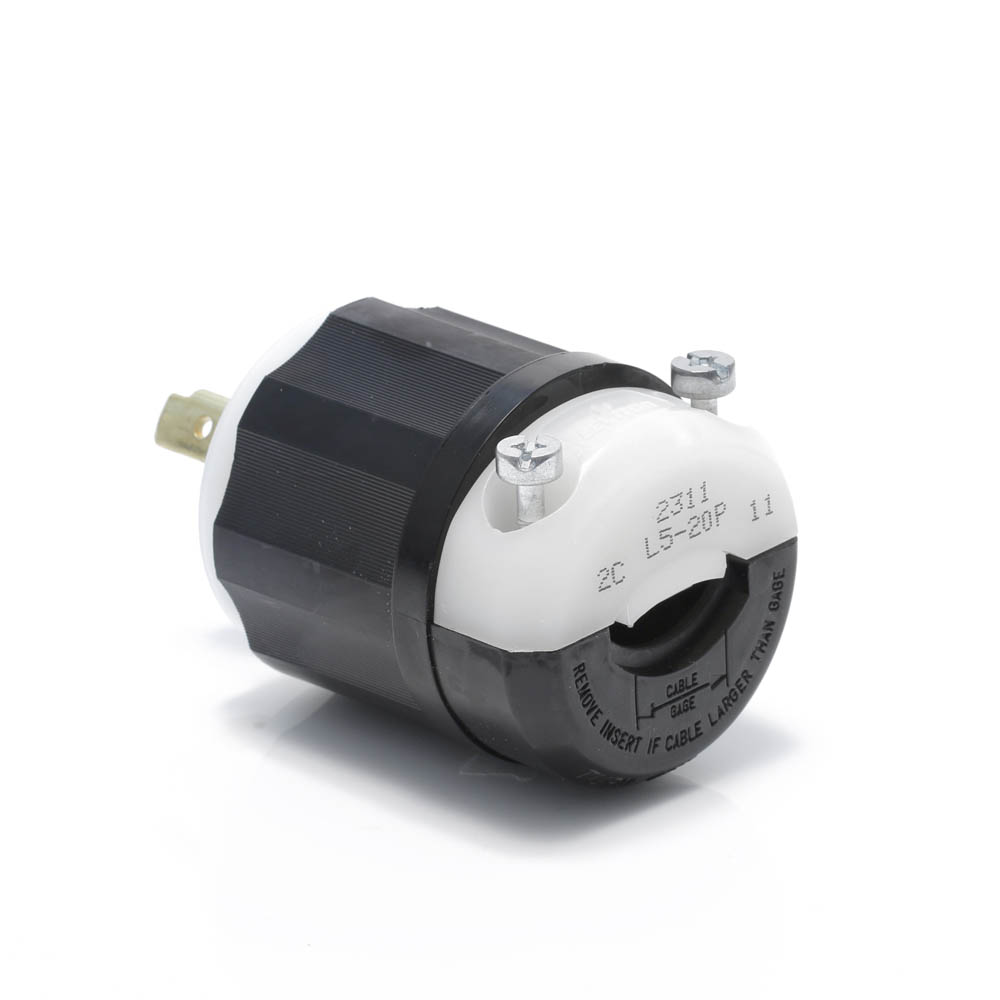

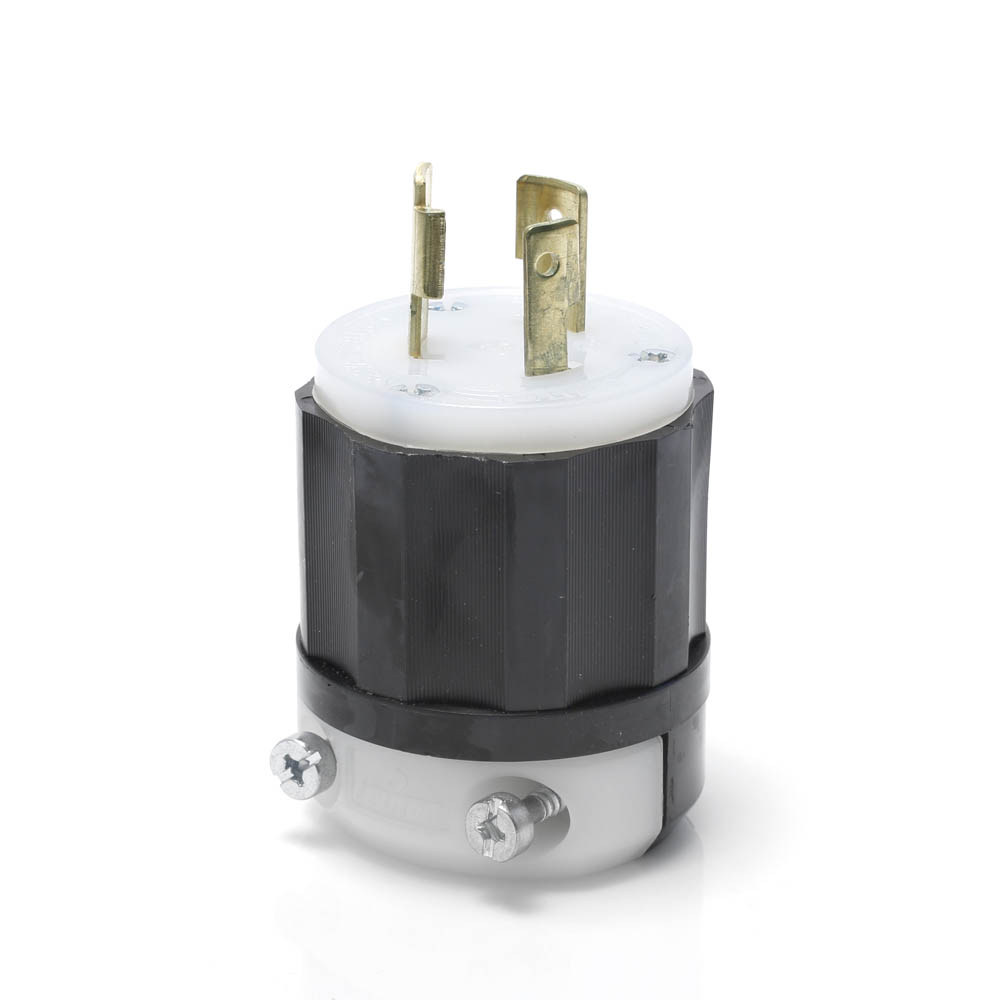

The LEVITON 2311 locking plug is a 1-Phase Grounding Cable Mount, designed for industrial use. Rated at 125 VAC and 20 A, this plug can handle up to 1 hp. Constructed from durable nylon, it withstands temperatures from -40 to 60 deg C. The plug features a screw terminal for secure connections and fits cord diameters from 0.385 to 0.78 inches.
- 1-Phase Grounding Cable Mount
- NEMA L5-20P NEMA Rating
- Screw Terminal
Product Highlights
Industrial-grade locking plug with robust construction for reliable performance in demanding environments.
Product Information
Standard Information
-
Brand: LEVITON
-
Manufacturer Part Number: 2311
-
Country of Origin: US
Technical Specifications
-
Type: Electrical Plug
-
Grade: Industrial
-
Material: Nylon
-
Horsepower: 1 hp
-
NEMA Rating: NEMA L5-20P
-
Voltage Rating: 125 VAC
-
Amperage Rating: 20 A
-
Number of Poles: 2
-
Number of Wires: 3
-
Temperature Rating: -40 to 60 deg C
-
Cord Diameter: 0.385 to 0.78 in
-
Terminal Type: Screw
-
Standard: UL
-
Wire Size: 16 to 10 AWG
-
Connection: Screw terminal
-
Environmental Conditions: Dry Location
-
Configuration: L5-20P
-
Current Rating: 20 Ampere
-
Ground Type: Grounding
-
Approval: UL 498, CSA C22.2, NOM 057
-
Application: Industrial
-
Manufacturer Part Number: 2311
-
Standards/Approvals: ANSI C73|CSA C22.2 No.42 File No. LR406|NOM 057|NEMA WD1/WD6|UL 498 File No. E13393|Federal Specification WC596|UL94 V-2 Flammability Rating
-
Manufacturer Item Status: Active
-
Manufacturer Name: Leviton
-
Brand Name: Leviton
-
UPC: 078477800942
-
GTIN: 00078477800942
-
Alternative Part Number: 7327089
-
Amperage Rating UOM: A
-
Cord Diameter UOM: in
-
Country: USA|Canada
-
Country Of Origin: US
-
Horsepower UOM: hp
-
IDEA Index ID: 7327089
-
Temperature Rating UOM: deg C
-
Voltage Rating UOM: VAC
-
Nema: L5-20P
-
RoHS Compliant: True
-
Pole: 2
-
Wire: 3
-
Voltage: 125 VAC
-
Back Cover: Thermoplastic
-
Cord-Clamp: Nylon
-
Wire Module: Nylon
-
Clamp Insert: Nylon
-
Cord Range: 0.385 to 0.720
-
Product ID: Ratings are permanently marked on device
-
Wire Gauge: 16-10 AWG
-
Body Material: Impact Modified Nylon
-
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
-
Torque Range: 10-14 in-lbs
-
Assembly Screws: Steel, Zinc Plated
-
Blades/Contacts: Solid Brass
-
Terminal Screws: Brass
-
Flammability: Rated HB or better UL94
-
Terminal Accom.: 18-10 AWG
-
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
-
Dielectric Voltage: Withstands 2000V per UL498
-
Current Interrupting: Certified for current interrupting at full rated current
-
Operating Temperature: -40
C to 60
C
-
Phase: 1 Phase
-
UNSPSC: 39121402
-
Mounting: Cable
-
Sub Brand: Black & White
-
Description: LEV 2311 LKG PLUG L5-20P #2CD
-
Substitutes: 14849
-
Box Quantity: 10
-
Product Name: Locking Device Plug
-
Commodity Code: 5130
-
Stripped Catalog Number: 2311
-
Catalog Description (MFR): 20 Amp, 125 Volt, NEMA L5-20P, 2P, 3W, Locking Plug, Industrial Grade, Grounding - Black-White
-
Invoice Description (MFR): EB PLUG LOCK 2PO 3WI L5-20P 20A125V
-
Safety Data Sheet (SDS) Flag: Y
-
Buy American Act (BAA) Compliant: C
-
Concatenated Invoice Description: EB PLUG LOCK 2PO 3WI L5-20P 20A125V
-
American Recovery and Reinvestment Act (ARRA) Compliant: C
-
Connector Type: Plug in
-
Plug Type: NEMA L5-20P
-
Product Grade: Industrial
-
Specification Met: NEMA
-
Rated Insulation Voltage: 2000 V
-
Input Voltage: 120 V
-
Maximum Input Current: 16 -20 A
-
Gender: Male
-
Smart Home Compatibility: Not Applicable/Not Available
-
Number of Outlets: 1
-
Features: Heavy Duty, Locking Plug
-
Maximum Compatible Appliance Wattage: 100-200 W
-
Smart Home Protocol: Not Applicable/Not Available
-
Output Voltage: 125 V
-
Voltage Conversion: Not Applicable/Not Available
