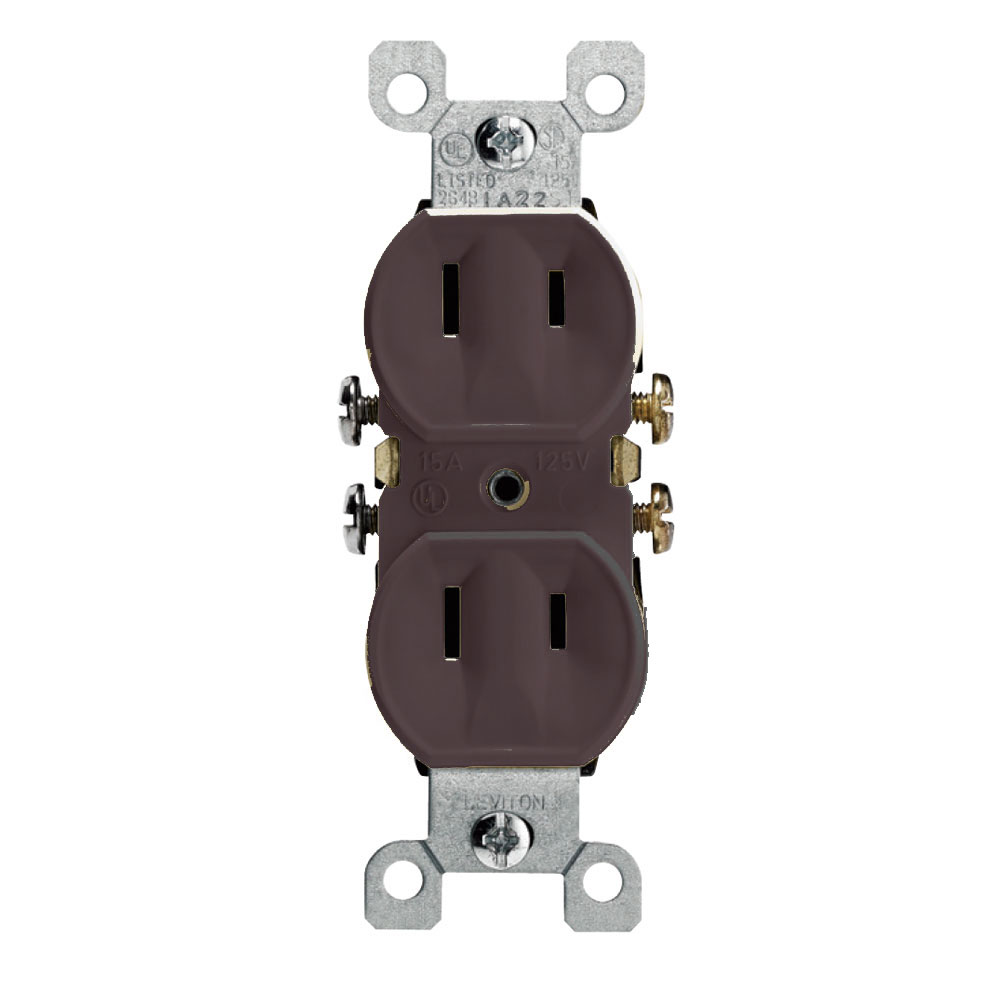

Leviton 223 Non-Grounding Straight Blade Duplex Receptacle 15 Amp 125 VAC

Product Description

The Leviton Duplex Receptacle, model 223, is a reliable and practical choice for residential electrical systems. This receptacle handles up to fifteen amps and operates at one hundred twenty-five volts. It features a NEMA 1-15R design, making it suitable for various applications.

• Duplex design for versatile use
• Side wired for easy installation
• UL listed for safety compliance

Product Highlights

This receptacle is made from durable thermoplastic material and includes a steel strap for added strength. It is non-grounding, with two poles and two wires.

Product Information

Standard Information

• Brand: Leviton
• Model Number: 223

Technical Specifications

• Amperage: 15 A
• Voltage: 125 VAC
• NEMA Rating: NEMA 1-15R
• Body Material: Thermoplastic
• Number of Poles: 2
• Number of Wires: 2
• Dimensions: 4.06 inches H x 1.33 inches W x 0.9 inches D
• Torque Rating: 14 lb-in
• Temperature Rating: -40 to 60 degrees Celsius
• Certifications: UL Listed
• Warranty Length: 2 years
• Country of Origin: US
