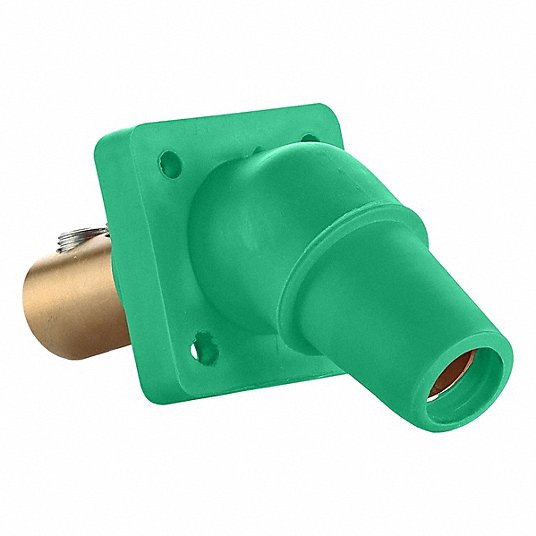

Leviton 16R28-UG Female Receptacle 45-Degree 2/0 - 4/0 AWG Double Set Screw

Product Description

The Leviton 16R28-UG is a Rhino-Hide single pole cam-type connector that supplies temporary electrical power for indoor and outdoor applications. These devices are designed for easy assembly and disassembly, without special tools. It is ideal for use in equipment associated with concerts, movie-making, and television production.

• Single or double set screw or crimp tube termination
• NEMA 3R rated for outdoor use when mated
• Designed with cylindrical profile to reduce snap

Product Highlights

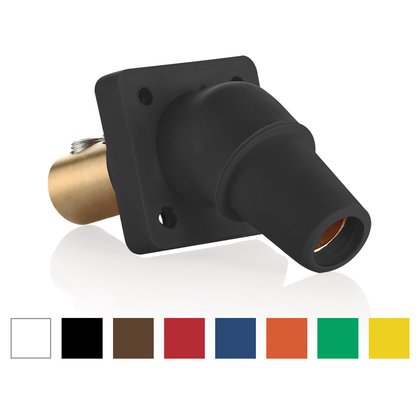

The Leviton 16R28-UG connectors are color-coded for fast and easy phase identification. Common applications include entertainment, oil and gas, and construction sites.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: 16R28-UG
• Country of Origin: Mexico

Technical Specifications

• Max. Amperage: 400 Amp
• Max. Voltage: 600 Volt
• Contacts: Brass
• Cable Range: 2/0 – 4/0 AWG
• Connection Type: Double Set Screw
• Gender: Female
• NEMA Rating: Type 3R
• Brand: LEVITON
• Material: Brass
• Voltage: 600 Volts
• Connector Type: Plug In
• Total Power Outlets: 1
• Specification Met: CSA, NEMA, UL
• Manufacturer: Leviton Mfg. Company, Inc
• Manufacturer Part Number: 16R28UG
• Product Line: Rhino-Hide
• Product Name: Female Receptacle, 45-Degree, 2/0 - 4/0 AWG, Double Set Screw Termination
• Product Series: 16
• Product Type: Power Socket
• Current Rating: 400 A
• Voltage Rating: 600V AC
• Series: 16
• Connection Orientation: Angled
• End Type: Taper
• Flange Height: 2.29 in
• Flange Shape: Square
• Flange Width: 0.5 in
• Housing Material: Santoprene TPV
• Maximum Wire Size: 4/0 AWG
• Minimum Wire Size: 2/0 AWG
• Mounting Location: Surface
• Mounting Style: Threaded
• NEMA Enclosure Rating: 3R
• Phase: Single
• Receptacle Gender: Female
• For Male: Plugs
• Standards: CSA 1691; UL 1691
• Termination Type: Double Set Screw
• Wire Size Range: 2/0 AWG – 4/0 AWG
• Overall Length: 3.62 in
• Overall Width: 2.29 in
• Suitable For: Exterior, Interior, Wall
• Type: Panel Receptacle
• Model: 16R28-UG
• Application: Commercial, Industrial
• UPC: 078477718261
• Country of Origin: Mexico
