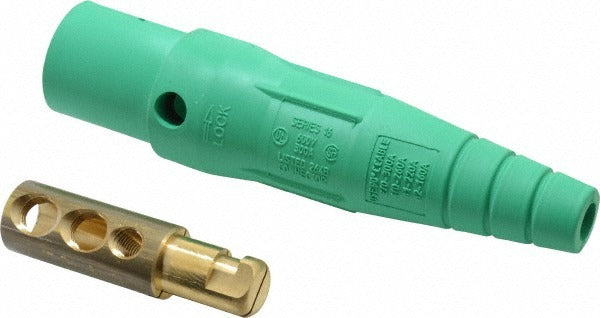

Leviton 16D22-UG Cam Single Pole Male Plug 300A 600V

Product Description

The LEVITON 16D22-UG is a single-pole male cam plug rated for 300 amps at 600 volts, built for heavy-duty temporary power and permanent distribution applications. It accepts wire sizes from 2 AWG to 2/0 AWG via a double set screw termination, providing a secure, vibration-resistant connection without soldering or crimping. The housing carries a NEMA 3R rating, meaning it is suitable for outdoor use where exposure to falling rain and sleet is a concern. Overall length is 7.01 inches. Electricians use this connector on portable power distribution equipment, generators, load banks, and temporary event power systems where single-pole cam-style connections are the standard interface.

This plug is intended for single-pole cam-style power distribution in both residential service entrance and commercial or industrial temporary power setups. The NEMA 3R enclosure rating makes it appropriate for outdoor distribution panels, portable power boxes, and generator output circuits. It is color-coded green, which is the standard cam connector color designation for its rated application. Licensed electricians performing temporary power work, generator hookups, or service entrance work are the primary installers.

Key Features

• 300 amp, 600 volt single-pole male cam connector for high-current power distribution
• Double set screw termination accepts 2 AWG to 2/0 AWG conductors without crimping tools
• NEMA 3R rated housing for outdoor and wet-location use
• 7.01 inch overall length suits standard cam connector panel and distribution box configurations
• Green color coding for quick visual identification in multi-conductor cam setups
• Listed to UL 1691 and CSA standards for code-compliant installations

Compatibility

Designed as an OEM-style replacement or field-use single-pole male cam plug for 300 amp, 600 volt single-pole cam connector systems using 2 AWG to 2/0 AWG conductors.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize the circuit completely and verify with a meter before making or breaking any cam connector termination. Insert the conductor fully into the set screw barrel and tighten both set screws to secure the wire before assembling the connector body. Do not exceed the 2/0 AWG maximum wire size rating or the 300 amp continuous current rating of this connector.
