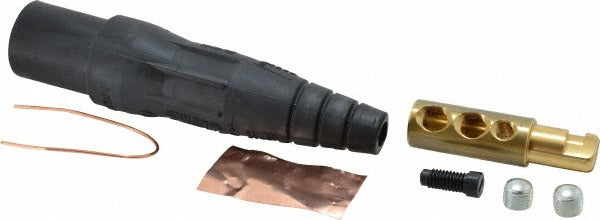

Leviton 16D22-UE Cam Single Pole Male Plug 300A 600V

Product Description

The LEVITON 16D22-UE is a single-pole male cam-style plug connector rated for 300 amps at 600 volts, designed for high-current temporary power distribution applications. The double set screw termination accepts wire sizes from 2 AWG through 2/0 AWG, providing a secure mechanical connection without soldering. At 7.01 inches in overall length and finished in black, this connector carries a NEMA 3R rating, making it suitable for outdoor and wet-location use. Licensed electricians and industrial maintenance technicians install this type of connector on portable feeder cables, generator sets, and temporary power distribution equipment.

This connector is used in residential, commercial, and industrial settings where high-current single-pole connections are required. Typical applications include generator interconnects, portable power distribution panels, stage and event power systems, and construction site temporary power. The NEMA 3R enclosure rating allows installation in locations exposed to falling rain and sleet. The male plug mates with compatible single-pole cam-style female connectors and inline bodies in the same current and voltage class.

Key Features

• 300 amp, 600 volt rating for heavy-duty feeder and temporary power applications
• Double set screw termination accepts 2 AWG to 2/0 AWG conductors
• NEMA 3R rated for outdoor and wet-location installations
• Cam-style single-pole male plug design for quick-connect feeder hookups
• 7.01 inch overall length with black housing for polarity and phase identification use
• Meets CSA and UL 1691 standards for cam-type connectors

Compatibility

Designed as an OEM-style replacement and standard-fit cam connector for single-pole 300 amp feeder systems using compatible cam-style female connectors and inline bodies rated at 600 volts.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC). De-energize and lock out the feeder circuit before terminating conductors under the set screws. Ensure conductor insulation is stripped to the correct length and that each set screw is tightened to secure the conductor without nicking the wire strands. Inspect the connector housing and contacts for damage before re-energizing the circuit.
