Product Description

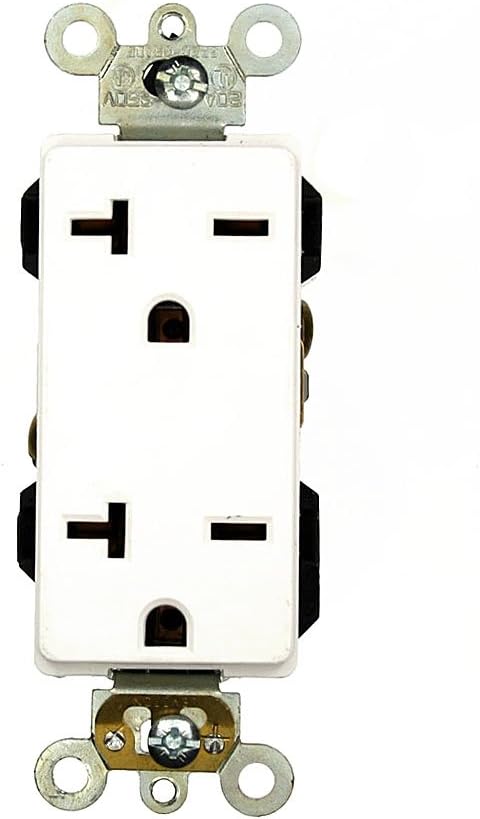

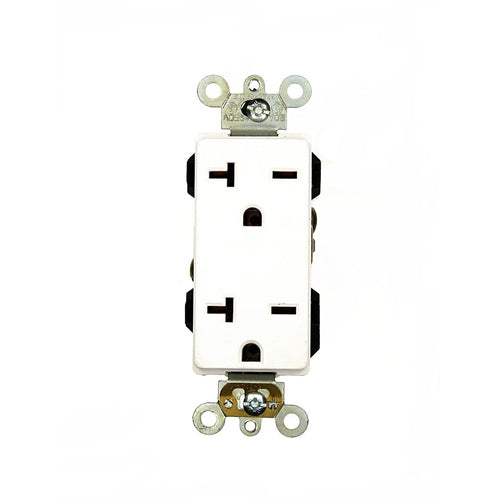

The Leviton 16462-W Decora Plus Duplex Receptacle is a commercial-grade, straight blade receptacle. Rated at 20 Amp and 250 Volt, it's self-grounding and suitable for demanding environments. This receptacle is the electrical contractor's choice for use in hotels, schools, hospitals and commercial office buildings.
- 20 Amp
- 250 Volt
- Decora Plus Duplex Receptacle
Product Highlights
Commercial grade receptacle designed to withstand demanding environments. Ideal for hotels, schools, hospitals and commercial office buildings.
Product Information
Standard Information
-
Brand: LEVITON
-
Manufacturer Part Number: 16462-W
-
Country of Origin: Please Contact Customer Service
Technical Specifications
-
Color: White
-
Voltage: 250 Volts
-
Material: Nylon
-
Power Source: Wired Electric
-
Certification: CSA, UL
-
Included Components: 16462-W
-
Total Power Outlets: 2
-
Nema: 6-20R
-
At Rated Voltage: 1-1/2 HP
-
Amperage: 20 A
-
Current Limiting: Full Rated Current
-
Dielectric Voltage: Withstands 2000V per UL498
-
Grounding: Self-Grounding
-
Pole: 2
-
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
-
Wire: 3
-
Flammability: Rated V-2 per UL 94
-
Body Material: Thermoplastic Nylon
-
Clamp Nuts: Zinc-Plated Steel
-
Face Material: Thermoplastic Nylon
-
Ground Clips: Brass-Plated
-
Grounding Screw: Brass 8-32
-
Line Contacts: Brass Triple-Wipe .031 Thick
-
Strap Material: Zinc-Plated Steel
-
Terminal Screws: Brass 10-32
-
Product ID: Ratings are permanently marked on device
-
Screw Terminal Torque: 14-18 in-lbs
-
Terminal Accom.: 14-10 AWG
-
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
-
Termination: Back or Side Wire
-
Brand: Decora Plus
-
Device Type: Duplex Receptacle Outlet
-
Feature 4: Smooth Face
-
Grade: Heavy-Duty Industrial Specification Grade
-
NEMA: WD-6
-
ANSI: C-73
-
CSA C22.2 No. 42: File LR-406
-
NOM: 057
-
UL498: File E13399
-
Power Plug Type: Type B - 3 pin (North American)
-
Smart Home Compatibility: Not Smart Home Compatible
-
Connectivity Technology: NEMA 6-20R
-
Specification Met: NEMA
