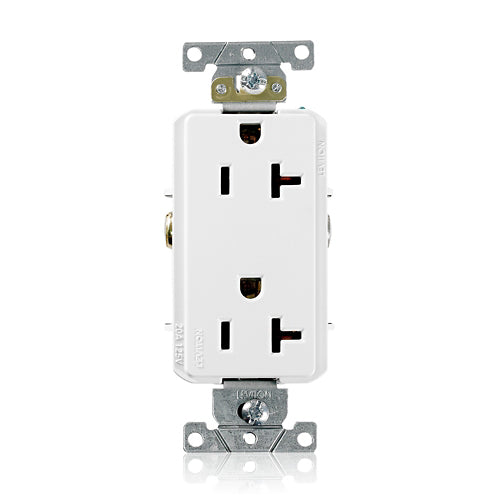

Leviton 16352-w 20A Duplex Outlet Industrial Nema 5-20R White

Product Description

The LEVITON 16352-w is a heavy-duty industrial specification grade duplex receptacle rated at 20 amps and 125 volts. It features a smooth Decora Plus face and a NEMA 5-20R configuration, making it a 2-pole, 3-wire grounding device suited for demanding commercial and industrial wiring applications. The self-grounding design simplifies installation by establishing the ground connection through the mounting yoke, reducing the need for a separate grounding pigtail. Licensed electricians install this receptacle in branch circuits where reliable, high-current outlet capacity is required.

This receptacle is intended for commercial and industrial environments where 20-amp, 125-volt circuits are standard. Typical applications include office buildings, manufacturing facilities, server rooms, and other settings that require heavy-duty outlet capacity. The NEMA 5-20R slot configuration accepts both 15-amp and 20-amp plugs, supporting a wide range of equipment. Back or side wiring options allow flexibility in device box installations across various rough-in conditions.

Key Features

• 20-amp, 125-volt rating for high-current branch circuit use
• NEMA 5-20R configuration accepts 15-amp and 20-amp plugs
• Self-grounding yoke eliminates the need for a separate grounding pigtail
• Back or side wire termination options for installation flexibility
• Smooth Decora Plus face in white finish
• Heavy-duty industrial specification grade construction

Compatibility

Designed as an industrial specification grade NEMA 5-20R duplex receptacle for standard 20-amp, 125-volt branch circuits in commercial and industrial wiring systems.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize the circuit at the breaker panel and confirm the absence of voltage with a meter before making any connections. The self-grounding feature requires proper metal-to-metal contact between the mounting yoke and a grounded metal device box. Do not use this receptacle on circuits exceeding its rated voltage or amperage.

Technical Specifications

• Amperage: 20 amps
• Voltage: 125 volts
• NEMA Configuration: 5-20R
• Poles: 2-pole
• Wires: 3-wire
• Wiring Method: Back or side wire
• Grounding: Self-grounding
• Color: White
• Grade: Industrial Specification Grade

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: 16352-w
