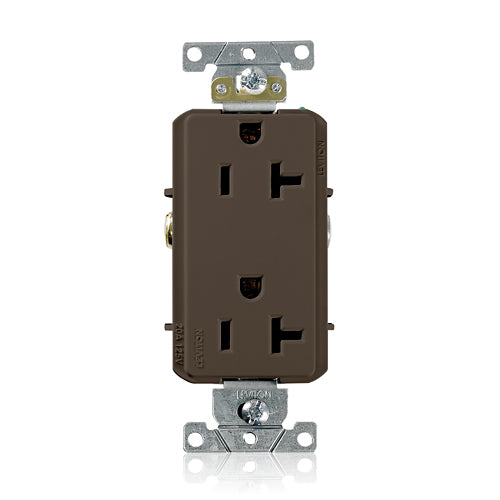

Leviton 16342 Decora Plus Duplex Receptacle/Outlet, Industrial Grade, Self-Grounding

Product Description

The LEVITON 16342 Decora Plus Duplex Receptacle Outlet is designed to withstand demanding environments. This heavy-duty, industrial specification grade receptacle features a smooth face, 20 Amp, 125 Volt capacity, and side wire connection. Ideal for hotels, schools, hospitals and commercial office buildings.

• Smooth Face
• Self-Grounding
• Commercial Specification Grade

Product Highlights

Heavy-duty industrial grade receptacle designed for demanding environments and commercial applications.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: 16342
• Country of Origin: Mexico

Technical Specifications

• UPC: 078477788240
• Nema: 5-20R
• RoHS Compliant: Yes
• At Rated Voltage: 1 HP
• Amperage: 20 A
• Current Limiting: Full Rated Current
• Dielectric Voltage: Withstands 3000V per UL498
• Grounding: Self-Grounding
• Pole: 2
• Temperature Rise: Max 30C temperature rise at full rated current
• Voltage: 125 VAC
• Wire: 3
• Flammability: Rated V-2 per UL 94
• Operating Temperature: -40 to 60C
• Body Material: PBT Polyester Blend
• Clamp Nuts: Steel
• Face Material: PBT Polyester Blend
• Ground Clips: Brass
• Grounding Screw: #8 Hex Head, Triple-Drive Brass
• Line Contacts: .030" Brass
• Strap Material: Steel (Galvanized G60)
• Terminal Screws: #8 Triple Drive Brass
• Product ID: Ratings are permanently marked on device
• Screw Terminal Torque: 14-18 in-lbs
• Terminal Accom.: 14-10 AWG
• Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
• Termination: Side Wire
• Brand: Decora Plus
• Device Type: Duplex Receptacle Outlet
• Feature 4: Smooth Face
• Grade: Commercial Specification Grade
• ANSI: C-73
• CSA C22.2 No. 42: File LR-406
• Fed Spec Rated: Yes
• NOM: 057
• UL498: File E13399
• AC Horsepower Ratings At Rated Voltage: 1 HP
