Leviton 1453-2 3-Way Grounding AC Quiet Toggle Switch, 120 VAC, 15 A, 1/2, 2 hp Power Rating

Product Description

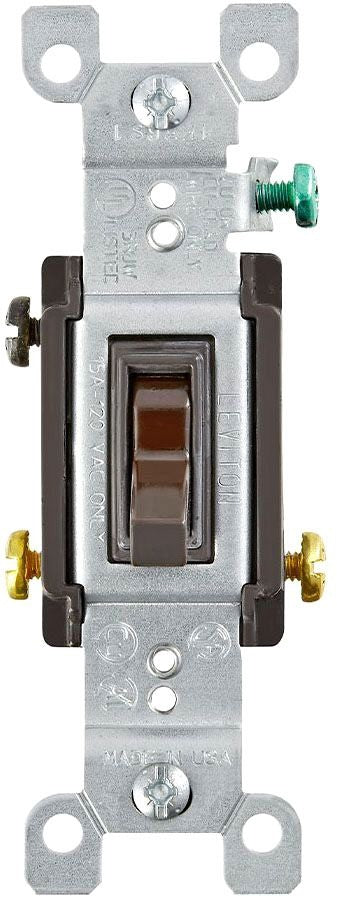

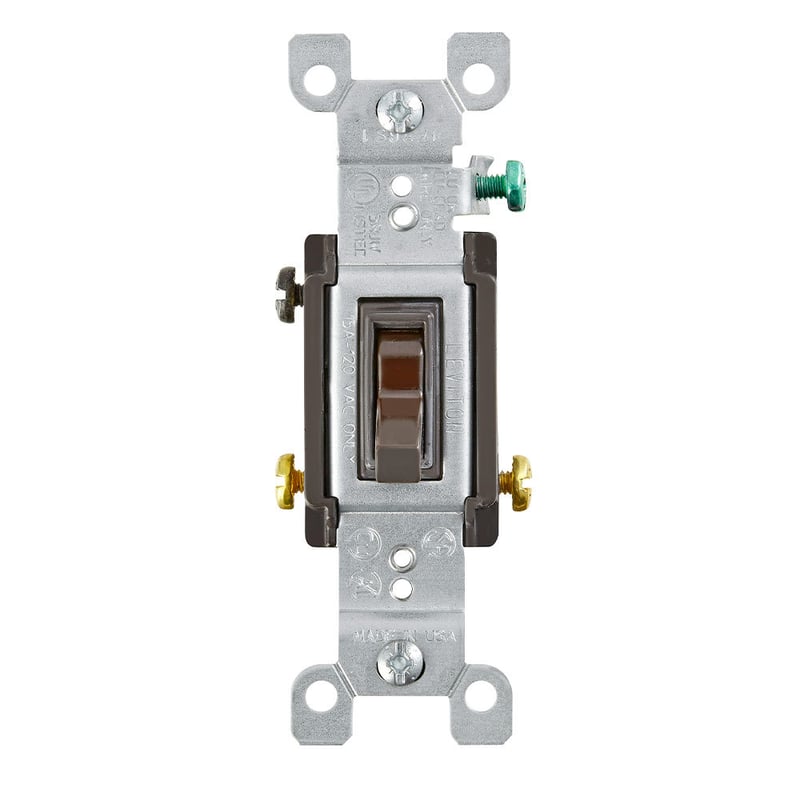

The Leviton 1453-2 is a brown toggle switch. This AC quiet switch is a 3-way grounding switch with a power rating of 1/2, 2 hp. It features a cam actuator and is designed for surface mounting with side and push-in wired terminals. The toggle and frame are constructed of impact-resistant thermoplastic.

• 15 Amp, 120 Volt
• 3-Way AC Quiet Switch
• Residential Grade, Grounding

Product Highlights

The Leviton 1453-2 is ideal for residential and commercial applications. It offers easy installation with quickwire push-in and side wiring options.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: 1453-2
• Country of Origin: Please Contact Customer Service

Technical Specifications

• Color: brown
• Voltage: 120 VAC
• Material: Thermoplastic
• Switch Type: 3-Way
• Brand: LEVITON
• MPN: 1453-2
• Application: Commercial
• Amperage Rating: 15 A
• Connection: Push-In and Side Wired
• Insulation: Thermoplastic
• Mounting: Wallplate
• Standard: NOM Certified (057);CSA Certified (File LR-3413);UL Listed (File E-7458)
• Operating Temperature: -40 to +65 DEG C
• Environmental Conditions: Flammability (Rated V-2 per UL94)
• Width: 1.31 in
• Height: 4.2 IN
• Actuator: Cam
• Product Name: AC Quiet Switch
• Contact Rating: 1/2 (120V);2 (240V)
• Stripped Catalog Number: 14532
• Concatenated Invoice Description: 15A 120V 3-WAY TGL BROWN
• Manufacturer Item Status: Active
• Manufacturer Name: Leviton
• UPC: 078477174500
• GTIN: 00078477174500
• Alternative Part Number: 7358719
• Amperage Rating UOM: A
• Power Rating: 1/2, 2 hp
• Terminal Type: Side and Push-In Wired
• Type: 3-Way Grounding
• Voltage Rating UOM: VAC
• Manufacturer: LEVITON
• Special Features: Grounding; Terminal Screws Accept up to No. 12 AWG Copper or Copper-Clad Wire; L
• WES Product code: 2734031100
