Product Description

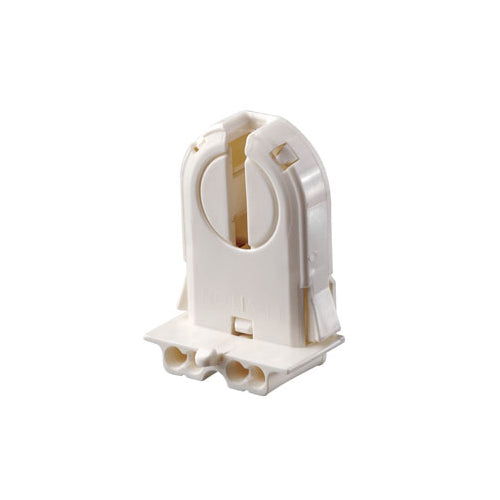

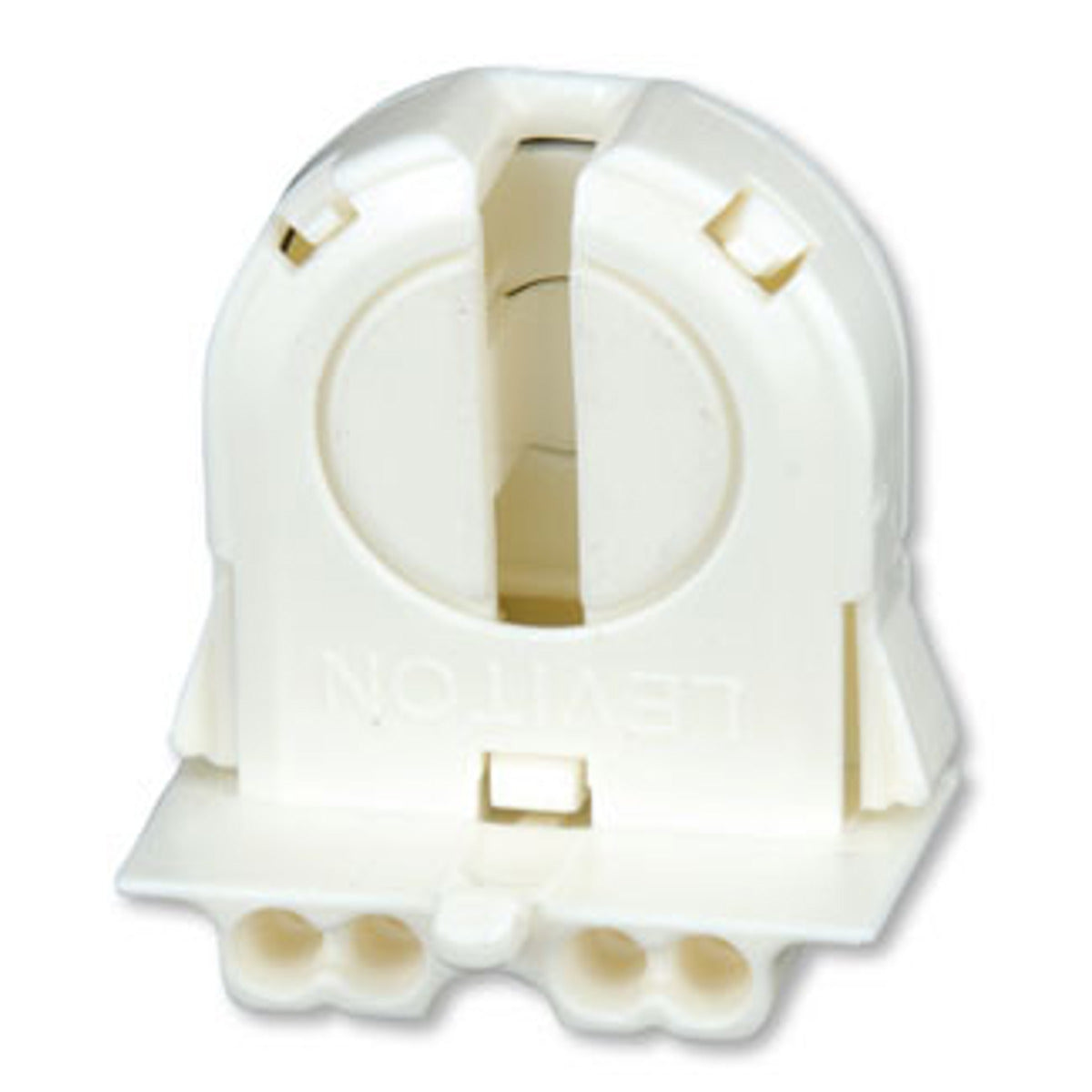

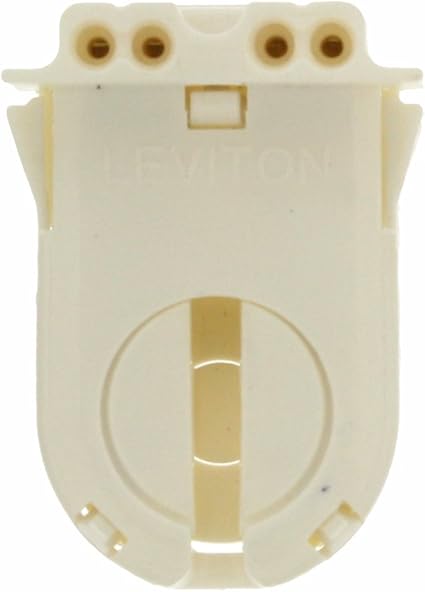

The LEVITON 13653-NP is a fluorescent lampholder designed for T-8 and T-12 medium bi-pin lamps. It features a thermoplastic body and is suitable for commercial applications. This lampholder supports a lamp wattage of 660W and a voltage rating of 600V. It can be mounted via snap-in or slide-on for 22-25 Ga panels.
- Chemical Resistant
- Suitable for T-8 and T-12 medium bi-pin lamps
- Commercial application
Product Highlights
Designed for T-8 and T-12 medium bi-pin lamps with a 660W wattage and 600V. Features chemical resistance and is ideal for commercial use.
Product Information
Standard Information
-
Brand: LEVITON
-
Manufacturer Part Number: 13653-NP
-
Country of Origin: Mexico
Technical Specifications
-
Catalog Number: 13653-NP
-
Manufacturer: Leviton
-
Brand: Leviton
-
Country of Origin: Mexico
-
Made in USA: No
-
Application: Commercial
-
Lamp Type: T8 - T12
-
Special Features: Chemical Resistant, 18 AWG wire size
3/8 in wire strip length
T8 to T12 fluorescent lamp
-
Standard: UL Listed (E5833);CSA Certified (LR-5863);NOM Certified (057);VDE Certified to IEC
-
UPC: 078477155394
-
GTIN: 00078477155394
-
Item Type: Fluorescent Lampholder
-
Voltage Rating: 600
-
Wattage: 660 W
-
Mounting Type: Panel Mount, Snap-In or Slide-ON
-
Base Type: Medium
-
Material Type: plastic, viton, thermoplastic
-
Specification Met: UL
-
Contact Type: Lamp-Lock
-
Panel Thickness: 22-25 Ga. Panel
-
Rated Wattage: 660W
-
Termination: Quick-Connect 18AWG Solid
-
Voltage: 600 Volt
-
Wire Strip Length: 3/8 Inch
-
Availability: Distribution
-
Body Material: Thermoplastic
-
Contact Material: Copper-Alloy
-
Lamp Base: Medium
-
Lamp Contacts: Bi-Pin
-
Lamp_Size: Medium Bi Pin
-
Lampholder Type: Linear
-
Light Type: Fluorescent
-
Notes: With Panel Locator Post
-
Screw: Panel Locator Post
-
Standards and Certifications: UL/CSA/NOM
-
Style Name: Low Profile
-
CSA Certified: File LR-1863
-
NOM Certified: 057
-
UL Listed: File E5833
-
Frequency_Rating: 60Hz
-
Material: Thermoplastic
-
Mounting: Snap In or Slide On
-
Sub_Brand: Leviton
-
Type: Fluorescent
