Product Description

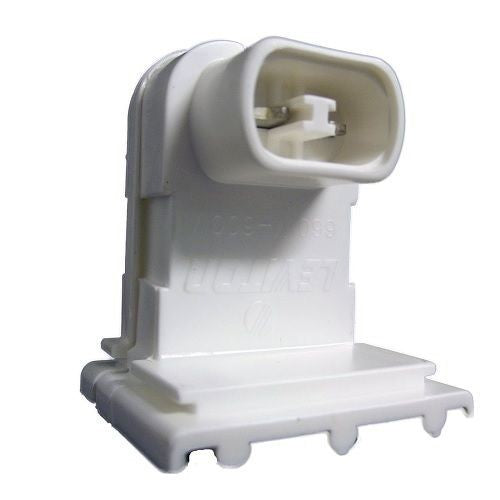

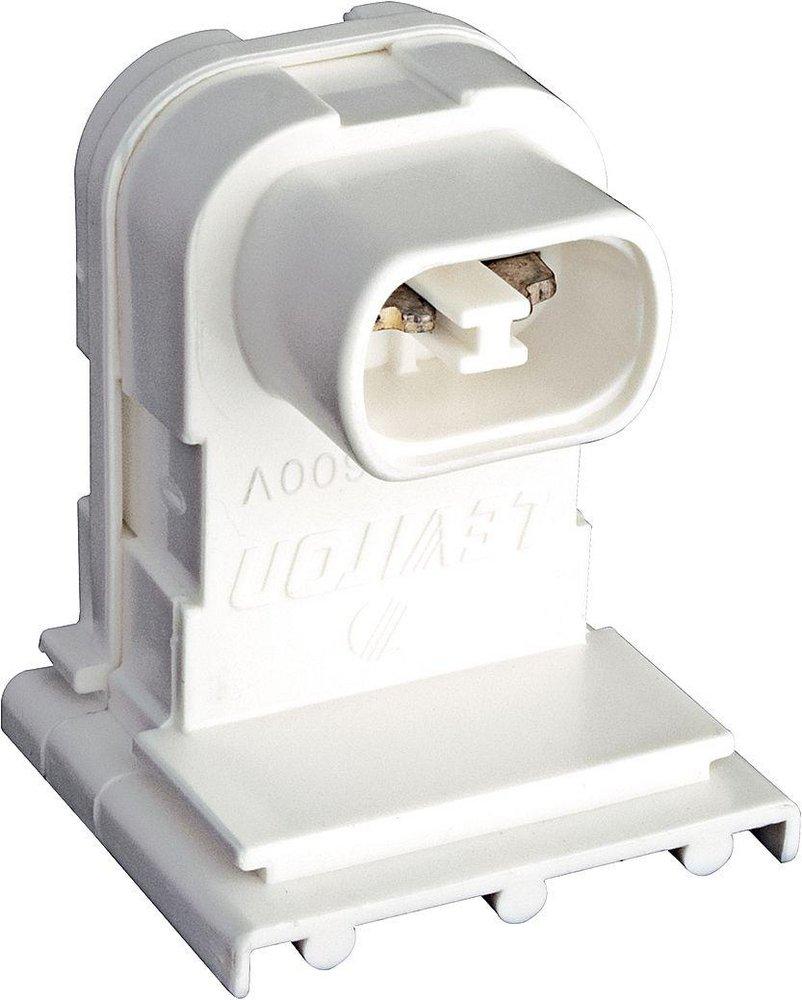

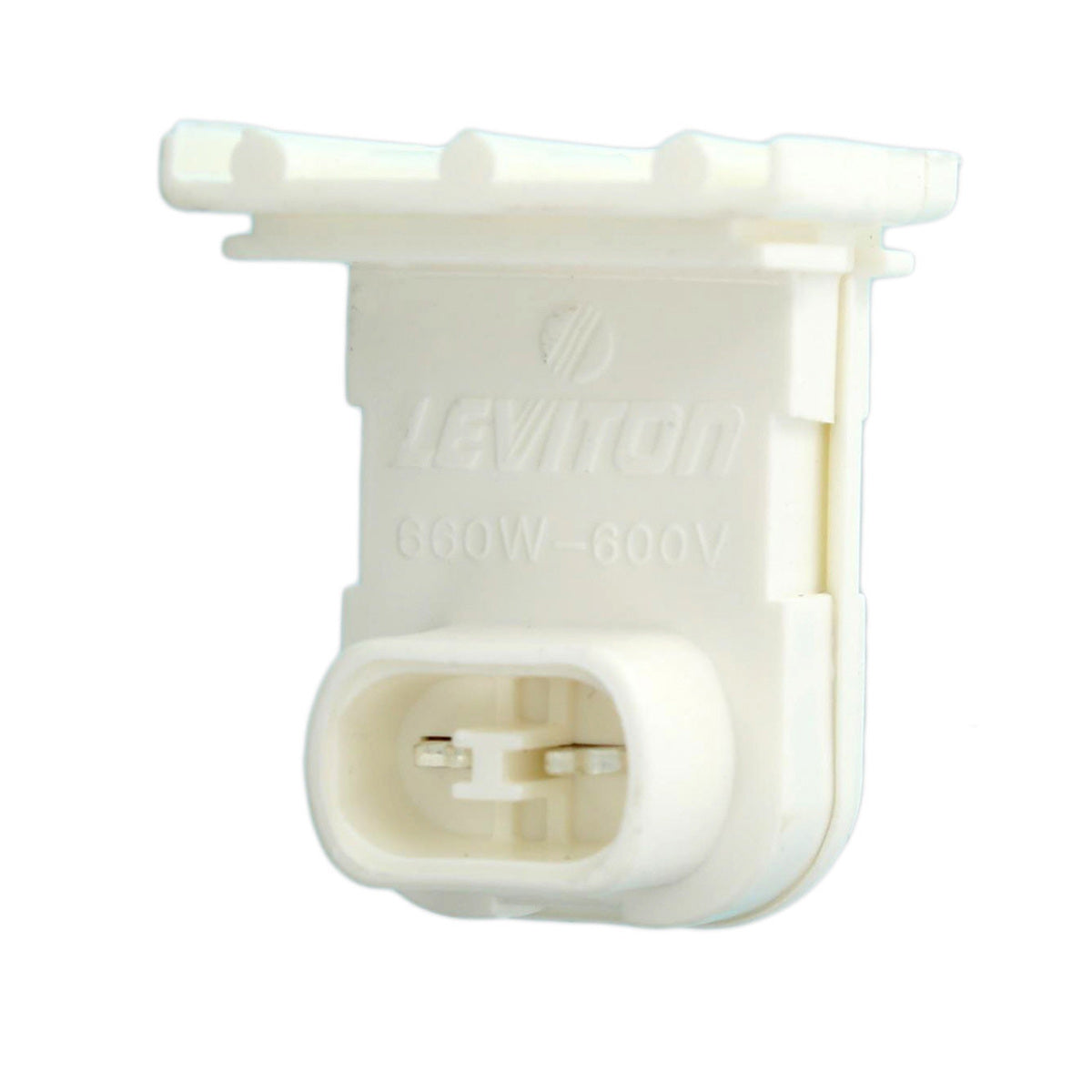

The LEVITON 13551-NW is a horizontal fluorescent lampholder with a 600V and 600W capacity. It features a pedestal slide-on mount. Designed for T-8 and T-12 lamps, this lampholder is suitable for indoor lighting in commercial and industrial facilities, as well as outdoor applications when properly enclosed.
- 600 Volt
- 660 Watt
- Pedestal Slide-On Mount
Product Highlights
The Leviton 13551-NW lampholder is ideal for T8 and T12 fluorescent lamps, offering a secure and reliable connection in various lighting applications.
Product Information
Standard Information
-
Brand: LEVITON
-
Manufacturer Part Number: 13551-NW
-
Country of Origin: Mexico
Technical Specifications
-
Catalog Number: 13551-NW
-
Manufacturer: Leviton
-
Brand: Leviton
-
Country of Origin: Mexico
-
Application: 20 Gauge Thickness Panels
-
Color: White
-
Frequency Rating: 60 Hz
-
Lamp Type: T8/T12 High Output Linear Fluorescent
-
Light Technology: Fluorescent
-
Material: Thermoplastic
-
Mounting: Slide-On
-
Special Features: With Fixed End, Non-Shunted, Used with 20 Gauge Panel Thickness, Made in Mexico
-
UPC: 078477344439
-
GTIN: 00078477344439
-
Item Type: Medium Fluorescent Lamp Holder
-
Voltage Rating: 600 VAC
-
Wattage: 600 W
-
Lamp Wattage: 600 W
-
Type: Non-Shunted Lampholder With Fixed End
-
Connection Type: Push-In
-
Terminal Type: Quick Wire
-
Amperage Rating: 10 A
-
Lamp Base Type: Medium/Shallow
-
RoHS Compliant: True
-
Mounting Type: Slide-ON
-
Panel Thickness: 20 Ga. Panel
-
Base: R17D
-
Voltage: 600 Volt
-
Approval: UL, CSA, NOM
-
Body Material: Thermoplastic
-
Lamp Base: R17D, Recessed Double Contact, Shallow
-
Rated Voltage: 600V
-
Lampholder Watts: 660W
-
Lampholder Base: Medium (E26) Base
-
Lampholder Type: Linear Fluorescent
-
ECCN: EAR99
-
UNSPSC: 39111501
-
Color Family: White
-
Manufacturer Item Status: Active
-
Manufacturer Name: Leviton
-
Country Of Origin: MX
-
Frequency Rating UOM: Hz
-
Lamp Wattage UOM: W
