Product Description

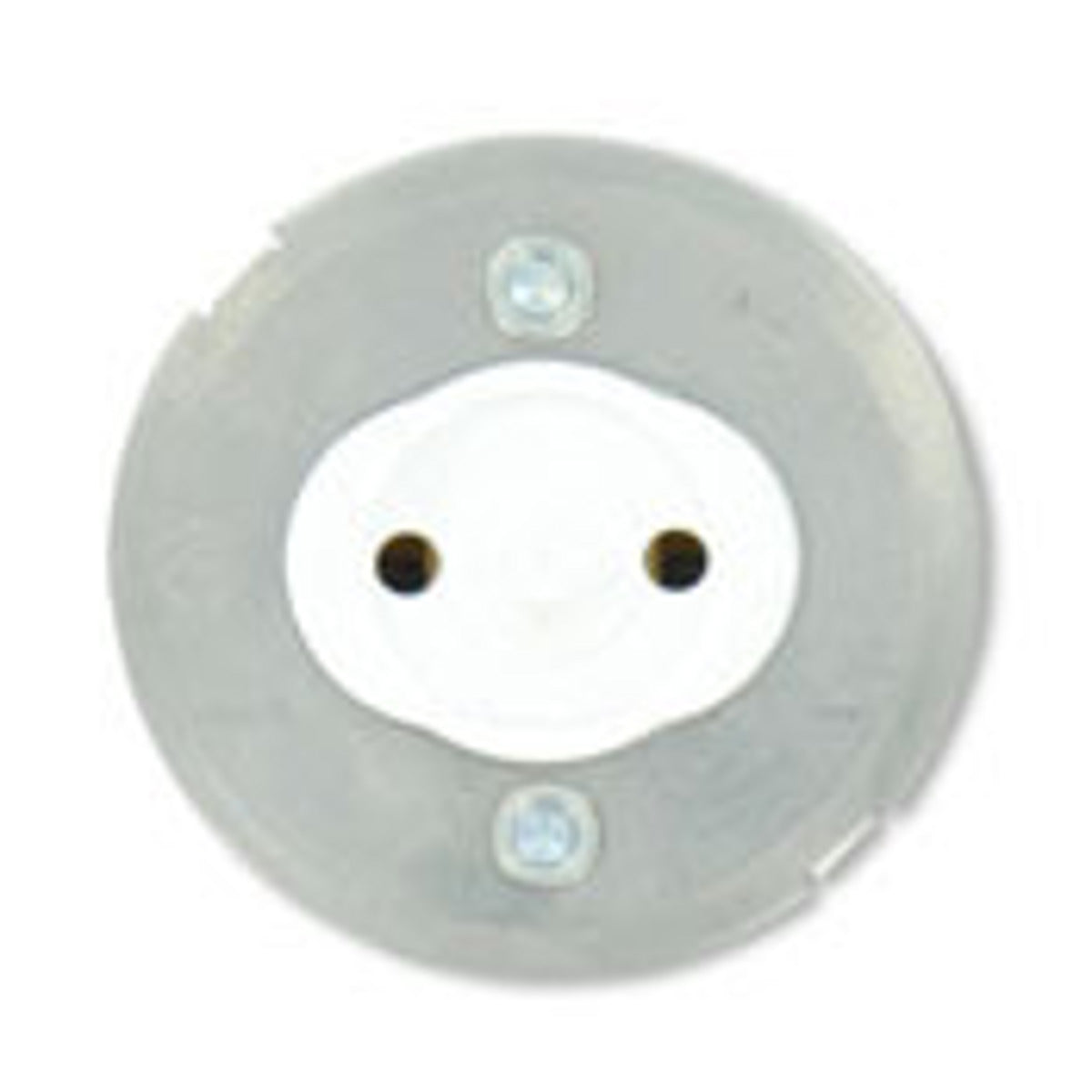

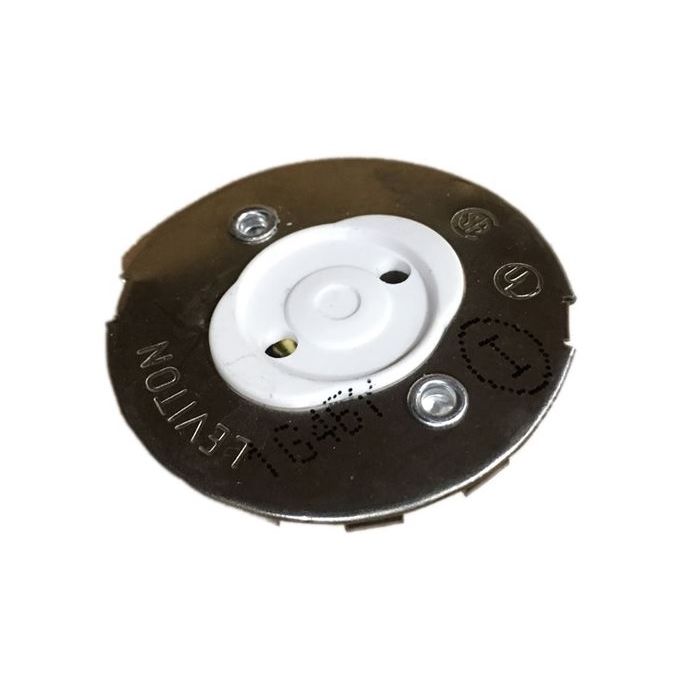

The Leviton 13519 is a standard fluorescent lampholder with a medium base and bi-pin design. This lampholder is designed for commercial use and features snap-in mounting and quickwire 18AWG solid or stranded tinned termination. It supports up to 660W and 600V.
- Snap-In mounting
- Stationary contact
- Quickwire 18AWG Solid or Str Tinned
Product Highlights
The Leviton 13519 lampholder is ideal for commercial applications requiring a reliable and easy-to-install fluorescent lighting solution.
Product Information
Standard Information
-
Brand: LEVITON
-
Manufacturer Part Number: 13519
-
Country of Origin: Mexico
Technical Specifications
-
CSA: LR-5863
-
Base: Medium
-
Type: Standard
-
Brand: Leviton
-
Color: White
-
Length: 1.64 Inch
-
Voltage: 600 Volt
-
Wattage: 660 Watt
-
Diameter: 1.64 Inch
-
Material: Thermoset
-
Standard: CSA,UL
-
Lamp Type: Fluorescent
-
Sub Brand: FLUORESCENT LAMPHOLDERS
-
Bulb Shape: T8/T12
-
Light Type: Fluorescent
-
Product UPC: 07847716857
-
12-Digit UPC: 078477168578
-
Applications: For Commercial use
-
Base Material: Thermoplastic
-
Body Material: Thermoset
-
Mounting Type: Snap-In
-
Contact Material: Copper-Alloy
-
Termination Type: Quickwire 18AWG Solid
-
Application: Commercial
-
UPC: 078477168578
-
GTIN: 00078477168578
-
Item Type: Standard Fluorescent Lampholder
-
Length UOM: Inch
-
Voltage Rating: 600 VAC
-
Rated Wattage: 660W
-
Lamp Base: Medium Bi-Pin
-
Connection Type: Wire Lead
-
Dimensions: 1.64 in Dia
-
Lamp Wattage: 660 W
-
Manufacturer Part Number: 13519
-
Standards/Approvals: UL File No. E5833|CSA File No. LR5863
-
Contact Type: Stationary
-
Panel Thickness: .035 - .050
-
Termination: Quickwire 18AWG Solid
-
Lamp Contacts: Bi-Pin
-
Lampholder Type: Linear
-
Standards and Certifications: UL/CSA
-
Finish: Tin Plated
-
Terminal Type: Quickwire
-
Standard & Approvals: ARRA, Buy American Act and RoHS Compliant, CSA File No. LR5863, UL File No. E5833
