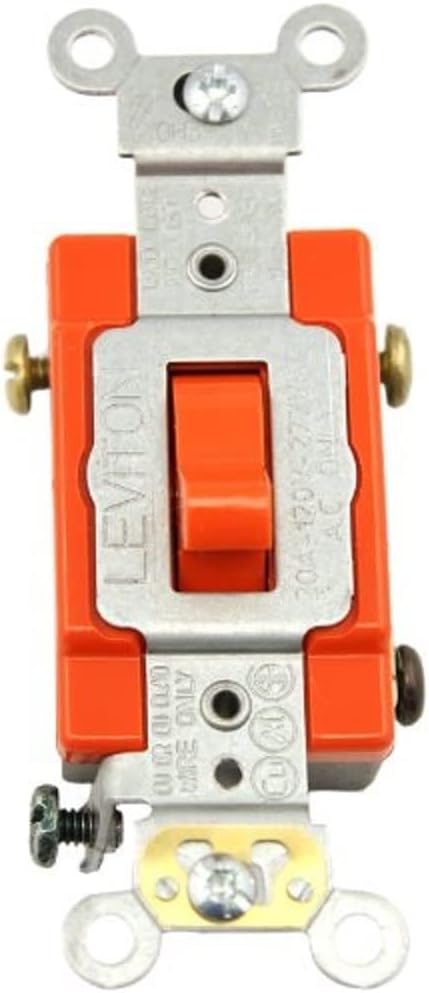

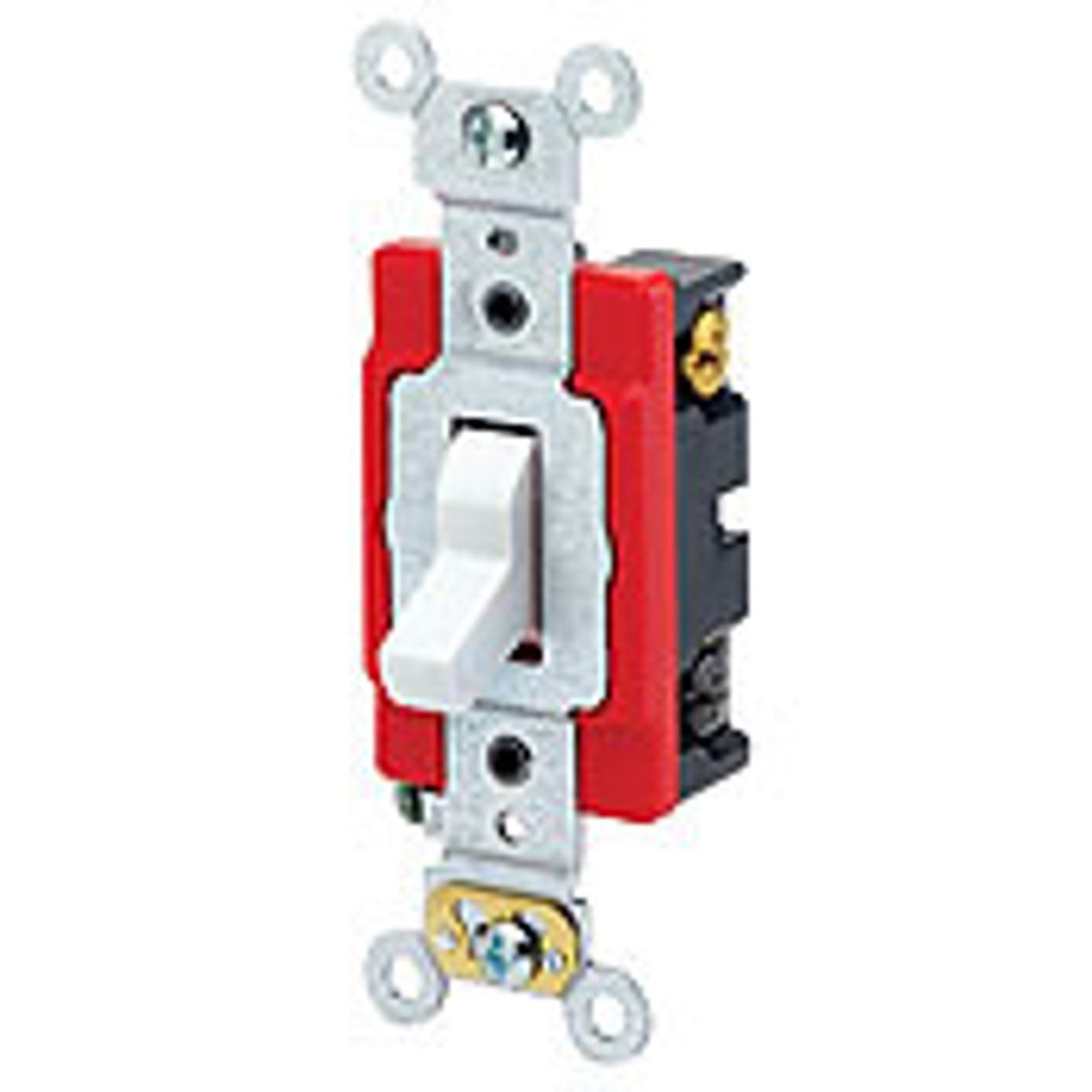

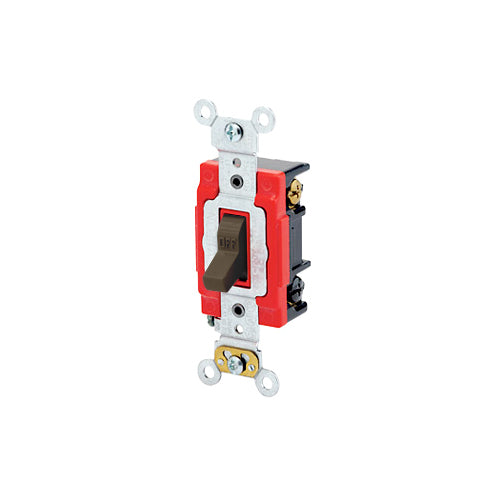

Leviton 1223-2R 20-Amp, 120/277-Volt, Toggle 3-Way AC Quiet Switch

Brand: LEVITON
SKU: 1223-2R
Availability: In Stock

Ships same day if ordered by 12 pm
$27.29
$27.29
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Leviton 1223-2R is a 20-Amp, 120/277-Volt, toggle 3-way AC quiet switch. This extra heavy-duty spec grade switch is self-grounding and features back and side wiring. It is suitable for industrial and specification grade applications. The switch is built with quality and reliability in mind.

  • 20-Amp
  • 120/277-Volt
  • Self Grounding, Back and Side Wired

Product Highlights

This Leviton toggle switch is ideal for commercial applications requiring a durable and reliable switching solution.

Product Information

Standard Information

  • Brand: LEVITON
  • Manufacturer Part Number: 1223-2R
  • Country of Origin: Mexico
Technical Specifications
Voltage
277v 120v
Material
Thermoplastic (Body), Polycarbonate (Toggle)
Switch Type
3-way
Switch Style
Toggle
Current Rating
20 Amps
Operation Mode
ON-OFF
Specification Met
Ul
AC Adapter Current
20 Amps
Batteries Included?
No
Batteries Required?
No
Included Components
1223-2R
Insulation Resistance
20 Megaohms
NEMA
WD-1 & WD-6
Type
3-Way Extra Heavy Duty
Brand
Leviton
Grade
Industrial
Voltage Rating
120/277
Actuator
Toggle
Amperage
16 Amp
Standard
ANSI C-73
Enclosure
NEMA WD-1/WD-6
Grounding
Self-Grounding
Sub Brand
INDUSTRIAL SWITCHES
Dielectric
1500 V
Horsepower
1 hp
Device Type
Toggle Switch
Max Current
16 A
Product UPC
07847722346
12-Digit UPC
078477223468
Applications
Commercial
Base Material
Thermoplastic
Body Material
Thermoplastic
Mounting Type
Box
TC Connection
Back Wired;Side Wired
Cover Material
Thermoplastic
Connection
Back Wired;Side Wired
Number of Poles
1 Pole
Toggle Material
Polycarbonate
Contact Material
Silver Alloy
Temperature Rise
30 degrees C
Termination Type
Back Wire,Side Wire
Country of Origin
Mexico
Flamability Class
Rated V-2 Per UL 94
Operating Temperature
-40 degrees C
Environmental Conditions
Flammability (Rated V-2 Per UL94)
Amperage Rating
20 A
Wiring
Back and Side Wired
Application
Industrial, Specification Grade
Approval
UL 20, CSA C22.2, NOM 057
Operation Type
3-Way
Contact Rating
1 hp at 120 VAC, 2 hp at 240 VAC
Mounting
Surface
Operating Cycles
50000 Cycles
Power Rating
800 W, 1000 VA
Terminal Type
Back/Side Wire
Voltage Rating UOM
VAC
Manufacturer
LEVITON
Number Of Poles
3 Way
Horse Power
1 2
Terminations
Side Back
Ground
Self Grounding
Rated Voltage
120/277V AC
Color Family
Red
Standards/Approvals
RoHS Compliant|ANSI C73|Federal Specification WS896E File No. E7458|UL94 V-2 Flammability Rating|ANSI (C-73)|CSA C22.2 No. 111 (File 152105) Certified|NOM (057)|UL Fed Spec WS896E (File E7458)|UL 20 Listed
Manufacturer Part Number
1223-2R
UPC
078477223468
Manufacturer Name
Leviton
Country Of Origin
United States of America
GTIN
00078477223468
UNSPSC
39122211
Energy Star Flag
No
RoHS Flag
Contact manufacturer
Action
Maintained
Terminal Accommodations
14-10 AWG Back, 14-12 AWG Back Wire
Terminal Connection
Back and Side Wired
Temperature Rating
-40 to 65 deg C
Standards
UL/CSA/NOM
ANSI
C-73
Item
Wall Switch
Amps AC
20
Locking
No
Rated HP
1
Endurance
50,000 cycles minimum
HP Rating
1HP-120V 2HP-240V-277V
Voltage AC
120 to 277
Terminal ID
Brass-Hot Black-Hot White-Neutral Green-Gnd
Termination
Back or Side Wire
UL Standard
UL 20
Flammability
Rated V-2 per UL 94
Ground Clips
Brass
Grounding Screw
Brass 8-32
Terminal Screws
Brass 8-32
CSA C22.2 No. 111
File #152105
UL Fed Spec WS896E
File #E7458
Screw Terminal Torque
14-18 in-lbs
Application Environment
Industrial
Description/Special Features
Quiet Switch
Country of Origin (subject to change)
United States
ECCN
EAR99
Catalog Number
1223-2R
Alternative Part Number
9082003|12132740
Operating Cycles UOM
Cycles
Product Name
AC Quiet Switch
Commodity Code
5110
Stripped Catalog Number
12232R
Catalog Description (MFR)
20-Amp, 120/277-Volt, Toggle 3-Way AC Quiet Switch, Extra Heavy Duty Spec Grade, Self Grounding, Back and Side Wired, Red
Invoice Description (MFR)
20A 120/277V 3W INDUSTRIAL TOGL RD
Concatenated Invoice Description
20A 120/277V 3W INDUSTRIAL TOGL RD
Supplier Item #
17087
Item Type
Toggle Switch
Cross Reference Products
HBL1223R
Minimum Order Qty
1
Order Interval
1
Catalog ID
LEV1223-2R
Standard & Approvals
ARRA, Buy American Act and RoHS Compliant, ANSI (C-73), CSA C22.2 No. 111 (File 152105) Certified, NOM (057), UL Fed Spec WS896E (File E7458), UL 20 Listed, UL94-V2 Flammability Rated
Color
Red
