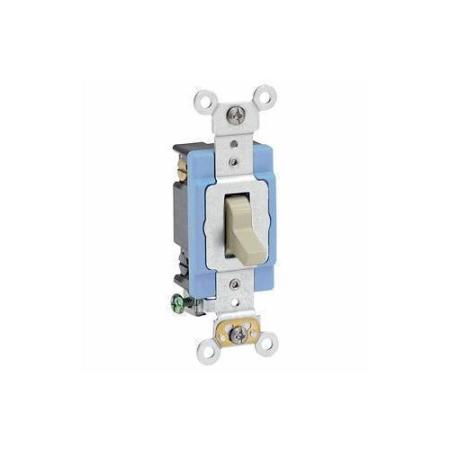

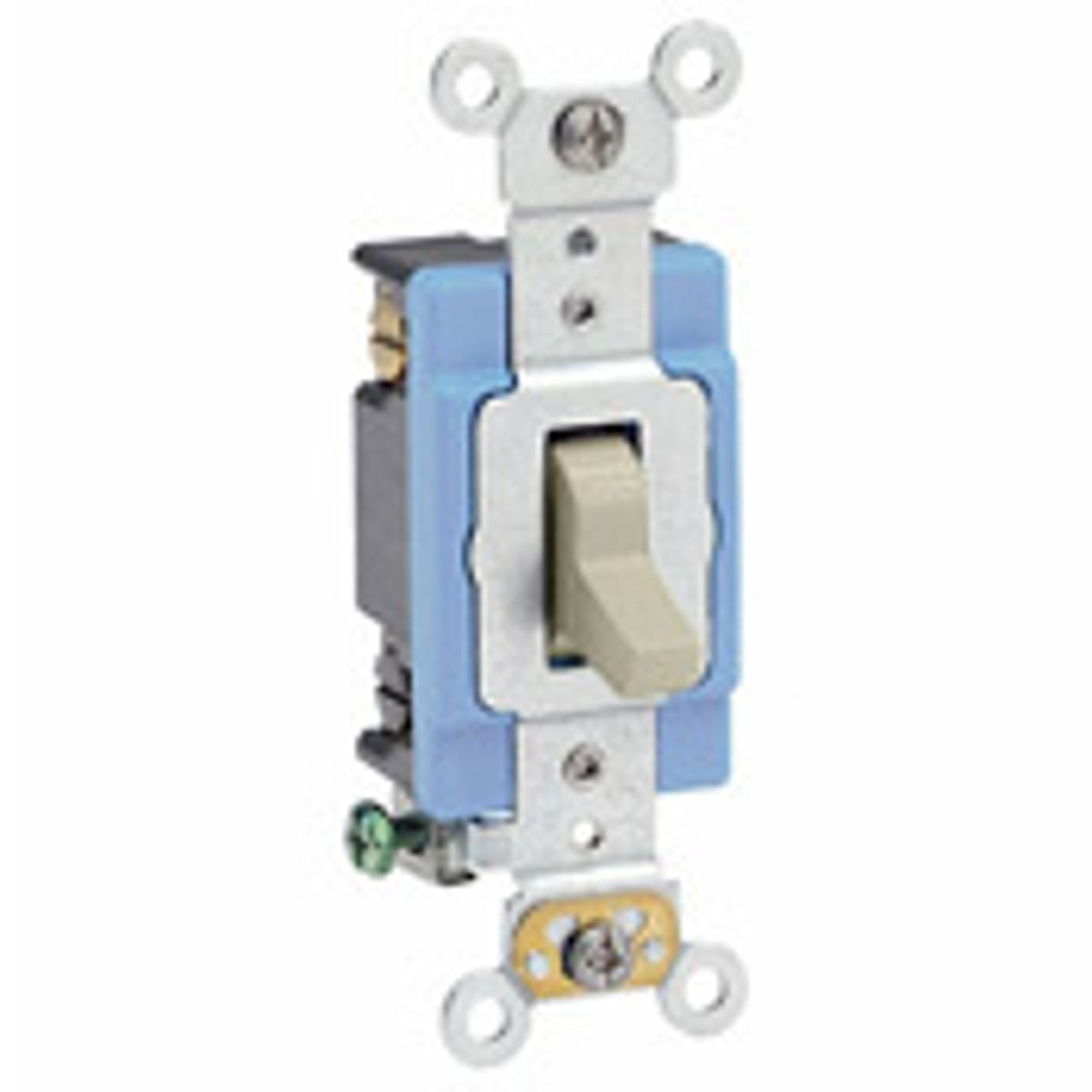

Leviton 1204-2I 4-way toggle switch 15 Amp 120/277 Volt (Single)

Brand: LEVITON
SKU: 1204-2I
Availability: In Stock

Ships same day if ordered by 12 pm
$61.16
$61.16
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Leviton 1204-2I is a 4-way industrial-grade toggle switch rated 15 A for 120/277 VAC service, designed for extra heavy-duty commercial and industrial applications. The device features a thermoplastic body with a polycarbonate toggle, self-grounding design, and back/side wired terminations for box mounting. Electrical attributes include silver alloy contacts, dielectric strength to 1500 V, and a rated horsepower of 1/2 hp at 120 VAC and 2 hp at 240 VAC.

  • 15 A, 120/277 VAC rating; 4-way toggle configuration with back and side wiring
  • Self-grounding design, thermoplastic body, polycarbonate toggle, silver alloy contacts
  • Dielectric 1500 V, rated 1/2 hp at 120 VAC and 2 hp at 240 VAC; endurance 50,000 cycles

Product Highlights

Industrial spec-grade 4-way toggle switch with self-grounding, box mounting, and heavy-duty electrical ratings for commercial and industrial control circuits.

Product Information

Standard Information

  • Brand: LEVITON
  • Manufacturer Part Number: 1204-2I
  • Country of Origin: Mexico
Technical Specifications
Brand
Leviton
Manufacturer Part Number (MPN)
1204-2I
Catalog Number
1204-2I
Type
4-Way Toggle Switch
Actuator
Toggle
Amperage Rating
15 A
Voltage Rating / Input Voltage
120/277 VAC
Horsepower Rating
1/2 hp at 120 VAC; 2 hp at 240 VAC
Grounding
Self-Grounding
Termination / Connection Type
Back wired; Side wired
Mounting Type
Box
Material
Thermoplastic body; polycarbonate toggle
Contact Material
Silver alloy
Dielectric Strength
1500 V
Operating Temperature
-40 to +65 deg C
Endurance / Operating Cycles
50,000 cycles minimum
Standards / Certifications
NEMA WD-1; NEMA WD-6; ANSI C-73; NOM 057; CSA C22.2 No. 111; UL 20; Federal Specification WS896E; RoHS compliant; UL94 V-2 flammability
Torque
12 lb-in
Temperature Rise
Maximum 30 degrees C rise
Overload Test
100 cycles at 4.8 times rated current (UL20)
Terminal Accommodation
Back wired: #14 - #10 AWG; Side wired: #14 - #12 AWG
Dielectric / Test Duration
Withstands 1500 V for 1 minute
Product UPC / GTIN
078477162408
Country of Origin
Mexico
Flammability Class
Rated V-2 per UL94
