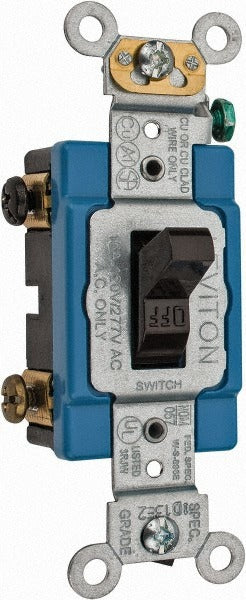

Leviton 1202-2 2 Pole Toggle Wall Switch 15A 120-277VAC

Product Description

The LEVITON 1202-2 is a 2-pole, industrial grade toggle wall switch rated for 15 amps and 120 to 277 VAC single-phase operation. Built to handle demanding electrical environments, this non-dimmer toggle switch covers a wide voltage range that suits both standard 120-volt residential branch circuits and higher-voltage 277-volt commercial lighting loads. The operating temperature range runs from -40 to 149 degrees F, making it suitable for use in unconditioned spaces, industrial facilities, and outdoor-rated enclosures where temperature swings are a factor. Licensed electricians and industrial maintenance technicians are the typical installers for this class of device.

The 1202-2 is suited for commercial and industrial wiring applications where a 2-pole switching configuration is required, such as 240-volt motor loads, industrial lighting circuits, or dual-leg branch circuit control. Its brown finish is commonly specified in industrial environments. The wide voltage compatibility makes it a practical stock item for electrical contractors working across multiple facility types, from warehouse lighting panels to light commercial tenant improvements.

Key Features

• 2-pole toggle operation for dual-leg circuit switching up to 277 VAC
• 15 amp rating suitable for standard commercial and industrial branch circuits
• Industrial grade construction with wide temperature tolerance: -40 to 149 degrees F
• Non-dimmer rated, compatible with all standard load types on toggle switches
• Compliant with UL 20, CSA C22.2 No. 111, NEMA WD-1, NEMA WD-6, ANSI C-73, and RoHS standards
• Brown color finish standard for industrial wiring installations

Compatibility

Designed as an industrial grade replacement or new-install toggle wall switch for 2-pole single-phase branch circuits operating between 120 and 277 VAC at 15 amps.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize and lock out the circuit at the panel before removing any existing device or making wiring connections. Verify that the branch circuit voltage and amperage do not exceed the switch ratings prior to installation. Use a properly rated electrical box and cover plate matched to the 2-pole device footprint.
