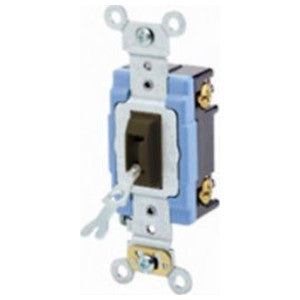

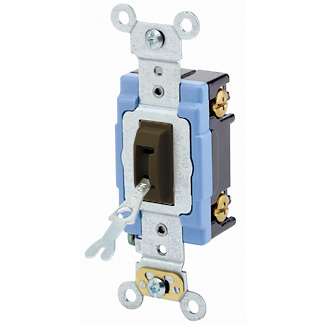

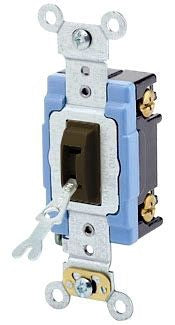

Leviton 1201-2L AC Quiet Toggle Switch 15 Amp 120/277 Volt

Product Description

The Leviton 1201-2L is a toggle locking single-pole AC quiet switch designed for both commercial and industrial use. This switch has a voltage rating of one hundred twenty to two hundred seventy-seven volts and an amperage rating of fifteen amps. It supports demanding applications with its durable construction and reliable performance.

• Self-grounding feature.
• Meets NEMA WD-1 and WD-6 standards.
• Over fifty thousand operating cycles for long-lasting use.

Product Highlights

Ideal for heavy-duty applications, the Leviton 1201-2L switch is built for reliability and durability. Its thermoplastic body and polycarbonate toggle ensure it can withstand rigorous use.

Product Information

Standard Information

• Brand: Leviton
• MPN: 1201-2L

Technical Specifications

• Voltage Rating: 120/277 VAC
• Amperage Rating: 15 A
• Power Rating: 1/2 HP at 120 V, 2 HP at 240 V
• Number of Poles: 1 Pole
• Dimensions: 46 H x 1.31 W x 13 D inches
• Environmental Conditions: -40 to 65 degrees C
• Torque Range: 12 to 14 inch pounds
• Material: Thermoplastic
• Contact Configuration: SP
• Operating Cycles: 50,000 cycles minimum
• Dielectric Voltage: 1500 V
• Grounding: Self-Grounding
