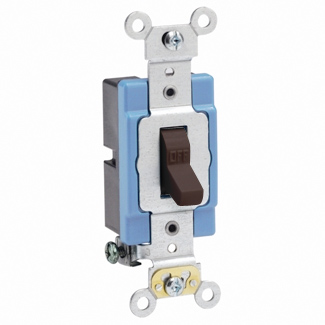

Leviton 1201-2 15 Amp Single Pole Extra Heavy-Duty Industrial Spec Grade Toggle Switch

Product Description

The Leviton 1201-2 is a toggle single-pole AC quiet switch. It is designed for industrial applications and can handle a voltage rating of one hundred twenty/ two hundred seventy-seven volts and a maximum amperage of fifteen amps.

• Self-grounding mechanism for added safety.
• Durable thermoplastic body with polycarbonate toggle.
• Suitable for heavy-duty installations.

Product Highlights

The Leviton 1201-2 switch is ideal for professional use in commercial and industrial settings thanks to its robust construction and reliable performance.

Product Information

Standard Information

• Brand: Leviton
• MPN: 1201-2

Technical Specifications

• Voltage Rating: 120/277 VAC
• Amperage Rating: 15 A
• Power Rating: 1/2 hp at 120 V, 2 hp at 240 V
• Environmental Conditions: -40 to +65 degrees Celsius
• Operating Cycles: 50,000 minimum
• Color: Brown
• Number of Poles: 1
• Mounting Type: Box
• Connection Type: Back Wired, Side Wired
• Material: Thermoplastic body, Polycarbonate toggle
