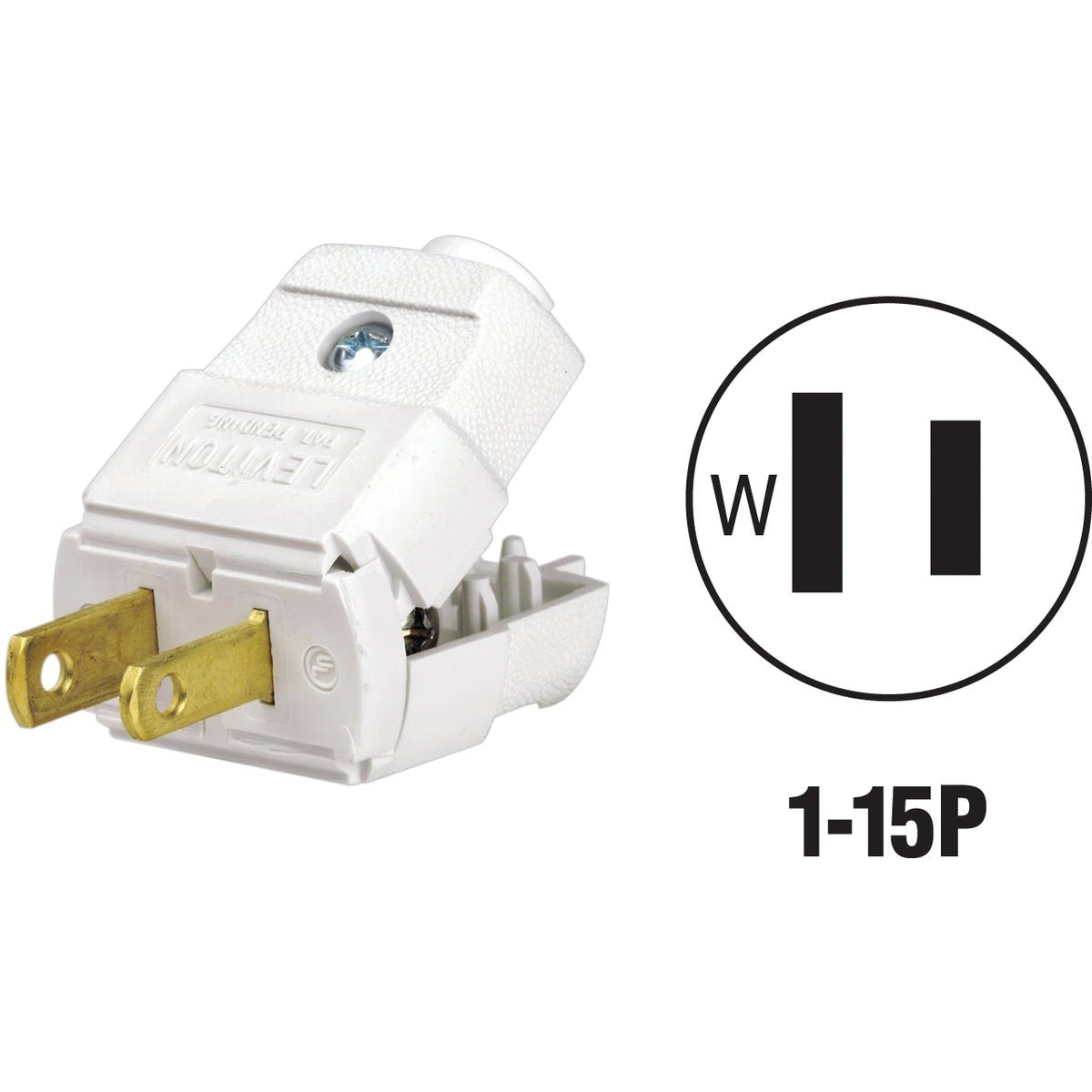

Leviton 036-00101-2WP Cord Plug 15A 125V Nema 1-15P

Product Description

The LEVITON 036-00101-2WP is a white thermoplastic cord plug designed for residential and light commercial applications where reliable, repeat-connect service is required. Rated at 15 amps and 125 volts with a NEMA 1-15P blade configuration, this plug accepts No. 18 and No. 16 AWG flat SPT cord as well as No. 20 AWG flat SPT cord. A built-in clamp-tight strain relief secures the cord at the plug body, reducing stress on the internal connections during frequent plugging and unplugging cycles. UL listed for safety compliance. Electricians and maintenance technicians install this plug on replacement cords for small appliances and household equipment.

This cord plug is suited for use on No. 20, No. 18, and No. 16 AWG flat SPT cord types. It may also be used on 2-wire round cord up to 0.25 inches in diameter, including No. 18 SV and SVT cord. Typical applications include small appliance power cords, lamp cords, and other light-duty replacement wiring tasks in residential or light commercial settings where frequent connect-disconnect cycles are part of normal use.

Key Features

• Built-in clamp-tight strain relief protects cord terminations during repeated plug-in cycles
• NEMA 1-15P blade configuration for standard 2-wire ungrounded receptacle fit
• Rated 15 amps at 125 volts for light-duty appliance use
• Compatible with No. 20, 18, and 16 AWG flat SPT cord types
• Accepts 2-wire round cord up to 0.25 inches in diameter (No. 18 SV and SVT)
• UL listed thermoplastic construction

Compatibility

Compatible with No. 20, No. 18, and No. 16 AWG flat SPT cord, and 2-wire round cord up to 0.25 inches in diameter including No. 18 SV and SVT cord types.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and applicable local codes. Disconnect and de-energize the cord assembly before disassembling or terminating the plug. Follow the plug body markings and manufacturer instructions for correct conductor seating and strain relief clamping. Do not exceed the rated 15A/125V capacity of this device.
