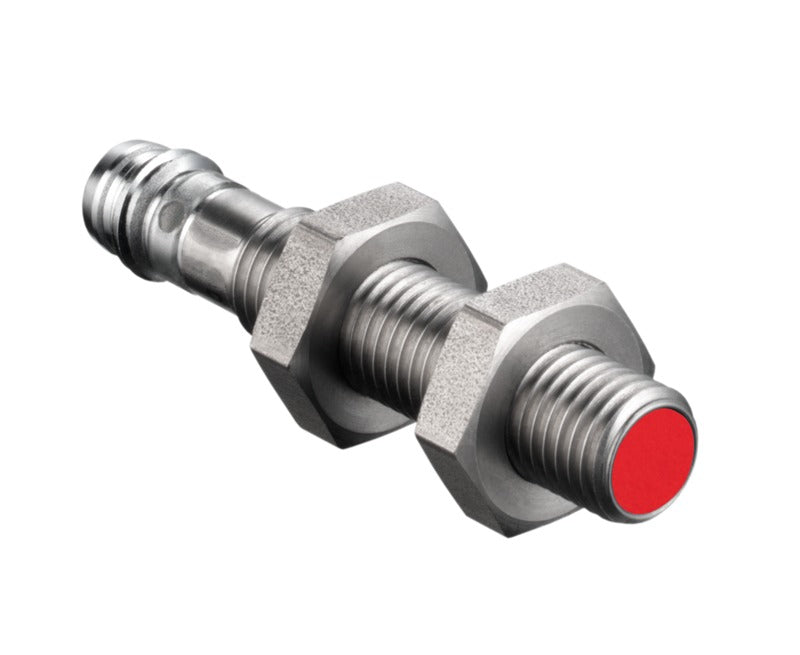

Leuze 50109654 Is 208Mm/4Nc-2E0-S8.3 Inductive Switch (8 mm x 45 mm)

Product Description

The Leuze 50109654 Is 208Mm/4Nc-2E0-S8.3 is an inductive switch with a cylindrical design. With a diameter of just 8 mm, this small standard sensor can be custom-integrated in applications. It has a typ. operating range limit Sn of 2 mm and an operating range Sa of 0 ... 1.6 mm. The switch operates on a supply voltage of 10 ... 30 V DC.

• Small standard sensor can be custom-integrated in applications.
• Large scanning ranges allow you to choose a smaller construction and thus save space and costs for the mechanical machine parts
• Sensor can be mounted at a greater distance from moving parts helping to avoid damage and ensures the machine availability
• High sensitivity of the sensors makes them the inexpensive solution for special applications, e.g. for close-range detection of small parts

Product Highlights

The Leuze inductive switch is ideal for applications needing custom integration and high sensitivity.

Product Information

Standard Information

• Brand: Leuze
• Manufacturer Part Number: 50109654
• Country of Origin: Germany

Technical Specifications

• Series: 208
• Type. operating range limit Sn: 2 mm
• Operating range Sa: 0 ... 1.6 mm
• MTTF: 900 years
• Protective circuit: Inductive protection, Polarity reversal protection, Short circuit protected
• Supply voltage UB: 10 ... 30 V, DC
• Residual ripple: 0 ... 20 %, From UB
• Open-circuit current: 0 ... 10 mA
• Temperature drift, max. (in % of Sr): 10 %, Over the entire operating temperature range
• Repeatability, max. (in % of Sr): 5 %, For UB = 20 30 V DC, ambient temperature Ta = 23 °C ± 5 °C
• Switching hysteresis: 10 %
• Number of digital switching outputs: 1 Piece(s)
• Voltage type: DC
• Switching current, max.: 200 mA
• Residual current, max.: 0.1 mA
• Voltage drop: ≤ 2 V
• Switching element: Transistor, PNP
• Switching principle: NC (normally closed)
• Switching frequency: 5,000 Hz
• Readiness delay: 32 ms
• Number of connections: 1 Piece(s)
• Function: Signal OUT, Voltage supply
• Type of connection: Connector
• Thread size: M8 x 1 mm
• Type: Male
• Material: Stainless steel
• No. of pins: 3 -pin
• Encoding: A-coded

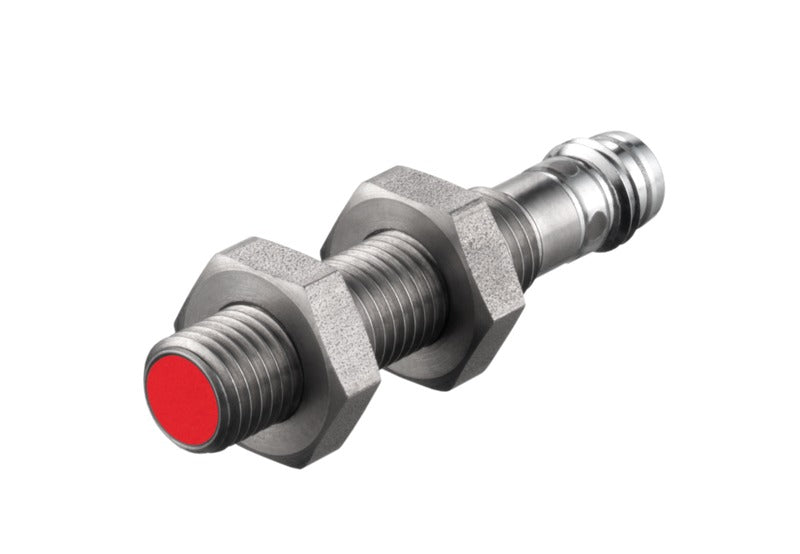

• Design: Cylindrical

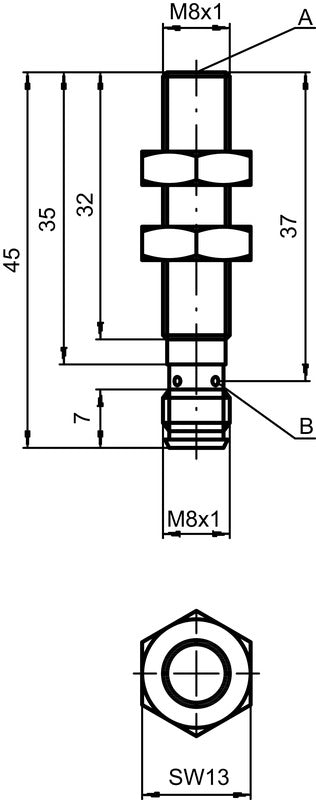

• Dimension ( Ø x L): 8 mm x 45 mm
• Type of installation: Embedded/flush
• Housing material: Stainless steel
• Sensing face material: Plastic, Polyamide (PA 12)
• Net weight: 13 g
• Housing color: Red, RAL 3000, Silver
• Type of fastening: Mounting thread, Via optional mounting device
• Standard measuring plate: 8 x 8 mm², Fe360
• Type of display: LED
• Number of LEDs: 1 Piece(s)
• Ambient temperature, operation: -25 ... 70 °C
• Ambient temperature, storage: -25 ... 70 °C
• Degree of protection: IP 67
• Protection class: III
• Approvals: c UL US
• Test procedure for EMC in accordance with standard: IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4
• Standards applied: IEC 60947-5-2
• Aluminum: 0.3
• Stainless steel: 0.7
• Copper: 0.3
• Brass: 0.45
• Fe360 steel: 1
• Customs tariff number: 85365019
• ECLASS 5.1.4: 27270101
• ECLASS 8.0: 27270101
• ECLASS 9.0: 27270101
• ECLASS 10.0: 27270101
• ECLASS 11.0: 27270101
• ECLASS 12.0: 27274001
• ECLASS 13.0: 27274001
• ECLASS 14.0: 27274001
• ECLASS 15.0: 27274001
• ECLASS 16.0: 27274001
• ETIM 5.0: EC002714
• ETIM 6.0: EC002714
• ETIM 7.0: EC002714
• ETIM 8.0: EC002714
• ETIM 9.0: EC002714
• ETIM 10.0: EC002714
• UNSPSC 26.08: 39122230
