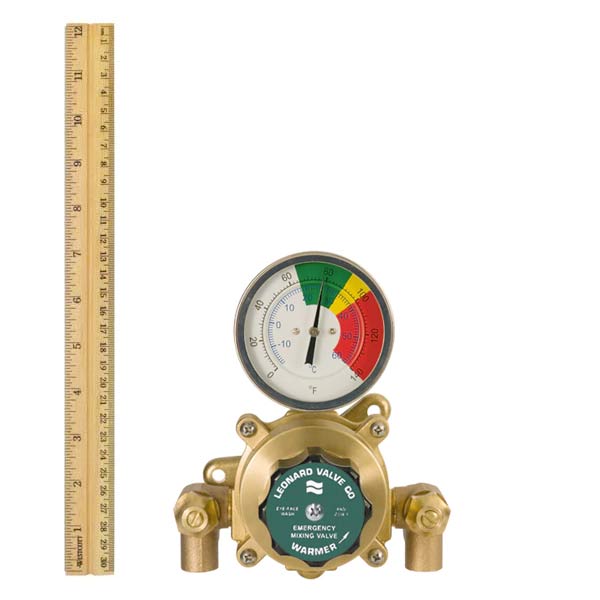

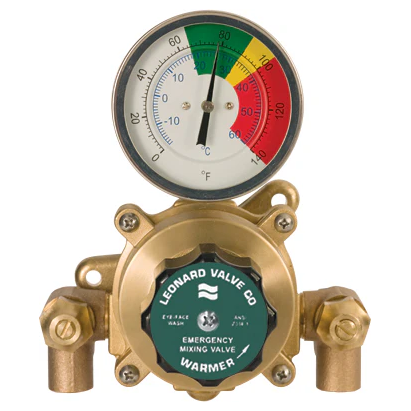

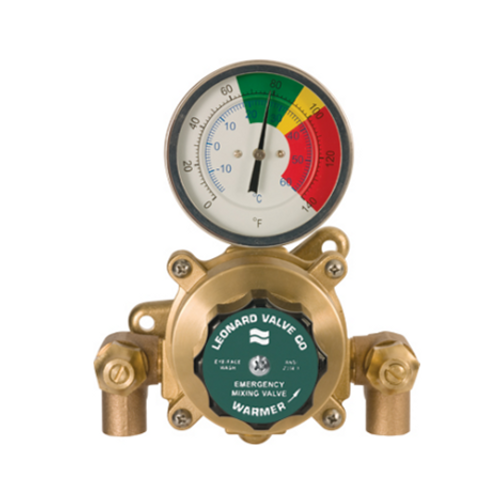

LEONARD VALVE TA-300-LF-CP Lf Single Eye/Face Wash

Product Description

The LEONARD VALVE TA-300-LF-CP Lf Single Eye/Face Wash provides safe and reliable mixing of hot and cold water for emergency eyewash applications.

• Features ECO-MIX DURA-trol solid bimetal thermostat
• Includes adjustable high temperature limit stop
• Designed with full one half inch top or bottom inlets

Product Highlights

This valve maintains the appropriate temperature to ensure the safety of users during an emergency.

Product Information

Standard Information

• Brand: LEONARD VALVE
• MPN: TA-300-LF-CP

Technical Specifications

• Inlets: 1/2 inches
• Maximum Flow (GPM): 10
• Minimum Flow (GPM): 2
• Outlet: 1/2 inches
• Overall Depth: 5 inches
• Overall Height: 7 inches
• Overall Width: 7 inches
• ASSE Certified Lead Free: ASSE 1071
• CSA Certified: CP
• Maximum Supply Temperature: 180 °F (82 °C)
• Maximum Supply Pressure: 125 PSI (8.6 Bar)
• Item: Emergency Mixing Valve
• For Use With: Eyewash
• Inlet Size: 1/2 in
• Outlet Size: 1/2 in
• Body Material: Bronze
• Flow Rate: 2 to 9 GPM
• Inlet Type: Sweat
• Outlet Type: Threaded
• Temp. Range: 60 Degrees to 90 Degrees F
• Max. Pressure: 125 PSI
• Standards: ANSI Z358.1, ASSE 1071, CSA Certified
• Material: Brass, Bronze, Stainless Steel
