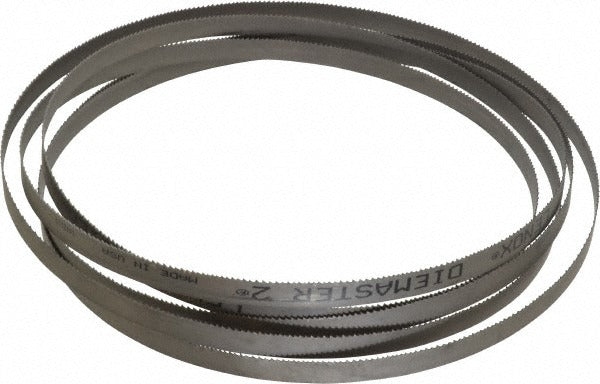

Lenox 80273D2B123810 Bandsaw Blade 8-12 Tpi Bi-metal

Product Description

The LENOX 80273D2B123810 is a welded bi-metal bandsaw blade designed for demanding cutting applications across a wide range of materials. Measuring 12 feet 6 inches in length and 0.5 inches wide, it runs at a variable pitch of 8 to 12 TPI to reduce vibration and improve cut quality. The blade body is spring steel and the teeth are High Speed Steel M42, a cobalt-enhanced grade that holds its edge under heat and stress. A Vari-Raker tooth set and milled tooth form deliver consistent chip clearance on both thin and thick cross-sections. This blade is installed by metalworking professionals and industrial maintenance technicians using horizontal or vertical bandsaw equipment.

This blade suits a broad range of production and maintenance cutting scenarios, including structural fabrication shops, tool rooms, and general metalworking operations. Its variable pitch and M42 tooth material make it particularly effective on interrupted cuts and multi-layer material stacks. The Classic Series designation from LENOX indicates a standard-production blade intended for regular-duty replacement cycles. Compatible material applications include alloy steel, carbon steel, stainless steel, structural steel, tool steel, aluminum, other non-ferrous metals, and wood.

Key Features

• Bi-metal construction with M42 High Speed Steel teeth for extended tooth life on hard materials
• Variable 8 to 12 TPI pitch reduces harmonic vibration and improves surface finish
• Spring steel back provides flexibility and fatigue resistance during continuous cuts
• Vari-Raker tooth set promotes efficient chip evacuation and reduces blade loading
• Contour cutting capable, allowing curved and radius cuts in addition to straight passes
• 0.043 inch kerf width minimizes material waste per cut

Compatibility

Designed as a welded-loop replacement blade for horizontal and vertical bandsaws that accept a 12 feet 6 inch blade length with a 0.5 inch width. Suitable for cutting alloy steel, aluminum, non-ferrous metals, carbon steel, stainless steel, structural steel, tool steel, and wood.

Installation Notes

Bandsaw blade replacement should be performed by a qualified technician with the machine fully de-energized and locked out per OSHA lockout/tagout procedures. Verify blade tension, wheel tracking, and guide bearing clearance according to the bandsaw manufacturer specifications before resuming operation. Wear cut-resistant gloves when handling the coiled or uncoiled blade. Do not exceed the maximum blade speed rating of the host machine.
