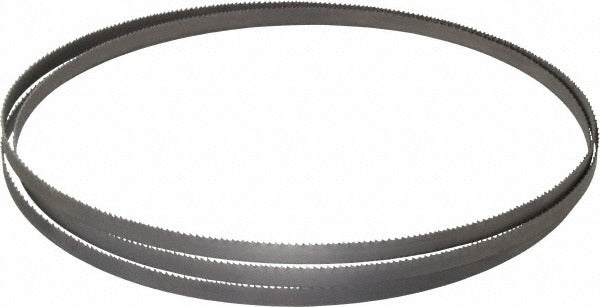

Lenox 80058D2B72360 Bandsaw Blade 93 in 10-14 Tpi Bi-metal

Product Description

The LENOX 80058D2B72360 is a welded bi-metal bandsaw blade built for continuous cutting on metal-cutting bandsaws in trade and industrial environments. It measures 93 inches long and 3/8 inch wide with a 0.025-inch blade thickness. The variable pitch tooth form runs 10 to 14 TPI, reducing vibration and harmonic chatter during the cut. The cutting edge combines high speed steel M42-grade teeth friction-welded to a spring steel back, giving the blade both edge retention and flex fatigue resistance. Licensed metalworking shops, fabricators, and HVAC sheet metal trades are the primary installers of this blade type.

This blade is suited for contour cutting applications on vertical or horizontal bandsaw machines. It handles a broad range of materials including alloy steel, carbon steel, stainless steel, structural steel, tool steel, aluminum, and non-ferrous metals, as well as wood. The variable pitch and Vari-Raker tooth set make it a practical choice when cutting mixed-thickness stock or structural profiles where a fixed-pitch blade would chatter or bind. It is sold individually and is part of the LENOX Classic series.

Key Features

• Variable 10 to 14 TPI pitch reduces vibration and improves cut quality across mixed material thicknesses
• M42 high speed steel teeth provide elevated heat and wear resistance for cutting hard alloys and stainless steel
• Spring steel back construction resists flex fatigue during contour and radius cuts
• Vari-Raker tooth set with no rake angle suits both ferrous and non-ferrous metals
• 0.043-inch kerf width minimizes material loss per cut
• Contour cutting rated for use on vertical bandsaw configurations

Compatibility

Designed as an OEM-style replacement or upgrade blade for bandsaw machines that accept a 93-inch by 3/8-inch welded blade. Confirm wheel diameter and blade guide clearance on the target machine before installation.

Installation Notes

Bandsaw blade installation should be performed by a qualified technician familiar with the specific machine. Disconnect and lock out power to the bandsaw before removing the old blade or installing the new one. Verify blade tension according to the machine manufacturer's specification and confirm blade tracking before resuming cuts. Wear cut-resistant gloves when handling the blade, as the coiled form can spring unexpectedly during unpackaging.
