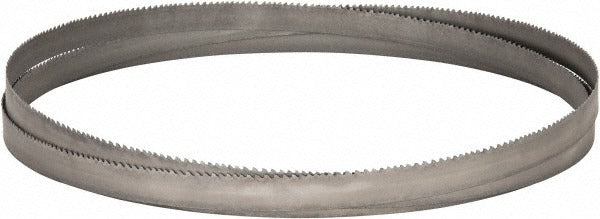

Lenox 27719RPB144420 Welded Bandsaw Blade 4-6 Tpi

Product Description

The LENOX 27719RPB144420 is a welded bi-metal bandsaw blade engineered for demanding metal-cutting applications in professional shop and industrial environments. The blade measures 14 feet 6 inches in length, 1 inch in width, and 0.035 inches thick, with a variable pitch tooth pattern ranging from 4 to 6 TPI. The M42 high-speed steel tooth material and spring steel back deliver heat resistance and flex durability under continuous cutting loads. A Vari-Set tooth set and positive rake angle help reduce vibration and improve chip evacuation on a wide range of material cross-sections.

This blade is suited for production bandsaw operations cutting ferrous and non-ferrous metals, structural sections, and solid bar stock. The variable pitch design reduces harmonic resonance during cuts, making it a practical choice for shops handling mixed material profiles. Installation is performed on horizontal and vertical band saws in fabrication, maintenance, and machine shop settings. The RX Plus series is positioned for high-cycle production use where blade life and consistent cut quality are priorities.

Key Features

• Bi-metal construction with M42 high-speed steel teeth bonded to a spring steel back for extended blade life
• Variable pitch 4 to 6 TPI with Vari-Set tooth set to minimize vibration and noise during cutting
• Positive rake angle promotes aggressive, efficient chip removal
• Toothed, milled, and variable cutting edge style supports contour and straight cuts
• Welded construction provides a consistent, fatigue-resistant joint for continuous bandsaw operation
• 0.058-inch kerf width minimizes material loss per cut

Compatibility

Designed as a replacement or production-supply blade for bandsaws accepting a 14-foot 6-inch blade length with a 1-inch blade width and 0.035-inch gauge.

Installation Notes

Blade installation and tensioning should be performed by a qualified machinist or maintenance technician with the bandsaw fully de-energized and locked out per applicable OSHA lockout/tagout procedures. Verify wheel diameter, blade guide clearance, and tension settings on the saw match the blade width and gauge before operation. Wear cut-resistant gloves when handling the coiled blade. Do not exceed the blade speed rating of the host machine for the material being cut.
