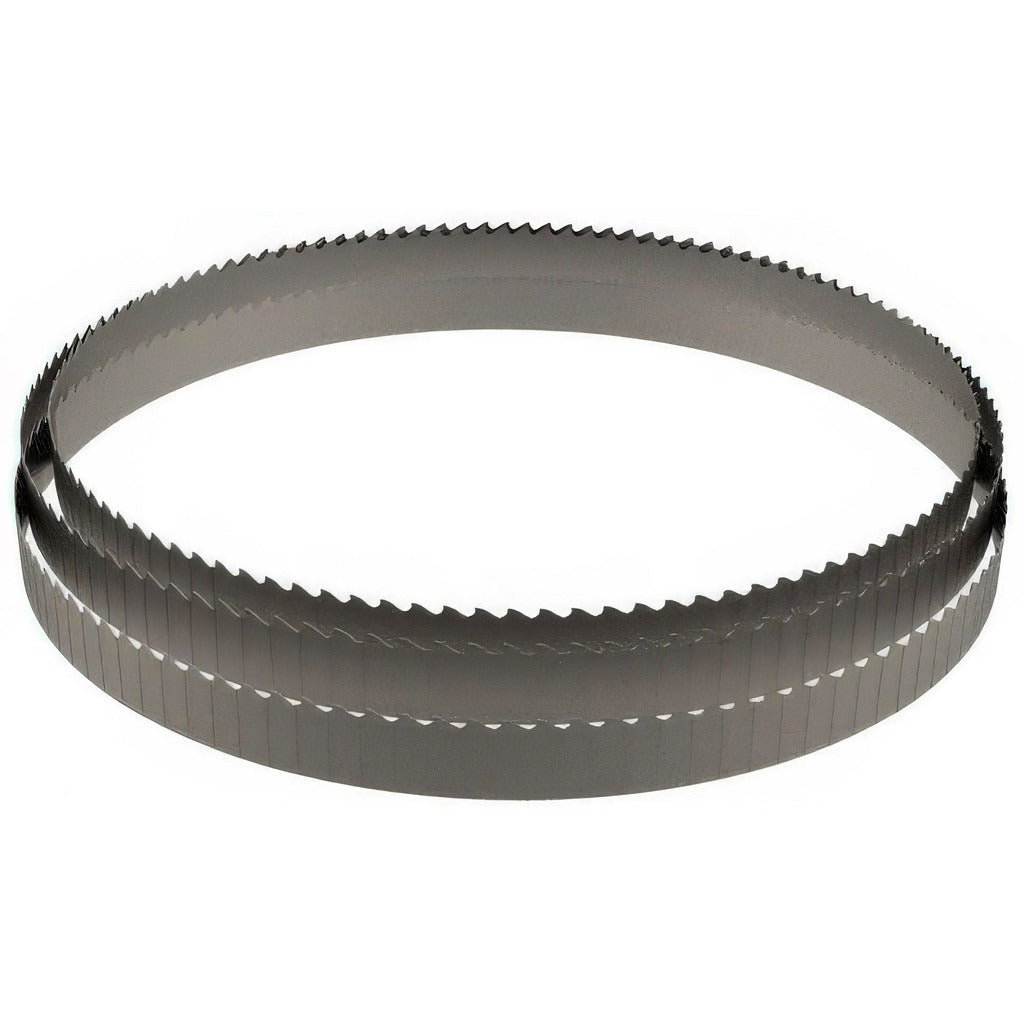

Lenox 13491RPB237290 Welded Bandsaw Blade 2 in 3-4 Tpi

Product Description

The LENOX 13491RPB237290 is a welded bi-metal bandsaw blade built for demanding cutting applications in industrial and fabrication environments. Measuring 23 feet 11 inches in length and 2 inches wide with a 0.063-inch thickness, this blade is engineered for large-capacity horizontal or vertical bandsaw machines. The variable 3 to 4 TPI pitch pattern helps reduce harmonic vibration and heat buildup during cuts, extending blade life across a range of ferrous and non-ferrous stock. Licensed fabricators, metalworking shops, and maintenance trades install this blade as a direct replacement or production consumable on compatible saws.

This blade is suited for production metal-cutting operations where consistent, accurate cuts on structural shapes, bar stock, and tubing are required. The RX Plus series designation indicates a high-performance bi-metal construction using an M42 high speed steel tooth edge bonded to a spring steel back. The variable tooth form and Vari-Set tooth set are designed to handle interrupted cuts and varying cross-sections. The milled, toothed cutting edge provides a positive rake angle for aggressive material removal with controlled kerf width of 0.099 inches.

Key Features

• Bi-metal construction: M42 high speed steel teeth on a flexible spring steel back for durability and resistance to breakage
• Variable 3 to 4 TPI pitch reduces vibration and chatter during cutting
• Vari-Set tooth set with positive rake angle improves chip clearance and cut quality
• 0.099-inch kerf width minimizes material waste per cut
• Welded construction for seamless, continuous blade loop integrity
• RX Plus series rated for high-production metal cutting environments

Compatibility

Designed for large-format bandsaw machines accepting a 2-inch wide blade with a 23-foot 11-inch loop length. Verify your saw's wheel diameter, blade guide spread, and tension capacity before installation.

Installation Notes

Blade installation should be performed by qualified personnel familiar with bandsaw equipment. Power down and lockout the saw before removing the existing blade or installing a new one. Wear cut-resistant gloves when handling uncoiled bandsaw blades. Confirm blade tension, tracking alignment, and guide bearing clearance per the saw manufacturer's service documentation before resuming operation.
