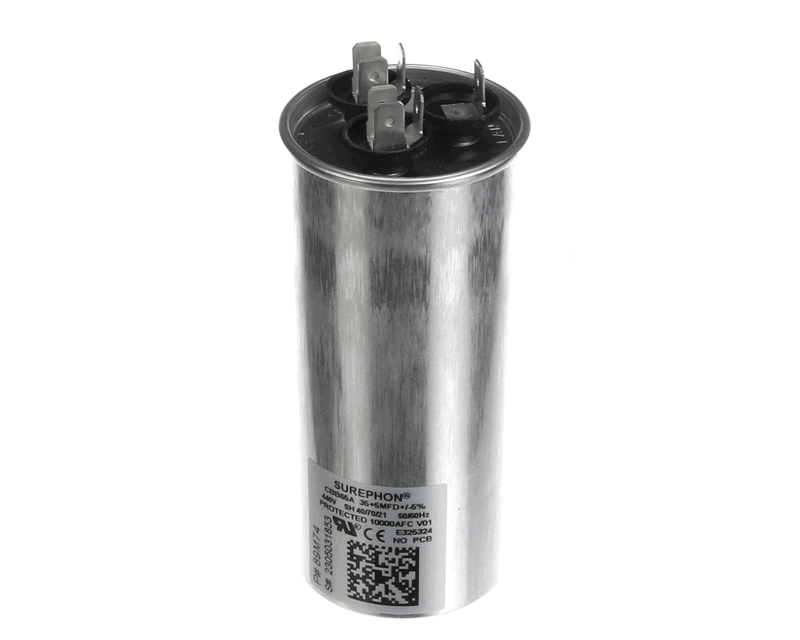

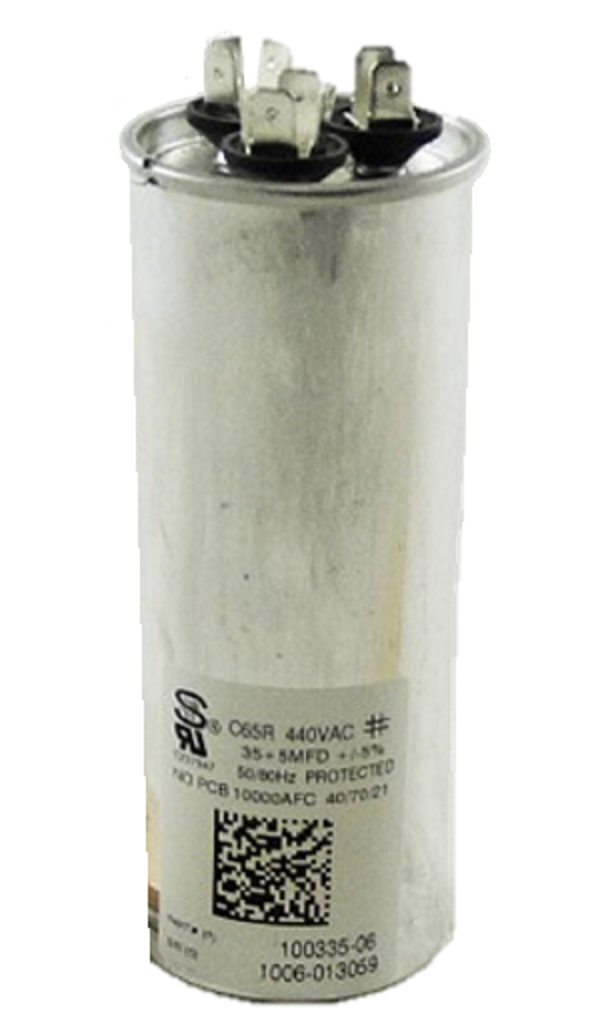

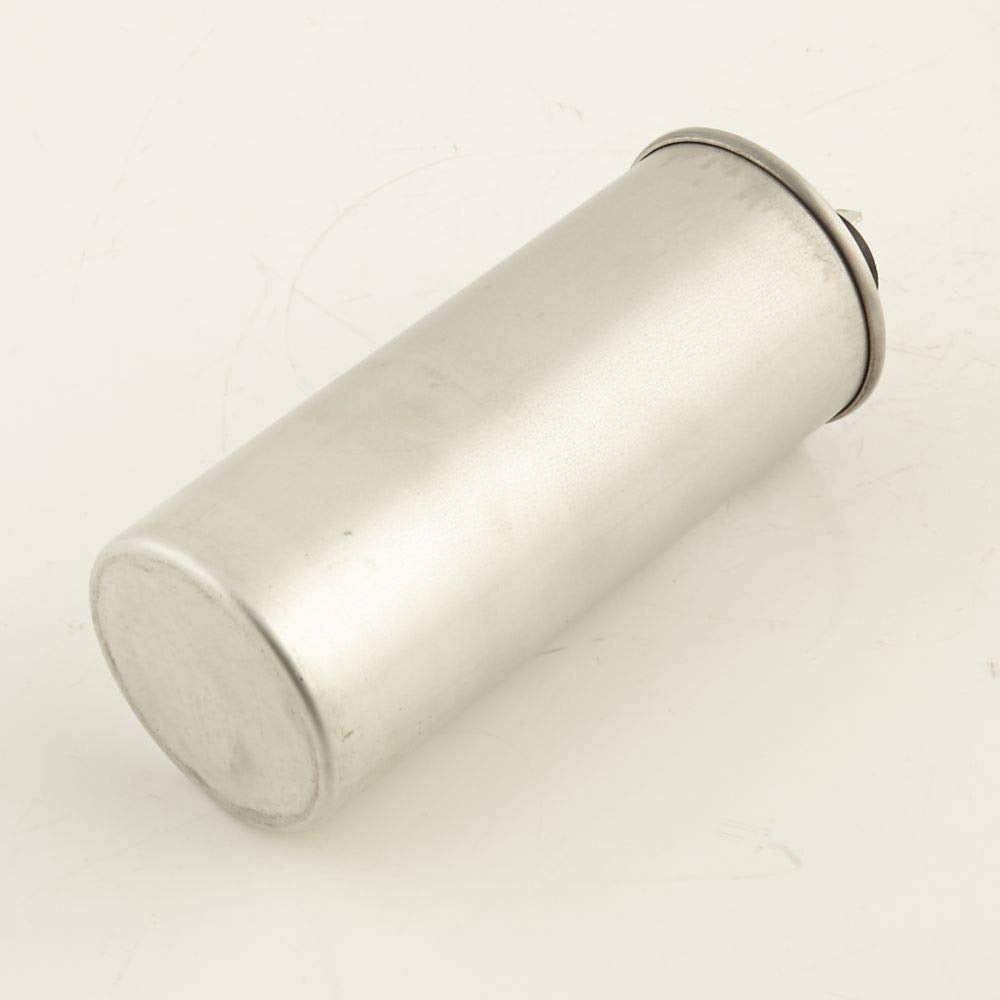

Lennox 89M74 Capacitor 35/5 MFD 440V (Round) 100335-06

Product Description

The Lennox 89M74 is a dual run capacitor rated 35 + 5 microfarads (MFD) at 440 VAC for HVAC motor-run applications. It is a round, metallized polypropylene capacitor designed to support compressors and condenser fan motors, with quick-connect C/HERM/FAN terminals and 50/60 Hz compatibility. Physical dimensions are approximately 2.2 x 5.7 x 2.3 inches and weight is about 1.0 lb; temperature rating -40 to 70 C.

• Dual capacitance: 35 + 5 microfarads (MFD) for compressor and fan support
• Rated voltage 440 VAC, frequency 50/60 Hz; metallized polypropylene dielectric
• Round motor-run design with quick-connect terminals (C, HERM, FAN); temperature rating -40 to 70 C

Product Highlights

OEM Lennox dual run capacitor, 35/5 MFD at 440 VAC, round housing with quick-connect C/HERM/FAN terminals

Product Information

Standard Information

• Brand: LENNOX
• Manufacturer Part Number: 89M74
