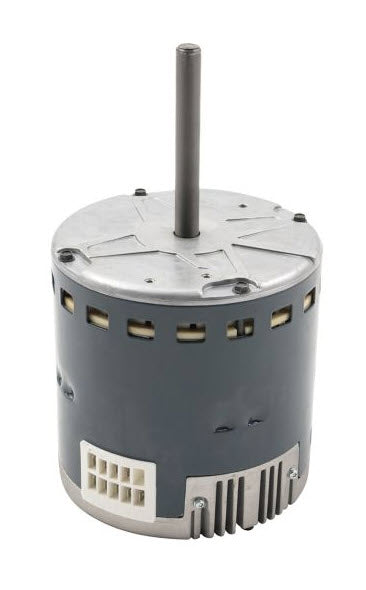

Lennox 25F03 Constant Torque Blower Motor 1/2 Hp 1250 Variable 115/208-230 Vac 48 Fr 107602-01

Product Description

The LENNOX 25F03 is an OEM constant torque blower motor, also known as 107602-01, designed for HVAC systems. This 1/2 Hp motor operates at a variable speed of 1250 RPM and is compatible with 115/208-230 VAC 60/50 Hz power supplies. Its 48 Fr frame, horizontal mounting, and belly band type ensure broad applicability in various heating and cooling units, providing reliable air movement. It features ECM - Programmed technology and ball bearings.

• Constant Torque Blower Motor for consistent performance.
• 1/2 Hp power rating with 1250 variable speed operation.
• Compatible with 115/208-230 VAC 60/50 Hz electrical systems.

Product Highlights

OEM replacement motor for HVAC blower applications, featuring variable speed, ECM technology, and robust construction.

Product Information

Standard Information

• Brand: LENNOX
• Manufacturer Part Number: 25F03

Technical Specifications

• Brand: Lennox
• MPN: 25F03
• Replacement MPN: 107602-01
• Motor Type: Constant Torque Blower Motor
• Horsepower: 1/2 Hp
• Speed: 1250 Variable
• Input Voltage: 115/208-230 VAC 60/50 Hz
• Frame Size: 48 Fr
• Motor Mounting Position: Horizontal
• Motor Mounting Type: Belly Band
• Shaft Size: 1/2 x 4.5 Inch
• Rotation: Reversible
• Bearing Type: Ball
• Motor Technology: ECM - Programmed
