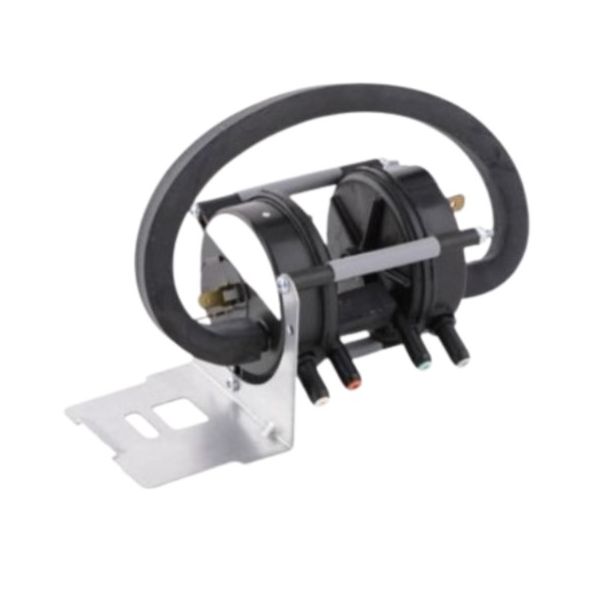

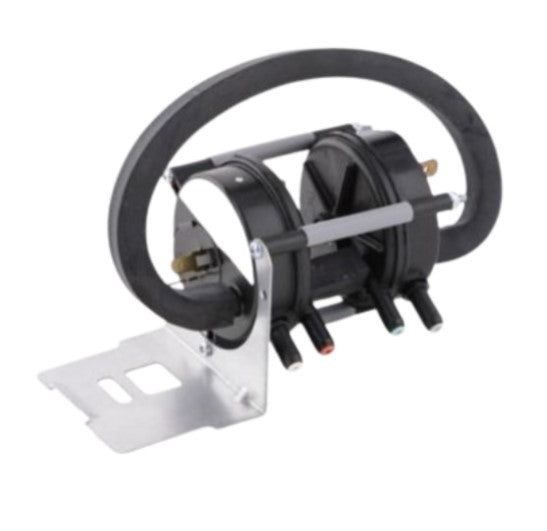

Lennox 14A54 2-Stage Pressure Switch

Product Description

The Lennox 14A54 is a 2-stage pressure switch used to monitor and control pressure levels in HVAC systems. It activates or deactivates HVAC equipment based on the detected pressure levels to ensure optimal performance.

• Type: 2-Stage Pressure Switch
• Contact Rating: 5 Amp Resistive at 24 VAC
• Configuration: SPST-N.O. Contact

Product Highlights

This pressure switch is essential for maintaining proper operation in HVAC systems by using two set points: a high set point at zero point seventy-five inches W.C. and a low set point at zero point forty-five inches W.C.

Product Information

Standard Information

• Brand: Lennox
• Part Number: 14A54

Technical Specifications

• Pressure Settings: Set Point High 0.75 W.C.; Set Point Low 0.45 W.C.
• Contact Rating: 5 Amp Resistive at 24 VAC
• Configuration: SPST-N.O. Contact
• Length: 1 inch
• Width: 1 inch
• Height: 1 inch
• UPC: 66255148818
• Units: Each
